Description

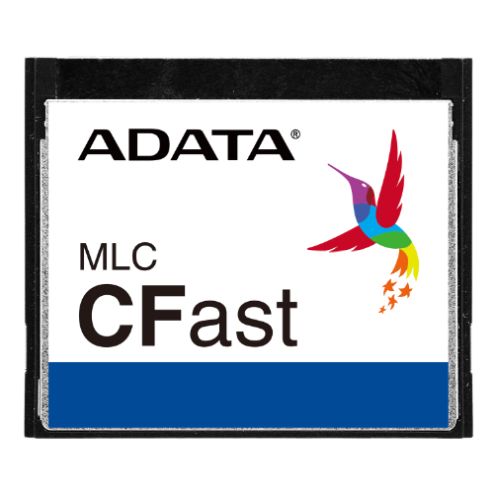

ADATA ISC3E MLC CFast cards combine the form-factor of a CF card with the high-speed SATA interface for both high reliability and secure operation
The product provides industrial applications with better, more convenient performance. The industrialgrade extended temperature range of -40°C to +85°C is suitable for high-end instruments and equipment that must operate in harsh environments. The ADATA CFast card supports a range of technology, including error correcting code (ECC), which ensures the integrity of data transfers by automatically detecting and correcting errors, and Wear Leveling technology, which ensures data is written evenly across all sectors, extending the life of the memory card.
- Compatible with CFast 2.0 specifications
- Built-in Error Correcting Code (ECC)
- Low power consumption: 1.1W
- Supports ECC and Wear Leveling
- S.M.A.R.T. feature supported
- NCQ Command set supported
Description
Specification
- Type: Flash Memory Card
- Form Factor: CFast
- Storage Capacity: 32GB
- #Hide#Max Read: 500 MB/s
- Adapters: –
- Data Transfer Rate: Read (Max.): 500 MB/s
Write (Max.): 300 MB/s - Supply Voltage: 3.3V
- Dimensions: 36.4 x 42.8 x 3.6mm
- Additional Features: “Interface: SATA III 6.0Gbps
Form Factor: 7+17 pin SATA
Flash Type: MLC
Operating Temperature (Industrial): -40ºC to 85ºC
Operating Humidity: 5%-95% RH non-condensing
Power Consumption (Max.): 1.1W
MTBF (Est.): >2,000,000 hours
Shock Resistance: 1500G/0.5ms, Half Sine Wave
Vibration Resistance: 20G (10-2000Hz)
ECC
Flash Management
Wear Leveling
H/W Power Detector and Flash Protection
S.M.A.R.T.” - Package Weight: 0.0200 kg
- Warranty: Lifetime
