Description

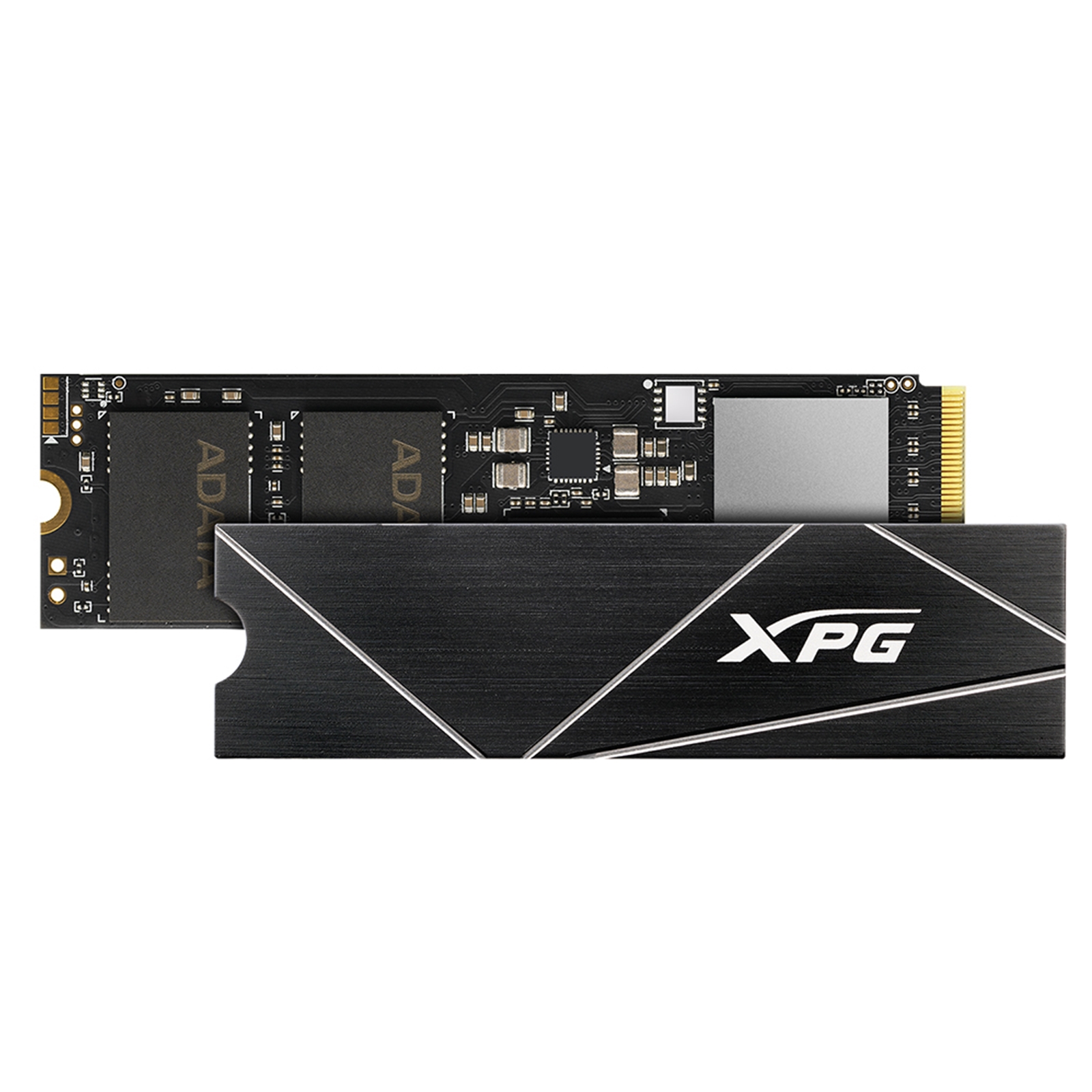

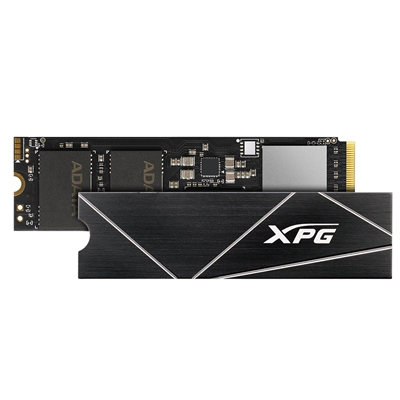

Enjoy next-gen performance with the XPG GAMMIX S70 BLADE PCIe Gen4x4 M.2 2280 solid state drive (SSD). Sporting the latest PCIe Gen4x4 interface and a host of other capabilities, this SSD is capable of reaching blazing-fast read/write speeds of up to 7,400/6,800MB per second.

Features
– R/W speed up to 7,400/6,800MB/s for PC/laptop
– Ultra-fast PCIe Gen4 x4 interface
– Compliant with NVMe 1.4
– Work with PS5
– Read speed up to 6,100MB/s for PS5
– High-temperature resistant aluminum heat sink which is able to reduce temperatures by up to 20%
– Capacity up to 4TB
– SLC Caching and DRAM cache buffer
– Advanced LDPC ECC Technology
– E2E Data Protection and RAID Engine
– AES 256-bit encryption support
– Compact M.2 2280 form factor – ideal for gaming and high-end desktops

Specifications

Capacity
1TB

Weight
10g / 0.35oz (with heat sink), 7g / 0.24oz (without heat sink)

NAND Flash
3D NAND

Interface
PCIe Gen4 x4

Form Factor
M.2 2280

Dimensions (L x W x T)
80 x 22 x 4.3mm (with heatsink), 80 x 22 x 3.3mm (without heatsink)

Controller
IG5236A1

Sequential read/write (Max.)
Write: 5500MB/s
Read: 7400MB/s

Terabytes Written (TBW)(Max. capacity)
740TB

MTBF
2,000,000 hours

4K random read/write IOPS (Max.)
740K/740K

Warranty
5-year limited

Operating Temperature
0C~70C

Certifications
CE, FCC, BSMI, KC, Morocco, EAC, RCM, UKCA, RoHS

Storage Temperature
-40C~85C

Shock Resistance
1500G/0.5ms
