Description

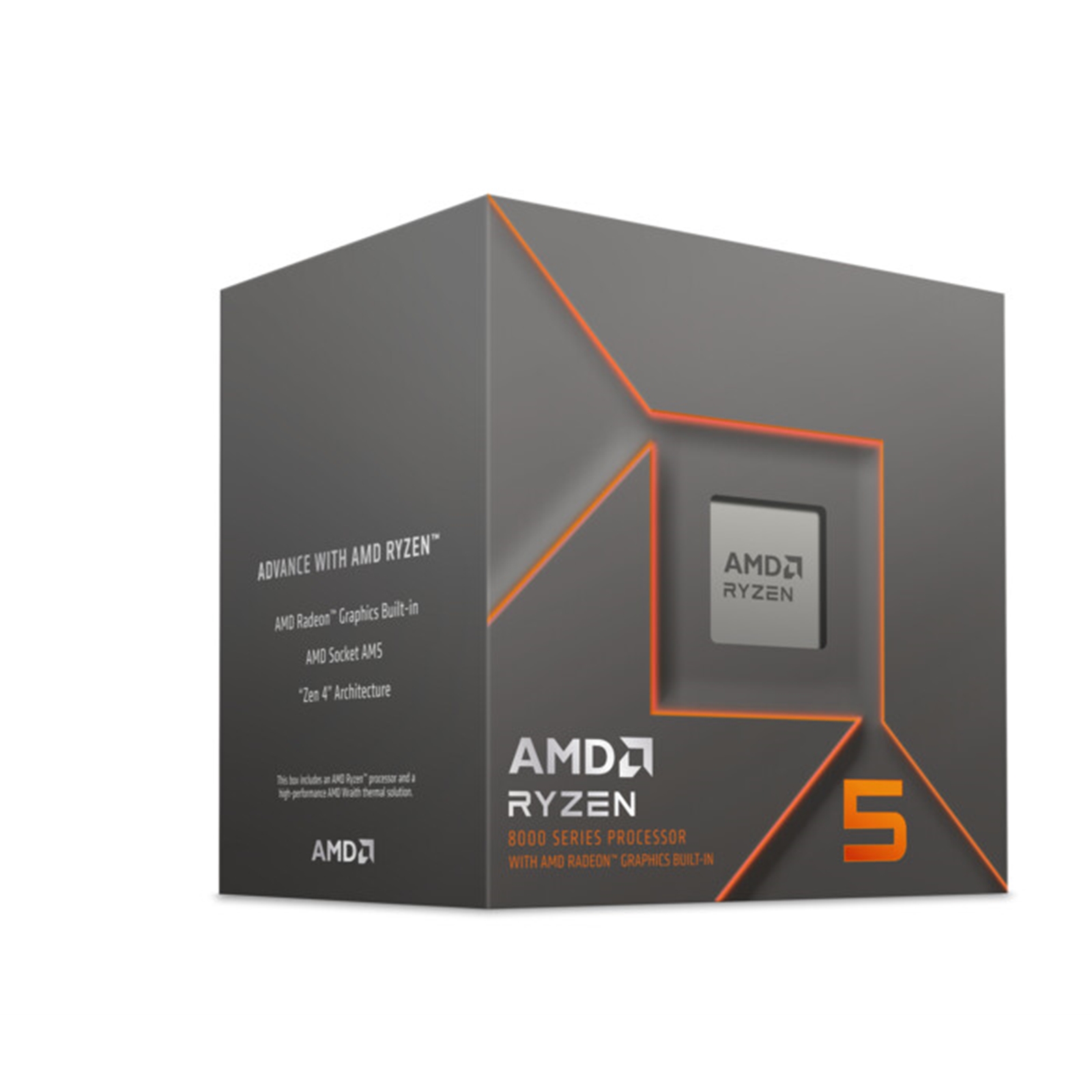

Performance Redefined: AMD Ryzen 5 8500G 3.7GHz 6 Core AM5 Processor
Embark on a journey of superior performance with the AMD Ryzen 5 8500G processor. Featuring a robust 3.7GHz base clock and a dynamic 6-core configuration, this AM5 processor is designed to elevate your computing experience. With 12 threads and an impressive 5.0GHz boost clock, the Ryzen 5 8500G ensures responsive multitasking for seamless productivity.
Effortless Multitasking: 12 Threads and 5.0GHz Boost
Experience unparalleled efficiency with 12 threads that effortlessly handle a variety of tasks, ensuring a smooth and responsive computing experience. The AMD Ryzen 5 8500G’s impressive 5.0GHz boost clock adds an extra layer of speed, making it ideal for handling demanding applications, content creation, and multitasking with ease.
Immersive Visuals: Radeon Graphics for Exceptional Quality
Elevate your visual experience with the integrated Radeon Graphics. The AMD Ryzen 5 8500G processor delivers exceptional graphics performance, eliminating the need for a separate graphics card. Immerse yourself in high-quality visuals, whether you’re gaming, streaming, or engaging in creative projects.
Specifications
General Specifications
Platform:
Desktop
Product Family:
AMD Ryzen™ Processors
Product Line:
AMD Ryzen™ 5 8000 G-Series Desktop Processors with Radeon™ Graphics
AMD PRO Technologies:
No
Consumer Use:
Yes
Regional Availability:
Global
Former Codename:
“Phoenix”
Architecture:
2 x “Zen4”, 4 x “Zen4c”
# of CPU Cores:
6
Multithreading (SMT):
Yes
# of Threads:
12
Max. Boost Clock:
Up to 5.0GHz
Max Zen4c Clock:
Up to 3.7GHz
Base Clock:
3.5GHz
Zen4 Base Clock:
4.1GHz
Zen4c Base Clock:
3.2GHz
L2 Cache:
6MB
L3 Cache:
16MB
Default TDP:
65W
AMD Configurable TDP (cTDP):
45-65W
Processor Technology for CPU Cores:
TSMC 4nm FinFET
CPU Compute Die (CCD) Size:
137mm²
Package Die Count:
1
Unlocked for Overclocking:
Yes
AMD EXPO™ Memory Overclocking Technology:
Yes
Precision Boost Overdrive:
Yes
Curve Optimizer Voltage Offsets:
Yes
AMD Ryzen™ Master Support:
Yes
CPU Socket:
AM5
CPU Boost Technology:
Precision Boost 2
Instruction Set:
x86-64
Supported Extensions:
AES, AMD-V, AVX, AVX2, AVX512, FMA3, MMX(+), SHA, SSE, SSE2, SSE3, SSE4.1, SSE4.2, SSE4A, SSSE3, x86-64
Max. Operating Temperature (Tjmax):
95°C
OS Support:
Windows 11 – 64-Bit Edition
Windows 10 – 64-Bit Edition
RHEL x86 64-Bit
Ubuntu x86 64-Bit
*Operating System (OS) support will vary by manufacturer.
Connectivity
Native USB 4 (40Gbps) Ports:
2
Native USB 3.2 Gen 2 (10Gbps) Ports:
2
Native USB 2.0 (480Mbps) Ports:
1
PCI Express® Version:
PCIe® 4.0
Native PCIe® Lanes (Total/Usable):
14 / 10
NVMe Support:
Boot, RAID0, RAID1
System Memory Type:
DDR5
Memory Channels:
2
Max. Memory:
256GB
System Memory Subtype:
UDIMM
Max Memory Speed:
2x1R DDR5-5200
2x2R DDR5-5200
4X1R DDR5-3600
4x2R DDR5-3600
Graphics Capabilities
Integrated Graphics:
Yes
Graphics Model:
AMD Radeon™ 740M
Graphics Core Count:
4
Graphics Frequency:
2800 MHz
DirectX® Version:
12
DisplayPort™ Version:
2.1
DisplayPort Extensions:
HDR Metadata
Adaptive-Sync
UHBR10
DisplayPort Max Refresh Rates (SDR):
7680×4320 @ 60Hz
3840×2160 @ 240Hz
3440×1440 @ 360Hz
2560×1440 @ 480Hz
1920×1080 @ 600Hz
DisplayPort Max Refresh Rates (HDR):
7680×4320 @ 60Hz
3840×2160 @ 240Hz
3440×1440 @ 360Hz
2560×1440 @ 480Hz
1920×1080 @ 600Hz
HDMI® Version:
2.1
HDCP Version Supported:
2.3
USB Type-C® DisplayPort™ Alternate Mode:
Yes
Multi-Monitor Support:
Yes
Max Displays:
4
AMD FreeSync™:
Yes
Wireless Display:
Miracast
Max Video Encode Bandwidth (SDR):
1080p630 8bpc H.264
1440p373 8bpc H.264
2160p175 8bpc H.264
1080p630 8bpc H.265
1440p373 8bpc H.265
2160p175 8bpc H.265
4320p43 8bpc H.265
1080p864 8/10bpc AV1
1440p513 8/10bpc AV1
2160p240 8/10bpc AV1
4320p60 8/10bpc AV1
Max Video Decode Bandwidth:
1080p60 8bpc MPEG2
1080p60 8bpc VC1
1080p786 8/10bpc VP9
2160p196 8/10bpc VP9
4320p49 8/10bpc VP9
1080p1200 8bpc H.264
2160p300 8bpc H.264
4320p75 8bpc H.264
1080p786 8/10bpc H.265
2160p196 8/10bpc H.265
4320p49 8/10bpc H.265
1080p960 8/10bpc AV1
2160p240 8/10bpc AV1
4320p60 8/10bpc AV1
AMD SmartAccess Memory:
Yes
