Description

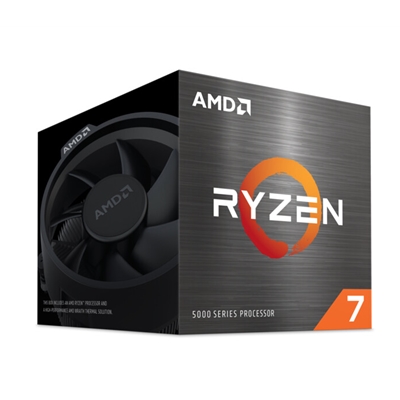

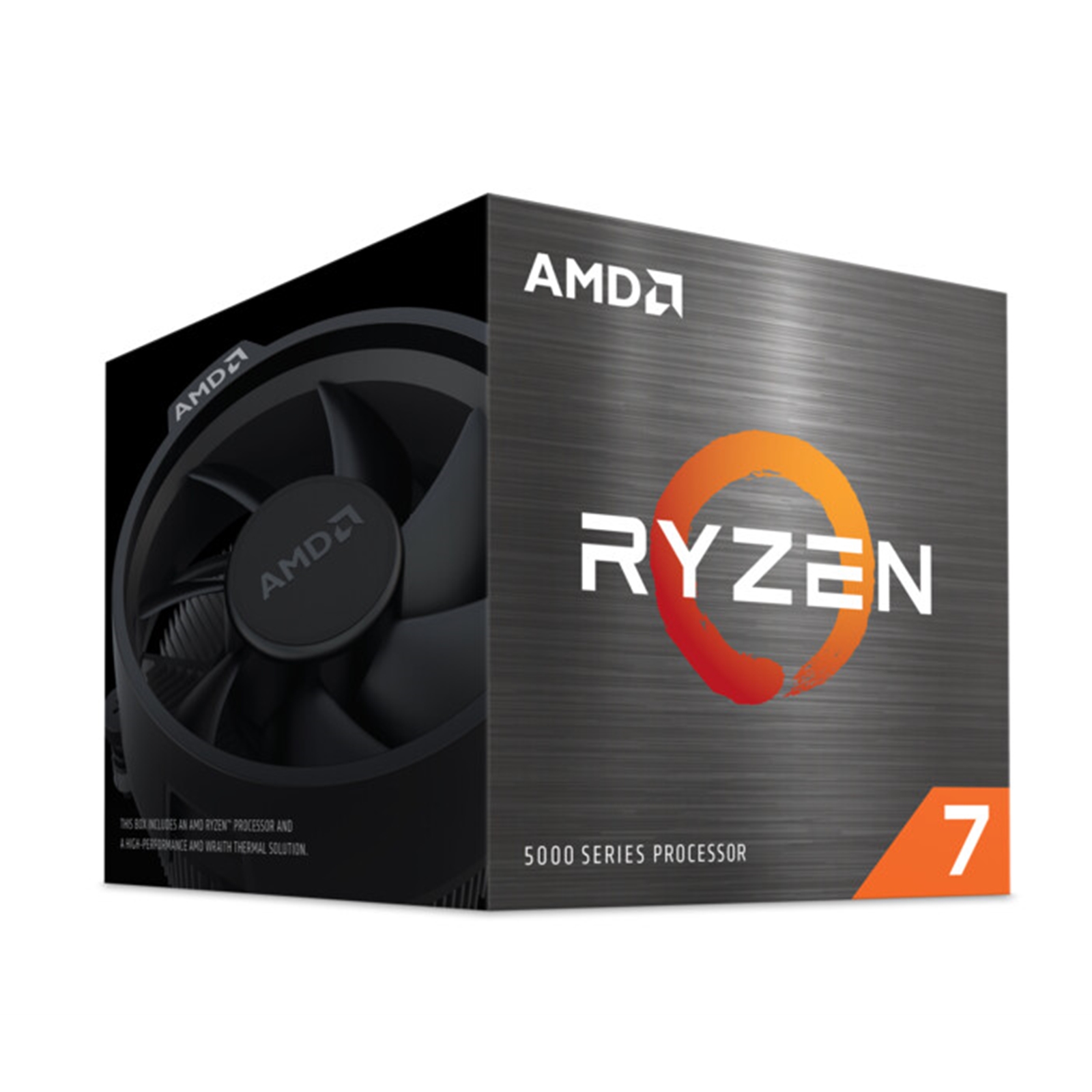

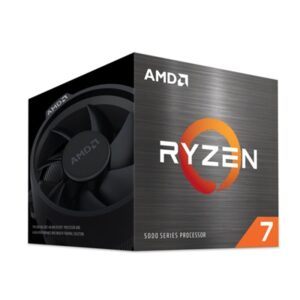

Experience Unmatched Power: AMD Ryzen 7 5700 3.7GHz 8 Core AM4 Processor
Unleash the full potential of your system with the AMD Ryzen 7 5700 processor. Featuring a robust 3.7GHz base clock and an impressive 8-core configuration, this AM4 processor is designed to redefine your computing experience. With an abundance of 16 threads and a rapid 4.6GHz boost clock, the Ryzen 7 5700 ensures a seamless multitasking experience and responsive computing power.

Effortless Multitasking: 16 Threads and 4.6GHz Boost
Master multitasking with ease as the AMD Ryzen 7 5700’s 16 threads efficiently handle a myriad of tasks. The rapid 4.6GHz boost clock adds an extra layer of speed, making it ideal for demanding applications, content creation, and smooth multitasking experiences.

Upgrade to the AMD Ryzen 7 5700 for a processor that delivers an optimal blend of power and efficiency. Crafted to meet the demands of modern computing, this processor promises a seamless and immersive user experience, setting new standards for high-performance computing.

Specifications

General Specifications

Platform:
Boxed Processor

Market Segment:
Mainstream Desktop

Product Family:
AMD Ryzen™ Processors

Product Line:
AMD Ryzen™ 7 Desktop Processors

Consumer Use:
Yes

Regional Availability:
Global, China, NA, EMEA, APJ, LATAM

Former Codename:
“Cezanne”

Architecture:
“Zen 3”

# of CPU Cores:
8

# of Threads:
16

Max. Boost Clock:
Up to 4.6GHz

Base Clock:
3.7GHz

L1 Cache:
512KB

L2 Cache:
4MB

L3 Cache:
16MB

Default TDP:
65W

AMD Configurable TDP (cTDP):
45-65W

Processor Technology for CPU Cores:
TSMC 7nm FinFET

CPU Compute Die (CCD) Size:
180mm²

Package Die Count:
1

Unlocked for Overclocking:
Yes

CPU Socket:
AM4

Socket Count:
1P

Supporting Chipsets:
X570
X470
X370
B550
B450
B350
A520

CPU Boost Technology:
Precision Boost 2

Instruction Set:
x86-64

Supported Extensions:
AES, AMD-V, AVX, AVX2, FMA3, MMX(+), SHA, SSE, SSE2, SSE3, SSE4.1, SSE4.2, SSE4A, SSSE3, x86-64

Thermal Solution (PIB):
AMD Wraith Stealth

Max. Operating Temperature (Tjmax):
95°C

Launch Date:
4/4/2022

*OS Support:
Windows 10 – 64-Bit Edition
RHEL x86 64-Bit
Ubuntu x86 64-Bit
*Operating System (OS) support will vary by manufacturer.

Connectivity

USB Type-C® Support:
Yes

Native USB 4 (40Gbps) Ports:
0

Native USB 3.2 Gen 2 (10Gbps) Ports:
4

Native USB 3.2 Gen 1 (5Gbps) Ports:
0

Native USB 2.0 (480Mbps) Ports:
0

Native SATA Ports:
2

PCI Express® Version:
PCIe 3.0

Native PCIe® Lanes (Total/Usable):
24 / 20

Additional Usable PCIe Lanes from Motherboard
AMD X570
16x Gen 3

AMD X470
2x Gen 3

AMD X470
8x Gen 2

NVMe Support:
Boot, RAID0, RAID1, RAID10

System Memory Type:
DDR4

Memory Channels:
2

System Memory Subtype:
UDIMM

System Memory Specification:
Up to 3200MT/s

Max Memory Speed:
2x1R DDR4-3200
2x2R DDR4-3200
4x1R DDR4-2933
4x2R DDR4-2667

ECC Support:
No

Graphics Capabilities

Integrated Graphics:
No

Graphics Model:
Discrete Graphics Card Required
