Description

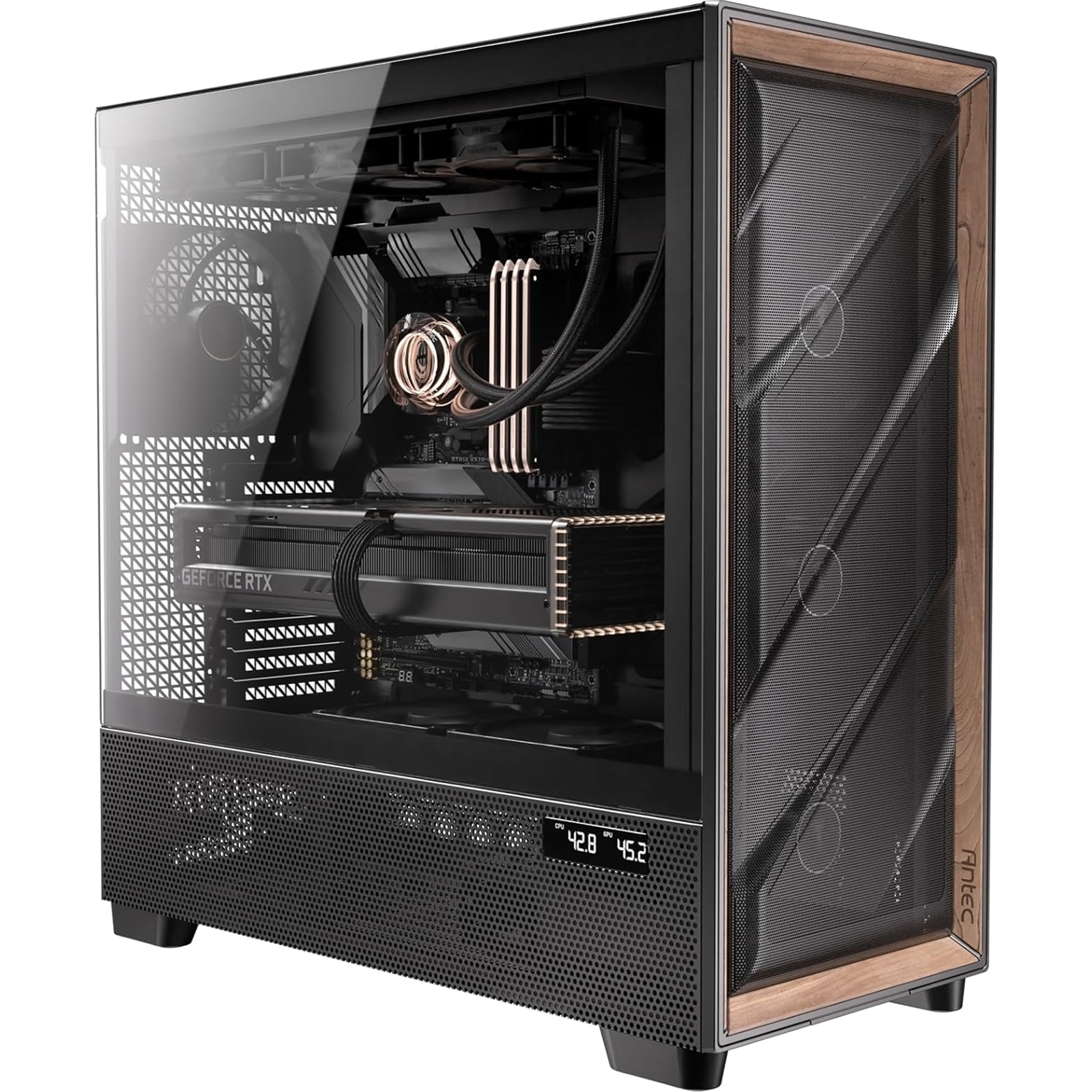

The Antec FLUX PRO full tower case embodies the pinnacle of design and performance for gaming enthusiasts. The case integrates Antec’s cutting-edge F-LUX Platform (Flow Luxury), which features an advanced airflow design to optimize GPU cooling with six high-performance pre-installed PWM fans. The multi-directional vent design includes extensive air intakes at the bottom, power supply chamber, and lower sides, complemented by top vents and a large-area mesh front panel, creating a dedicated Antec Flux airflow channel.
Flux Vertical Cooling enhances heat dissipation through the PSU chamber, boosting the cooling effect for the graphics card. Flux Horizontal Cooling ensures a smooth venting channel throughout the case via the front mesh. The front panel, crafted from a mix of metal mesh and walnut wood, adds a premium touch, blending seamlessly into any home design.
Specifications:
Form Factor:
Mid Tower
Materials:
Steel, Plastic, Walnut Wood
Mainboard Support:
E-ATX (=285mm), ATX, Micro-ATX, ITX
I/O Panel:
Power, Reset, 2 x USB 3.0, 1 x USB Type-C, Headphone/Mic Combo Jack
Side Panel:
Tempered Glass
Drive Bays:
3.5″ / 2.5″: 4 / 4
Expansion Slots:
7
Fan Support:
Front: 3 x 120mm / 3 x 140mm
Top: 3 x 120mm / 3 x 140mm
Power Supply Shroud: 2 x 120mm / 2 x 140mm
Rear: 1 x 120mm / 1 x 140mm
Included Fans:
3 x 140mm Tranquil PWM fans in front, 2 x 120mm P12R PWM reverse fans on PSU shroud, 1 x 140mm Tranquil PWM fan in rear
Radiator Support:
Front: 120 / 140 / 240 / 280 / 360 / 420mm
Top: 120 / 140 / 240 / 280 / 360 / 420mm
Power Supply Shroud: 120 / 240 / 360mm
Bottom: 120 / 240mm
Rear: 120 / 140mm
Clearance:
Max GPU Length: = 455mm
Max CPU Cooler Height: = 190mm
Max PSU Length (including cables): = 180 / 300mm (with HDD), = 470mm (without HDD), = 180mm (side mount)
CPU/GPU Dual Temperature Display
Intuitive hardware temperature display design with 4 different modes:
GPU & CPU On
GPU & CPU Off
Only CPU On
Only GPU On
*Antec iUnity software must be installed
Dust Filter:
Bottom
Weight:
Net: 13.60 kg, Gross: 16.65 kg
Dimensions (D x W x H):
530 x 245 x 545 mm
