Description

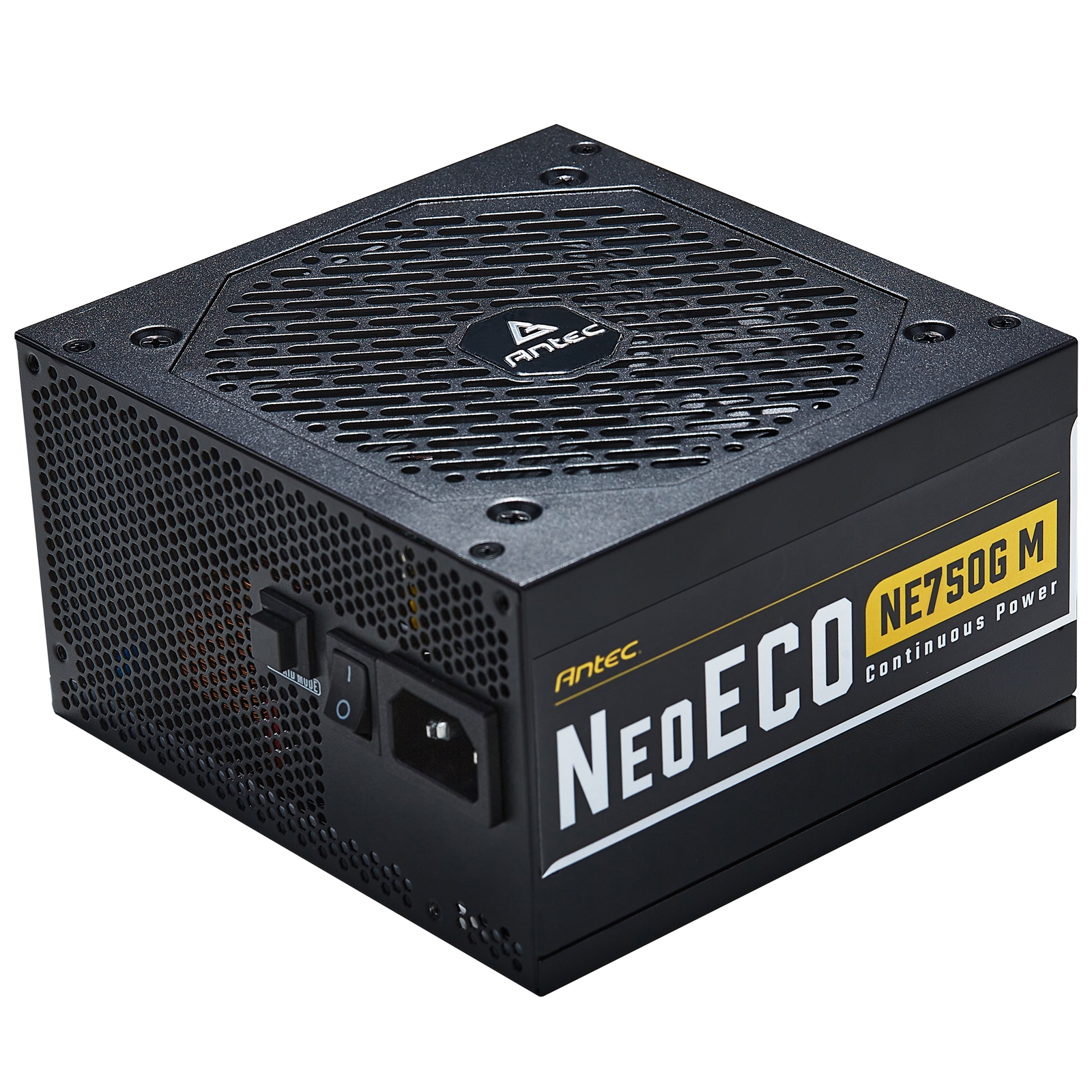

NeoECO GOLD MODULAR
750W
The brand-new NeoECO Gold Modular series was born ready for the best DIY-PC experience seekers, and it also serves exceptional performance and outstanding stability. Featured 100% full modular design and 80 PLUS Gold certification, the NeoECO Gold Modular series keeps your PC hardware installation convenient and clean. It still provides highly efficient power to your system and reduces your electricity bills. The advanced thermal control with the Zero RPM mode enables to turn the fan off at low loads to provide absolute silence. With the 120mm silent fan, the NeoECO Gold Modular can optimize the balance between cooling and noise. High-quality Japanese heavy-duty caps allow your system has more stable performance. The CircuitShield™ design serves your industry-grade protection to make your system safe in any environment. With the 7-year warranty, the NeoECO Gold Modular series will be the ideal choice for professional modders and PC gamers.
120mm Silent Fan
Features improvement for airflow and excellent durability.
Zero RPM Mode
The Zero RPM fan mode further automatically ensures zero fan speed at low loads to reduce plenty of noise and keep absolute silence.
Japanese Heavy-Duty Caps
Japanese capacitors ensure the tightest DC stability and regulation, for eliability that you and your system can count on.
PhaseWave LLC + DC to DC Design
A server-class Half-Bridge LLC design with synchronous rectification based on a DC-DC topology to improve performance and stability.
7-Year Warranty
The new NeoECO Gold Modular series from Antec pushes the standard for excellence with the circuit shield suite of industrial protections and is backed by a 7-year warranty.
100% Full Modular
Enables users to use only the cables which are needed and help clear out excess cables that can obstruct and reduce airflow.
NeoEVO Gold modular 750W
– 750W Continuous Power: Guaranteed 750W of Continuous Power from Antec
– 100% Modular: Improves airflow and reduces clutter
– 80 PLUS Gold certified: Reduce your electricity bill
– PhaseWave Design: A server-class LLC design with a synchronous rectification based on a DC-DC topology
– Antec Quality 7-year warranty
– 120mm Silent Fan: Whisper-quiet high-quality fluid bearing fan with long lifetime
– Zero RPM Manager: An advanced low voltage fan control with fan-off mode at low loads for absolute silence
– 99%+12V: Output for maximum CPU & GPU support
– CircuitShield: Full suite of industrial grade protections: OCP, OVP, UVP, SCP, OPP, OTP, SIP, NLO
– High-Quality JP capacitors achieve unprecedented tight voltage regulation & low ripple & noise to maximize your system’s performance
– 28(18+10) pin MBU socket: For possible future MBU connectors
– ATX 12V 2.4: Engineered according to the newest PSU guideline and compatible with the latest CPU generation
Product Name
NE750G M
Type
ATX 12V 2.4
Modular
Fully
Input Voltage
100-240 VAC
Input Current
10A MAX
Input Frequency Range
50Hz-60Hz
PFC
Active PFC
Power Good Signal
100-500ms
Efficiency
Up To 92%
Protection
OCP / OVP / UVP / SCP / OPP / OTP / SIP / NLO
Wattage
750W
Operation Temperature
0~40°C
Regulatory
cTUVus / TUV / CB / RCM / CE / FCC / BIS / BSMI / KC / UKCA / ICES
Cooling Fan
120mm Silence Fan
Certifications
80 PLUS Gold
Connections
1 x MB 24(20+4) Pin
2 x 8 (4+4) Pin EPS 12V
4 x 8 (6+2) Pin PCI-E
8 x SATA
4 x Molex
1 x FDD
Dimension ( L x W x H )
150 x 140 x 86mm
Weight
Net: 1.37 kgs
Gross: 2.53 kgs
