Description

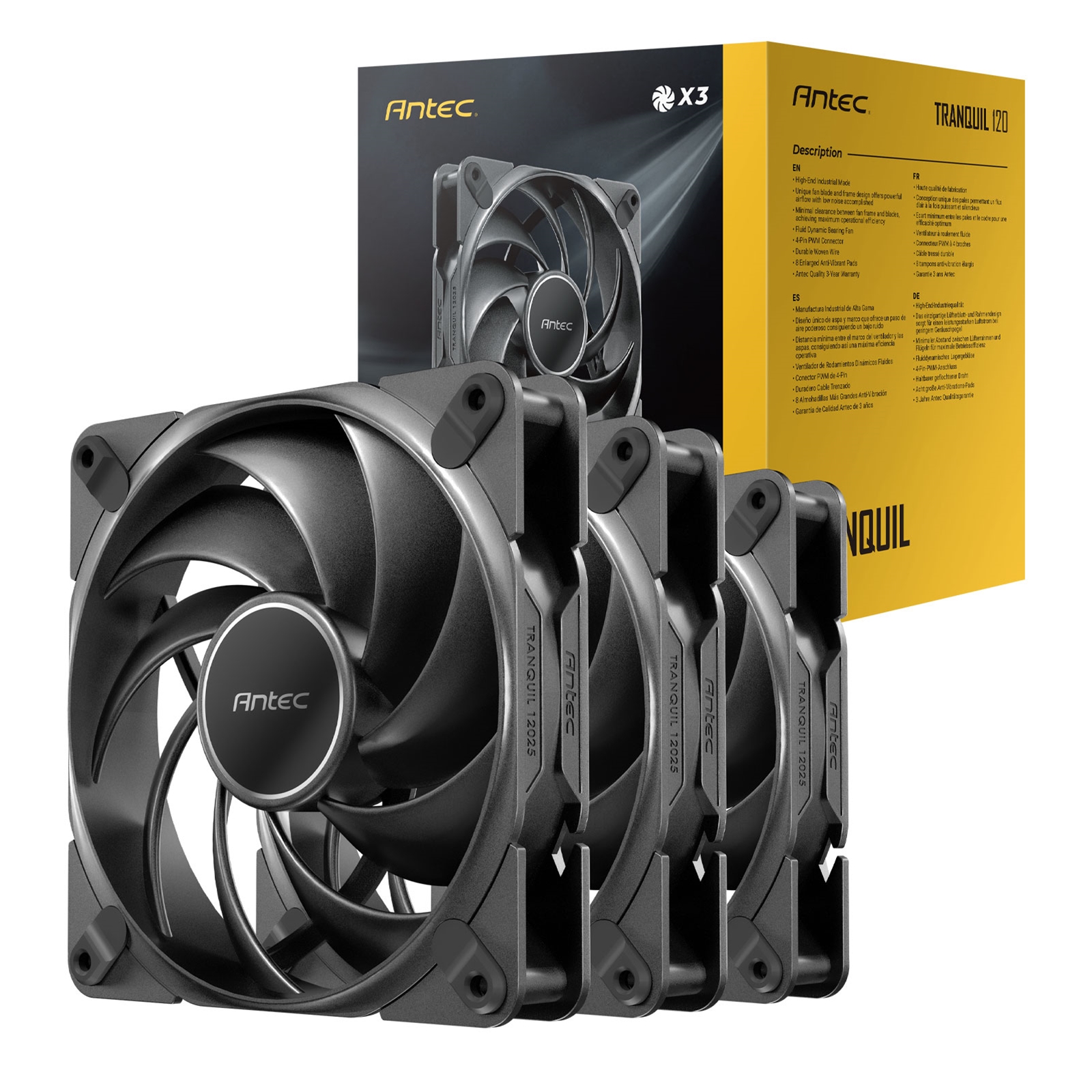

Tranquil 120 PWM FAN 3PK

TRANQUIL & POWERFUL
Unique fan blade and frame design offers powerful airflow with low noise accomplished.

EXQUISITE CRAFTSMANSHIP
Minimal clearance between fan frame and blades, achieving maximum operational efficiency.

FLUID DYNAMIC BEARING
Reduces friction between shaft and bearing for longer life and minimal noise.

VIBRATION-ABSORBING & ANTI-NOISE PADS
Equipped with eight damping feet to prevent resonance, reducing noise effectively.

CABLE & CONNECTOR
Durable Woven Wire
Covered with durable wovenwire to enhance the lifetime & create unique aesthetics.
4-Pin PWM Daisy Chain Cable
Cable Length: 500 mm
PWM Extension Cable Included

Specifications

Model Name
Tranquil 120

Fan Type
PWM Fan

Dimensions
120 x 120 x 25 mm

Bearing Type
FDB

Fan Speed
400±100~2000±150 RPM

Airflow
11.05~59.23 CFM

Air Pressure
0.09~2.46 mmH2O

Fan Noise Level
18.7~28.6 dB(A)

Lifespan
50,000 hours / 25?

Connector
4-pin PWM

Rated Voltage
DC 12 V

Operation Voltage
DC 7-13.8 V

Rated Current
0.15 (MAX:0.20) A

Warranty
3 Years
