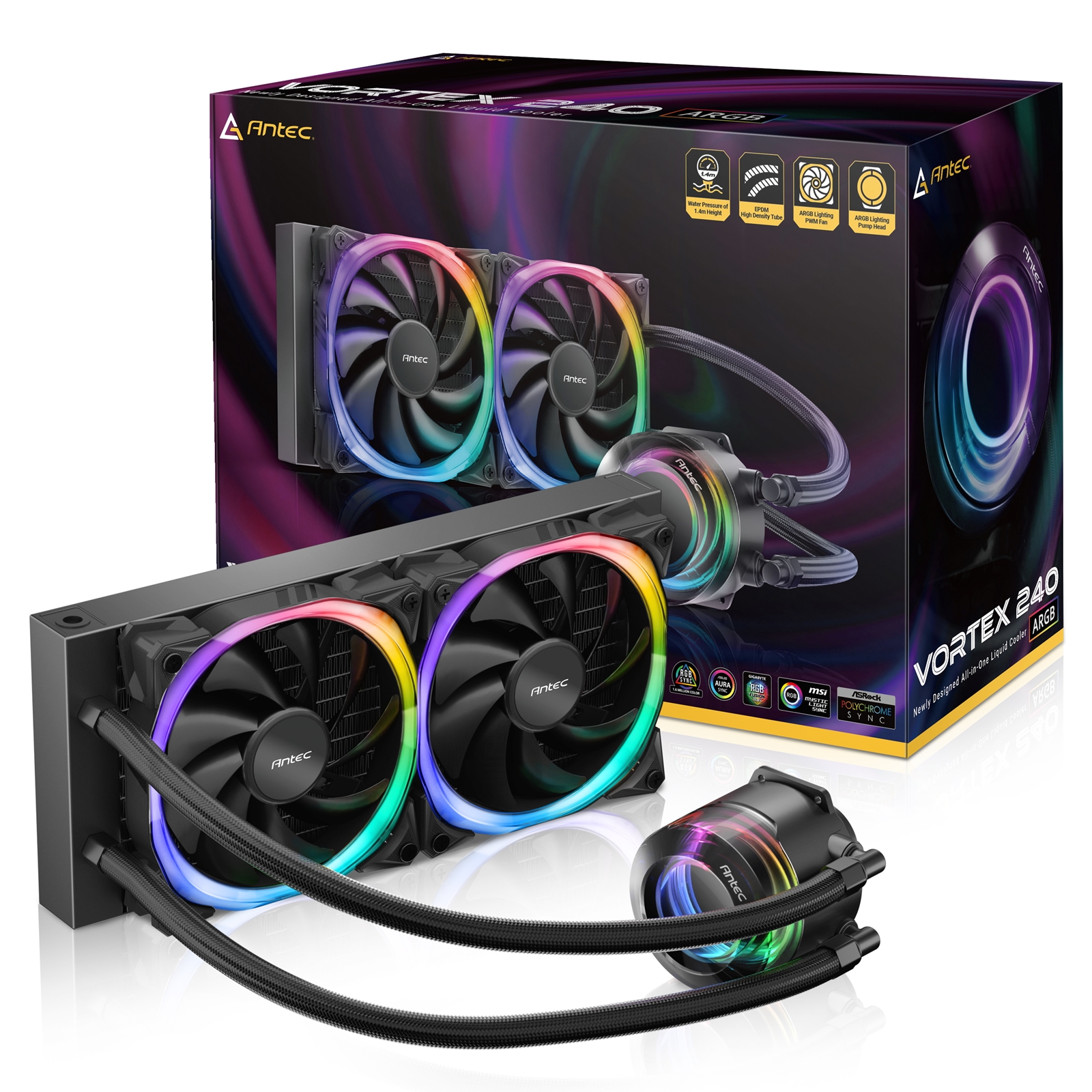

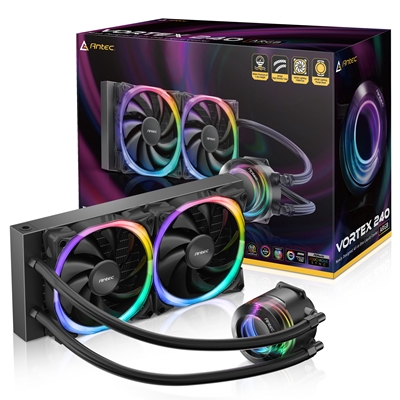

VORTEX 240 ARGB
The Epoch-Making All in One ARGB CPU Liquid Cooler

Suspended Spiral Pump Head Design
The suspended spiral pump head inspired by the image of a vortex provides outstanding cooling performance and various lighting effects from different angles.

Highly Efficient Cooling Pump
High Performance Cooling
Performance data tested with Vortex 360 on AMD Ryzen 5600x

Massive Copper Base Plate
Provides highly efficient cooling at all loads

EPDM High-Density Tubing
The EPDM high-density tubing is very durable, making less loss of liquid.

Superior Fin Density
Massive 13 fins dissipate heat rapidly.

Antec Fusion PWM ARGB Fan
The Vortex 240 ARGB adopted the Antec Fusion PWM ARGB Fan with a unique multilateral-shaped lighting frame with 16 LEDs projecting the most harmonious lighting effects and providing more powerful cooling for the CPU.

600+/-200 – 2000+/-10% RPM
Extreme Cooling Performance
– Airflow 57.93 CFM (max)
– Noise Level 31.24 dB(A) (max)
– Air Pressure 2.11 mmH2O (max)

Included ARGB Controller Working in Sync with the Motherboard
The included ARGB controller works with the motherboard, customizing each individual LED in color and effect.
– Lighting Effect Switch Connector: Connect it to the rest hub for LED control (as the Mode button)
– Mode Control: Long press for 3 seconds to switch to motherboard control and single press for switching back to the button control
– ARGB Connector: Connect it to the motherboard for lighting effects in sync
– ARGB Hub: Connect the ARGB fan to this connector. Each hub supports up to 48 LEDs and 4 hubs support up to 120 LEDs
– SATA Connector: Connect it to the SATA connector of the power supply

CPU Socket Compatibility
AMD: AM3 / AM4 / AM5
Intel: LGA 115X / 1200 / 1700 / 20XX / 1851

Radiator Specifications
Radiator Dimensions: 277 x 120 x 27 mm
Radiator Material: Aluminum

Pump Specifications
Dimensions: 67 x 48.5 mm
Rating Voltage: DC 12 V
Minimum Startup Voltage: = 5.0 V
Fan Speed: 2800+/-10% RPM
Rated Current: 0.25+/-20% A
Consumed Power: 3.0 W
Flow Rate: = 1300 mL / min
Water Pressure: 1.4M
Operation Temperature: -10°C ~ +60°C
Noise Level: = 28 dB(A)
Lifespan: 40,000 hours
Connector: PUMP: 3-pin / LED: 3-pin

Fan Specifications
Model Name: Fusion 120 ARGB fan (AH12012FM1)
Fan Type: PWM Fan
Dimensions; 120 x 120 x 25 mm
Bearing Type: Hydraulic Bearing
LED Type: Addressable RGB
Fan Speed: 600+/-200 ~ 2000+/-10% RPM
Airflow: 57.93 CFM (max.)
Air Pressure: 2.11 mmH2O (max.)
Fan Noise Level: 31.24 dB(A)
Lifespan: 40,000 hours
Connector: FAN: 4-pin PWM / LED: 3-pin
Rated Voltage: FAN: DC 12 V / LED: DC 5 V
Operation Voltage: FAN: DC 6.0-13.8 V / LED: DC 4.5-5.5 V
Rated Current: FAN : = 0.21 A / LED : = 0.58 A

Socket Compatibility
Intel: LGA 115X / 1200 / 1700 / 20XX
AMD: AM3 / AM4
