Description

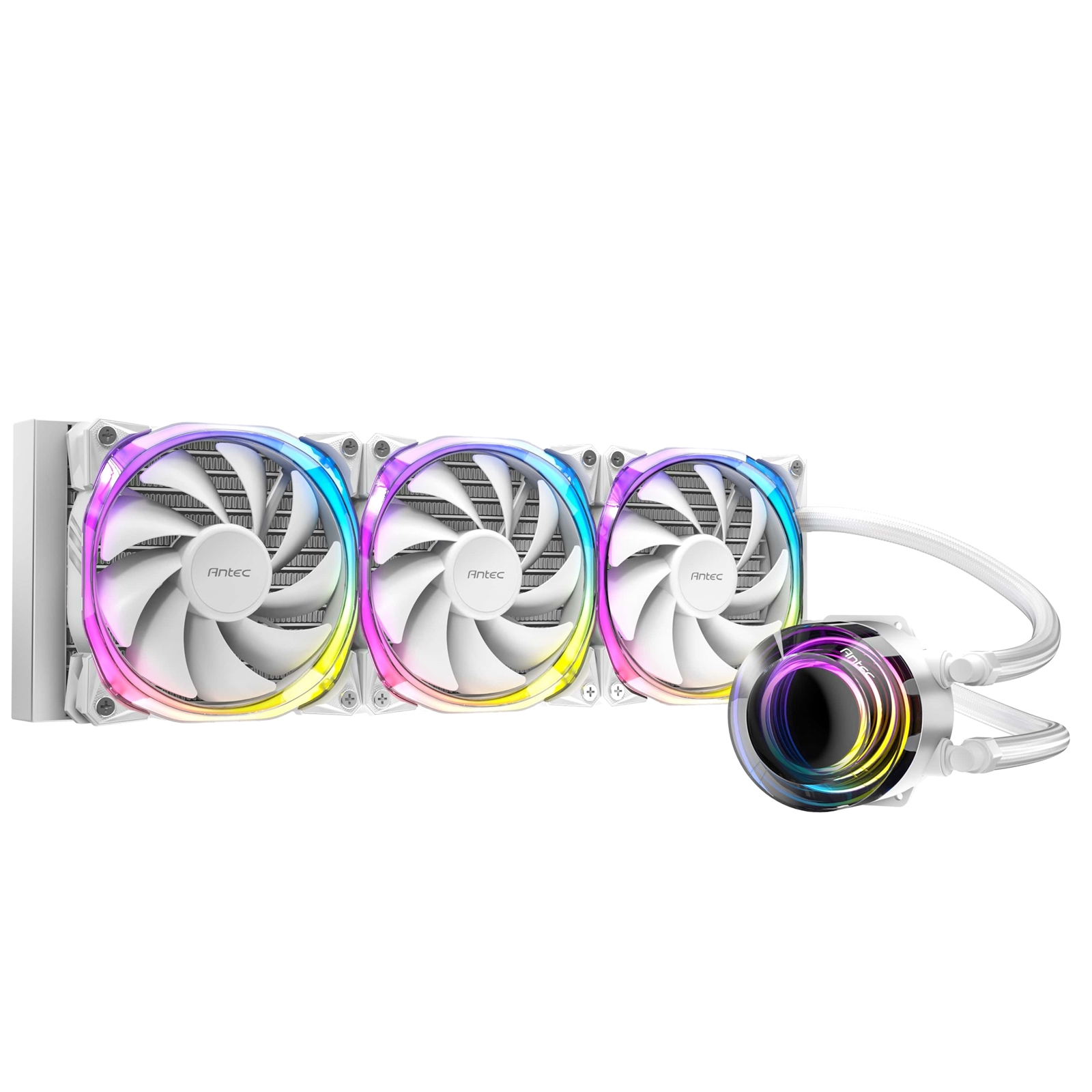

VORTEX 360 ARGB White The Epoch-Making All-in-One ARGB CPU Liquid Cooler

Suspended Spiral Pump Head Design The suspended spiral pump head, inspired by the image of a vortex, provides outstanding cooling performance and various lighting effects from different angles.

Highly Efficient Cooling Pump High Performance Cooling. Performance data tested with Vortex 360 on AMD Ryzen 5600x.

Massive Copper Base Plate Provides highly efficient cooling at all loads.

EPDM High-Density Tubing The EPDM high-density tubing is very durable, making for less loss of liquid.

Superior Fin Density 13 fins dissipate heat rapidly.

Antec Fusion PWM ARGB Fan The Vortex 360 ARGB White uses the Antec Fusion PWM ARGB Fan with a unique multilateral-shaped lighting frame and 16 LEDs for harmonious lighting effects and powerful CPU cooling.

Speed:
600+/-200 – 2000+/-10% RPM

Airflow:
57.93 CFM (max)

Noise Level:
31.24 dB(A) (max)

Air Pressure:
2.11 mmH2O (max)

Included ARGB Controller Working in Sync with the Motherboard
The included ARGB controller works with the motherboard, customizing each individual LED in color and effect.

Lighting Effect Switch Connector:
Connect to the rest hub for LED control (as the Mode button)

Mode Control:
Long press for 3 seconds to switch to motherboard control, single press to switch back

ARGB Connector:
Connect to the motherboard for sync lighting effects

ARGB Hub:
Connect the ARGB fan to this connector. Each hub supports up to 48 LEDs and 4 hubs support up to 120 LEDs

SATA Connector:
Connect to the SATA connector of the power supply

CPU Socket Compatibility
AM3 / AM4 / TR4
LGA 115X / 1200 / 1700 / 20XX / 1851

Radiator Specifications
Dimensions:
394 x 120 x 27 mm

Material:
Aluminum

Pump Specifications
Dimensions:
67 x 48.5 mm

Rating Voltage:
DC 12 V

Minimum Startup Voltage:
5.0 V

Fan Speed:
2800+/-10% RPM

Rated Current:
0.25+/-20% A

Consumed Power:
3.0 W

Flow Rate:
1300 mL/min

Water Pressure:
1.4M

Operating Temperature:
-10°C ~ +60°C

Noise Level:
28 dB(A) max

Lifespan:
40,000 hours

Connector:
PUMP: 3-pin / LED: 3-pin
