Description

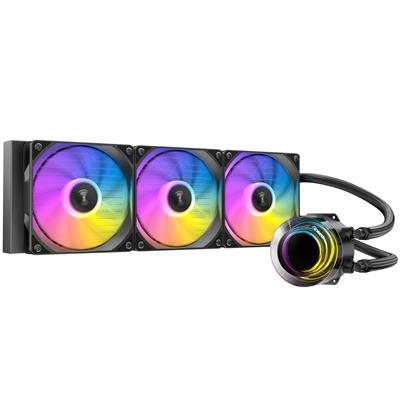

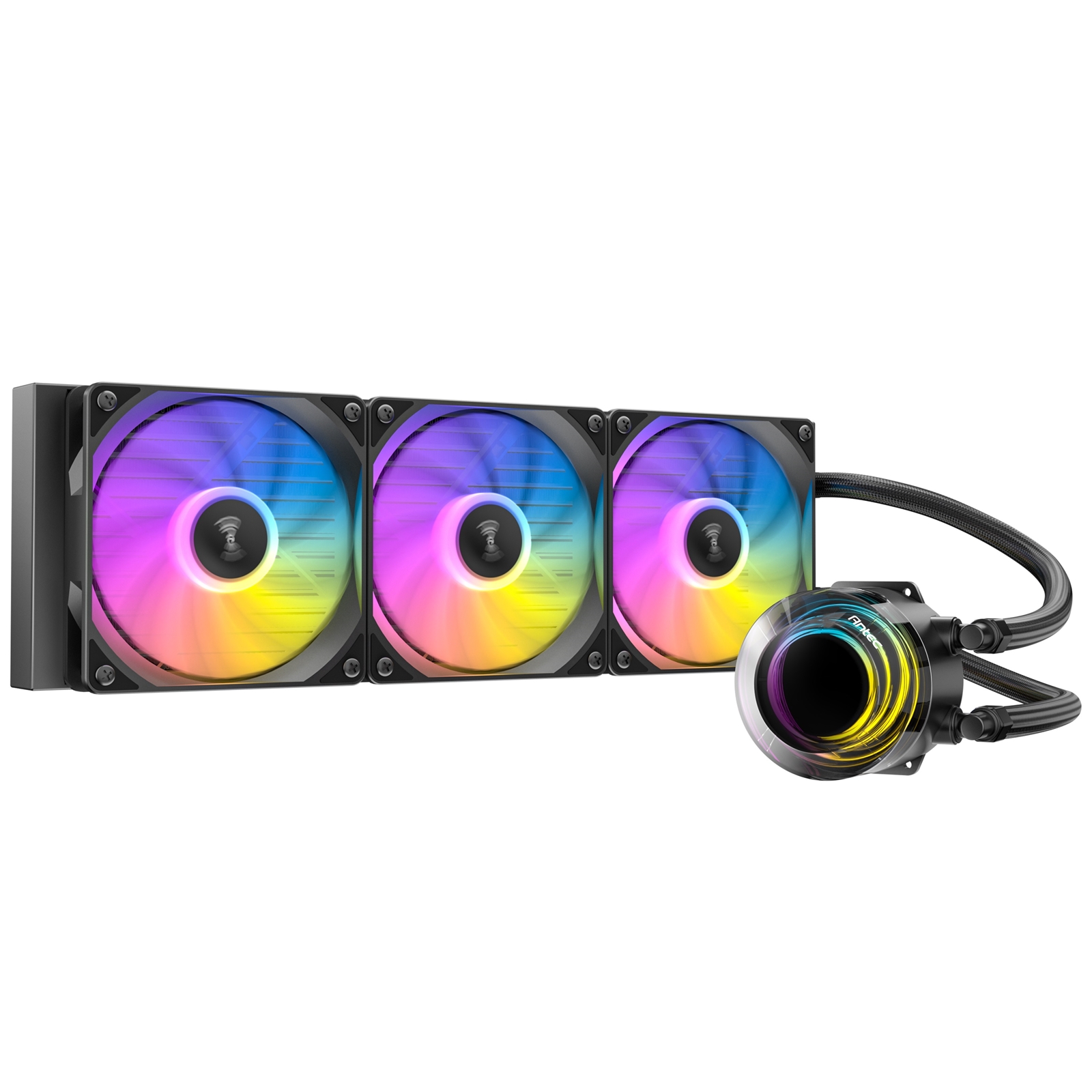

The Antec Vortex Lum 360 ARGB is an all-in-one liquid cooler designed to provide exceptional cooling performance while enhancing the visual appeal of your build. Featuring a suspended spiral pump head inspired by the image of a vortex, it delivers outstanding cooling performance and dynamic lighting effects from various angles. The cooler is equipped with powerful ARGB PWM fans and an included ARGB controller that works in sync with the motherboard, allowing for customized lighting effects.

Full Specification
Radiator Dimensions:
397 x 120 x 27 mm (L x W x H)

Radiator Material:
Aluminum

Pump Dimensions:
F67 x 48.5 mm

Rating Voltage:
DC 12 V

Fan Speed:
2800±10% RPM

Rated Current:
0.25±20% A

Consumed Power:
3.0 W

Flow Rate:
=1300 mL/min

Water Pressure:
1.4 m

Operation Temperature:
-10°C ~ +60°C

Noise Level:
=28 dB (A)

Lifespan:
40,000 hours

Fan Dimensions:
120 x 120 x 25 mm

Fan Type:
PWM ARGB

Airflow:
71.5 CFM (max.)

Air Pressure:
2.45 mmH2O (max.)

Fan Noise Level:
31 dB (A)

Lifespan:
40,000 hours

Connector:
PH 2.0 7-pin (PWM+ARGB)

Rated Voltage:
FAN: DC 12 V | LED: DC 5 V

Operation Voltage:
FAN: DC 10.8-13.2 V | LED: DC 4.5-5.5 V

Rated Current:
FAN: 0.20-0.25 A | LED: 0.32 A

CPU Socket Compatibility:
Intel: LGA 115X / 1200 / 1700 / 20XX / 1851,
AMD: AM3 / AM4 / AM5 / TR4

TDP:
= 280W

Warranty:
3 years
