Description

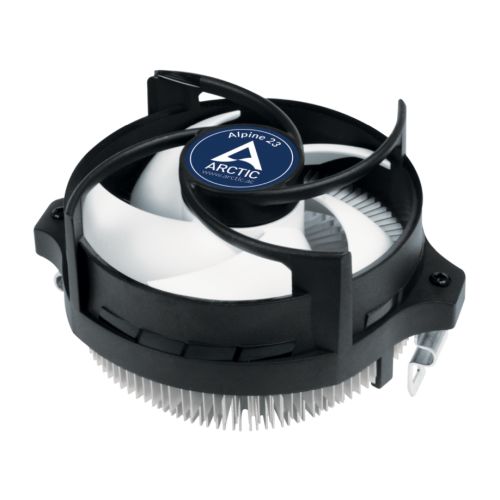

Compact AMD CPU-Cooler
Improved Cooling Performance By New Production Process
The high thermal conductivity of aluminum is fully retained by a new type of extrusion. This new production process creates a powerful yet very compact radial heat sink. The particularly thin cooling fins of the new Alpine are fanned out in a Y-shape. This increases the surface area of the heat sink and therefore the cooling capacity.
Wide RPM Range
The Alpine 23 features a new motor technology with a very wide, PWM-controlled RPM range. This keeps the noise level at a minimum while guaranteeing maximum cooling performance when needed.
Lower Power Consumption & Minimum Vibration
The new Alpine 23 is powered by an updated motor and runs much more efficiently than its predecessors. Due to sinus-magnetizing the new motor creates just 5 % of the vibration from commutation of a regular DC-motor. These factors contribute towards saving energy, lowering the coil temperature and reducing vibrations to a minimum without compromising performance.
High Quality Bearing
Thanks to an alloy/lubricant combination developed in Germany, friction within the bearing is reduced and greater efficiency is achieved. As a result, there is less heat development as well as less bearing noise, which means you can enjoy a longer service life from your fan.
Extended Life Span
A 10 °C lower motor temperature roughly doubles the life span of a fan. The new ARCTIC motor has a four times longer service life through its low coil temperature.
Pre-Applied MX-2 Thermal Paste
The pre-applied, high-performance MX-2 thermal compound ensures fast and clean installation.
Easy And Tool-Free Installation
Thanks to the mounting clips, the installation is really easy. Alpine 23 is simply plugged onto the existing AMD retention modules and screwed tight.
Description
Specification
- Type: CPU Air Cooler
- AMD/Intel: AMD Only
- Compatibility: “AM5, AM4, AM3(+), AM2(+), FM2(+), FM1”
- TDP: Up to 95 Watts
- Fan Connector(s): 4-pin
- Fan Controller: PWM
- Fan Bearing: Fluid Dynamic Bearing
- Rotation Speed: 100 – 2000 RPM
- Installation: Mounting clips
- #Hide#LED Lighting: No
- Colour: Black & white
- Weight: Fins: Aluminium
- Dimensions: (LxWxH) 98.6 x 121 x 65 mm
- Fan Dimensions: 90 mm
- Noise level: 0.3 Sone
- Power: 0.06 A/12 V
- Additional Features: See Overview
- Package Type: Retail
- Package Weight: 0.3400 kg
- Warranty: 6 Years
- #Hide# AM5 Socket: Supports Socket AM5
- #Hide#AM4 Socket: Supports Socket AM4
- #Hide#AM3(+) Socket: Supports Socket AM3
