Description

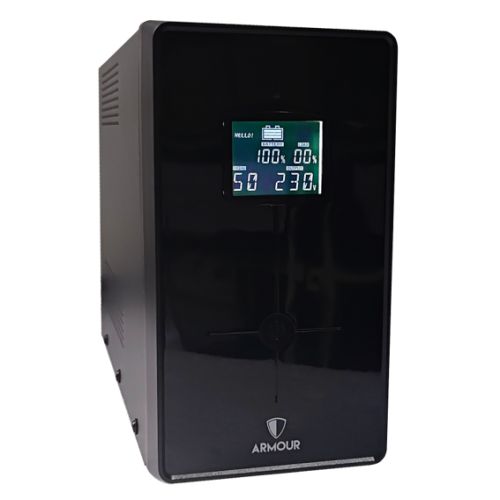

Vida 1000VA/600WUPS

• DC Cold Start
• Audible Alarm
• USB Connectivity
• Intelligent CPU Control
• Wide Input Range
• Software Monitoring
• Compatible with generators
• Strong EMI compatibility, no EMI to load
• Protection against Surge, Over /
• Relay automatic circuit cut off switch
• EMI / RFI:  Full time suppression

Description

Specification

• Type: External UPS
• Maximum Capacity: 1000VA / 600W
• Battery Type: “2 x 12V7AH
  Sealed Lead-Acid, Maintenance Free”
• Typical Protection: 320 Joules instantaneous response
  Backup Time: 15-20 Minutes (load dependant)
• Inversion: Sine Wave (Mains)
  Square Wave (Inverter)
• Transfer Time: <= 6ms
• Battery Protection: Surge Protection
  Over/Under Voltage Protection
• Input Voltage: 230 / 240VAC with relay
• Output Voltage: 230 / 240VAC
• Recharge Time: 90% capacity after 8 hours
• Runtime: 15-20 minutes (dependent on load)
• Interfaces: 3 x UK Mains Sockets
  2 x RJ45 (In/Out)
  1 x USB (For USB Monitoring)
  3 x IEC Sockets
• Visual Indicators: LCD Display
  LED Indicators
• Audible Indicators: Alarm
• Environment: Temperature: 0 – 40°C
  Humidity: 20% – 90% (Non-condensing)
  Noise: Up to 45db (1 metre)
• Dimensions: (WxHxD) 125 x 225 x 320 mm
• Weight: 9.7 kg
• Additional Features: “Built in AVR
  DC Cold Start
  Intelligent CPU Control
  Wide Input Range
  Software Monitoring
  Compatible with generators
  Strong EMI compatibility, no EMI to load
  EMI / RFI: Full time suppression
  Relay automatic circuit cut off switch”
• Accessories: Mains Cable
  USB Cable
  Manual
• Package Type: Retail
• Package Weight: 10.5000 kg
• Warranty: 1 Year
