Description

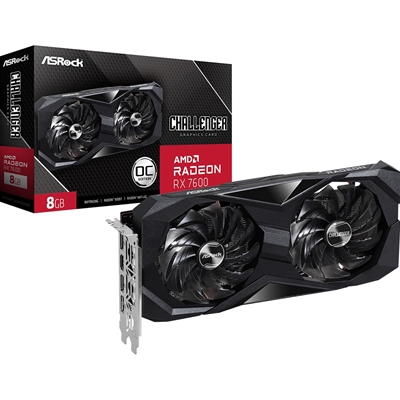

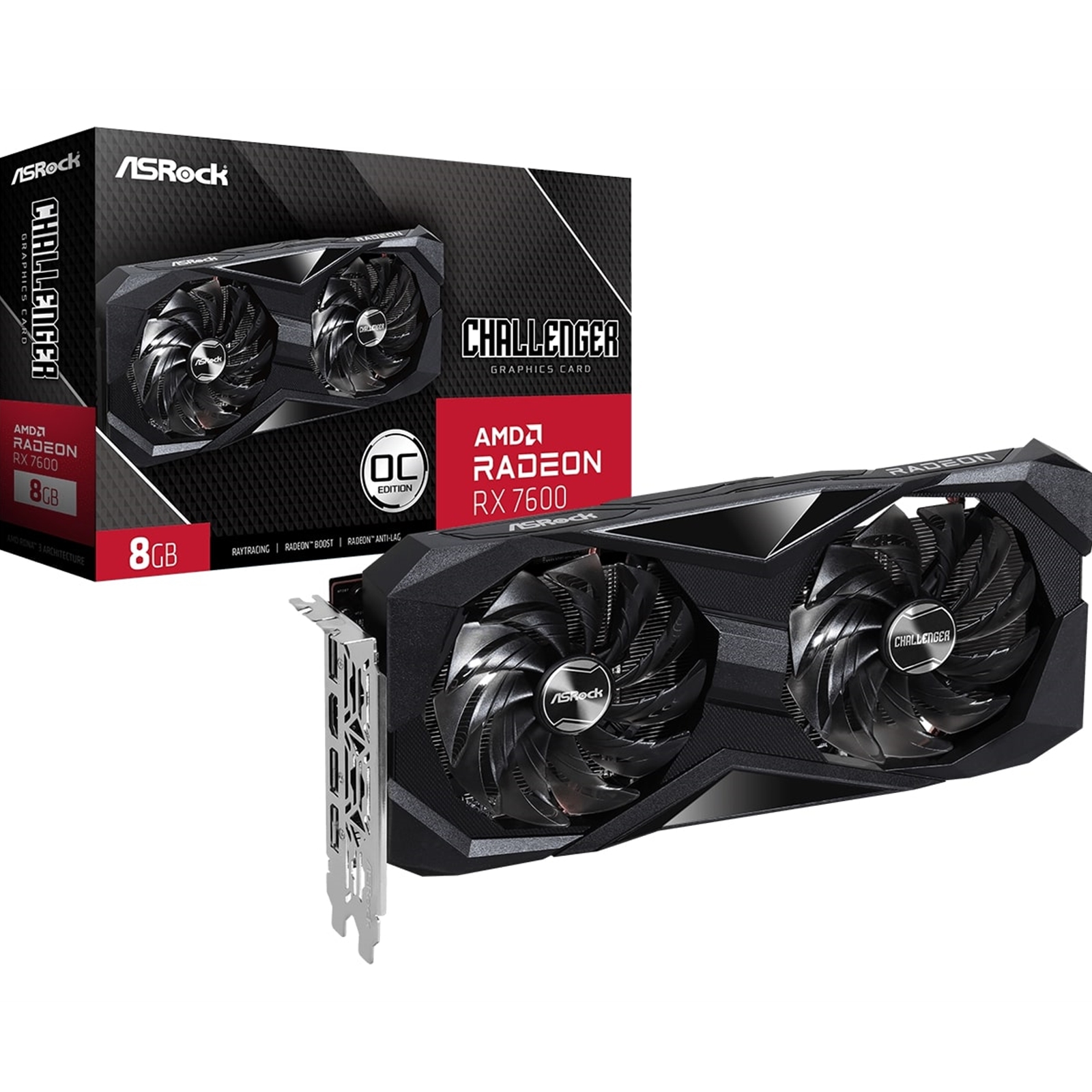

AMD Radeon RX 7600 Challenger 8GB OC
Clock: GPU / Memory
Boost Clock: Up to 2695 MHz / 18 Gbps
Game Clock: 2280 MHz / 18 Gbps
Base Clock: 1770 MHz / 18 Gbps
Key Specification
AMD Radeon RX 7600
8GB GDDR6
DirectX 12 Ultimate
PCI Express 4.0 Support
1 x 8-pin Power Connector
3 x DisplayPort 1.4 with DSC / 1 x HDMI 2.1 VRR
Key Features
Dual Fan Design
Stylish Metal Backplate
Striped Axial Fan
Ultra-fit Heatpipe
0dB Silent Cooling
Super Alloy Graphics Card
Dual Fan Design
Two fans that provide strong cooling performance and make your gaming rig stay cool. It’s optimized for delivering excellent gaming experience with stylish and streamlined design.
Stylish Metal Backplate Solid, Fancy, Cool
Designed to avoid PCB bending. The fancy outlook makes the graphic card more legendary in visual. It also helps to enhance cooling with the premium thermal pads equipped backside.
Striped Axial Fan Designed For Enhanced Airflow
ASRock’s custom Striped Axial Fan delivers enhanced airflow to optimize cooling from not only the stripe structure on each fan blade but also the polishing surface on the bottom side.
0dB Silent Cooling Spin For Cooling, Stop For Silence
The fan spins when the temperature goes high for the optimal cooling, and stops when the temperature goes low for the complete silence.
Ultra-fit Heatpipe Consolidated to Maximize the Contact
The heatpipes are consolidated to maximize the contact among each others and also the GPU baseplate for the optimized heat dissipation.
Nano Thermal Paste Perfect Thermal Teamwork
Eliminate the gaps in the contact area to maximize heat transfer and thermal efficiency.
Premium Thermal Pad Better Heat Transfer
The premium thermal pad helps to transfer the heat of the components to the heatsink, improving heat dissipation.
Precise Screw Torque Optimized Mounting Pressure
ASRock adopts precise screw torque when assembling its graphics cards to optimize the cooler mounting pressure to improve thermal efficiency while avoiding damage to GPU die.
ASRock Tweak 2.0 Pro and Easy-to-Use Tuning Utility
Provides the smart fan speed control and instant performance tweaking.
8K Resolution Support
Not only can it handles 4K graphics but also supports the next generation 8K video output for the ultimate visual experience.
PCI Express 4.0 Support
This graphics card features PCI Express 4.0 support, with a throughput of 16 GT/s and enables two times the bandwidth compared to PCI® Express 3.0. Get ready for the next generation of PC gaming.
AMD Eyefinity Technology
AMD Eyefinity technology expands the traditional limits of desktop computing by multiplying your screen area. With multiple monitors, games become more immersive, workstations become more useful and you become more productive.
BREAKTHROUGH PERFORMANCE
AMD Radeon RX 7600 graphics card set a new level of performance for gamers and streamers. Featuring unified AMD RDNA 3 compute units, and blazing fast clock speeds, to enable advanced high refresh rate gaming performance at 1080p.
BREATHTAKING VISUALS
Discover new levels of fidelity and ultra-fast gameplay with High-Performance Rendering, a combination of compute-based AMD FideltyFX features and upscaling technologies, to deliver world-class visuals with remarkable performance. Further immerse yourself with the AMD Radiance Display Engine and DisplayPort 2.14 to experience up to 68 billion colors for video playback at up to 8K. Deliver enhanced visual quality to your audience when streaming and recording using the improved encoders, together with integrated AI and content adaptive machine learning technology to enable better looking and crisper visuals when streaming.
BETTER TOGETHER
Combine an AMD Radeon RX 7600 graphics card and AMD Ryzen processors to activate AMD smart technologies3. You can unleash outstanding performance to give you an edge in the game. Advance your AMD Radeon RX 7000 Series graphics card with the AMD Software: Adrenalin Edition application, featuring bulletproof drivers, for the best PC gaming experiences.
UPSIZE PERFORMANCE. MAXIMIZE FIDELITY
AMD FidelityFX Super Resolution technology1 takes upscaling technology to the next level. Providing incredible image quality while boosting framerates in supported games. AMD Radeon Super Resolution (RSR)2 leverages FSR technology on the driver level, giving you upscaled performance benefits across thousands of games.
Specifications
Graphics Engine
AMD Radeon RX 7600
Bus Standard
PCI Express 4.0 x8
DirectX
12 Ultimate
OpenGL
4.6
Memory
8GB GDDR6
Engine Clock
Boost Clock: Up to 2695 MHz
Game Clock: 2280 MHz
Base Clock: 1770 MHz
Stream Processors
2048
Memory Clock
18 Gbps
Memory Interface
128-bit
Resolution
Digital Max Resolution: 7680 x 4320
Interface
1 x HDMI™ 2.1 (up to FRL 10Gbps)
3 x DisplayPort™ 1.4a with DSC (up to HBR3 8.1Gbps)
HDCP
Yes
Multi-view
4
Recommended PSU
550W
Power Connector
1 x 8-pin
Accessories
1 x Quick Installation Guide
Dimensions
269.2 x 131.8 x 40.3 mm
Net Weight
640 g
