Description

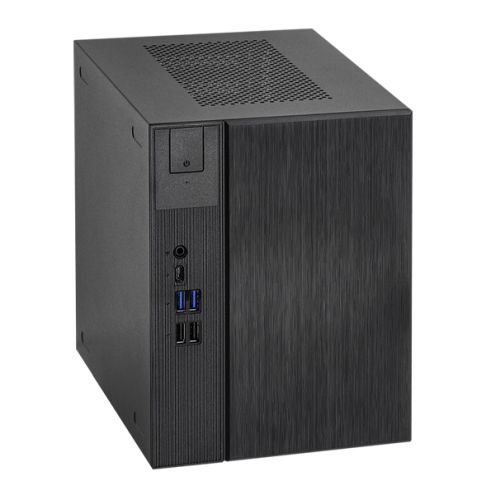

With just 8 liters of volume, DeskMeet is a powerful and compact desktop PC designed to deliver the best experience for daily computing, gaming, home entertainment, content creation and business. It supports the desktop processor and the graphics card under 20 cm long. This chassis can stand either vertically or horizontally to fit into any workspace and give users a neat and tidy desk space.
- Supports AMD AM4 Socket Ryzen™ 2000, 3000, 4000 G-Series, 5000 and 5000 G-Series Desktop Processors, up to 65W
- Supports MAX Height < 54mm CPU Cooler
- Supports 4 x DDR4-3200MHz DIMMs, up to 128GB
- 1 x PCIe 3.0 x16
- Graphics Output Options: DisplayPort, HDMI & D-Sub
- 2 x SATA3, 1 x Ultra M.2 (PCIe Gen3 x4)
- 1 x USB 3.2 Gen1 Type-C Port
- 4 x USB 3.2 Gen1 Type-A port (2 Front, 2 Rear)
- 4 x USB 2.0 Type-A port (2 Front, 2 Rear)
- 1 x M.2 Key-E for Wi-Fi
- 500W power supply (80+ Bronze)
- 8 Liter compact size
Processing Power
DeskMeet X300 supports the latest AMD Ryzen™ 5000 Series desktop processor (up to 65W) that delivers ultimate performance for efficient work and demanding applications.
Incredible Memory Performance
Up to 128GB of four DIMM memory clocked at 3200MHz, DeskMeet provides a faster multitasking experience and a responsive system.
Get the server-grade performance and rock-solid durability with support of ECC un-buffered memory modules for high-end computing systems, such as scientific or financial computers.
Heatsink
DeskMeet features a dedicated MOSFET heatsink that allows it to dissipate excess heat and operate at the optimum temperature for reliable performance.
Ready for Dual slot Graphics Card
DeskMeet can fit a dual slot graphics card (up to 20cm or 7.87 inches) which is an option for those requiring advanced graphics performance for heavy visual tasks, such as gaming, 3D rendering and video editing.
Efficient Airflow Design
DeskMeet features air vents at the top, left side and bottom of the chassis, allowing for maximum heat removal and constant airflow.
In addition, the custom intake fan inside the power supply can pull in cool air to dissipate heat from the CPU and VRM. Such optimized thermal design enables the system to run cool and quiet without compromising performance.
Expand the Configurations Potential
With a flexible and expandable design, DeskMeet can be easily configured to meet users now and future needs. The mounting holes on top of the frame provide four options, 1 x 3.5” HDD, 2 x 2.5” SSD/HDD, 1 x 120mm fan or 1 x single radiator liquid cooler.
Up to Three Storages
DeskMeet X300 supports up to 3 storages including 1 x Ultra M.2 to speed up the system and reduce loading time, 2 x SATA 6Gb ports (supports RAID 0/1 function) for 3.5” HDD or 2.5” SSD/HDD enable users to build a mini data center.
Easy to set up and upgrade
DeskMeet adopts a drawer chassis design so users can pull out the motherboard tray after removing one screw at the bottom. To keep up the system in the latest status, all the components can also be installed or upgraded with ease. DeskMeet provides a simple setup experience to save time and effort.
Keep Your 3.5” HDD
DeskMeet can be equipped with 2 x 3.5” HDD at most. When users replace the aged tower PC with DeskMeet, they can install their old 3.5” HDD to preserve personal data.
ATX Power Supply
DeskMeet includes an internal 500W 80 Plus Bronze power supply with custom length cables to save space and make cable management easier. The fan in the power supply will draw in the cool air to CPU cooler which is the best way to increase airflow and ensure DeskMeet operates at its utmost efficiency of heat dissipation.
Multi-Monitor
Up to three displays can be used simultaneously without adding an extra graphics card. With multi-screen, you can have high productivity and immersive gaming experience.
Front USB Type-C
DeskMeet features one reversible USB Type-C port in the front of the case for fast charging and data transfer.
Connectivity
Although DeskMeet’s compact size, it doesn’t compromise on I/O ports. It has eight Type-A USB ports to connect to all of your peripheral devices.
Portable PC for Various Applications
With only 8 liters and 168mm in width, DeskMeet is a portable PC that you can place it in dormitory or hand baggage when taking a trip to play video game at the hotel room. DeskMeet offers a wide range of uses for any scenario.
Auto Driver Installer
No need to worry about lack of disk drive! Asrock preinstall LAN driver to ensure that you are able to install all drivers needed in an easier way than using SCD.
- Step 1: Install Auto Driver Installer
- Step 2: Update drivers needed
- Step 3: Done!
Description
Specification
- #Hide#Fully Built / Barebone: Barebone
- Tower / Small Form Factor: Small Form Factor
- Chassis: Asrock DeskMeet
- Processor: None
- Processor Details: “Supports AMD AM4 Ryzen 2000, 3000, 4000 G-Series, 5000 and 5000 G-Series Desktop Processors, up to 65W”
- Chipset: AMD X300
- Graphics: Supports a discrete Dual slot Graphics card up to 20cm
- #Hide#Processor: None
- Memory: None
- Memory Details: “4 x DDR4 DIMM (Dual Channel)
Max. 128GB
AMD Ryzen 5000/4000 series – 3200MHz
AMD Ryzen 3000/2000 series – 2933MHz
Supports ECC & non-ECC, un-buffered memory” - Hard Drive: None
- SSD Drive: None
- Optical Drive: None
- Supported Drives: 2 x SATA3 for 3.5” HDD or 2.5” SSD/HDD (RAID 0/1)
1 x Ultra M.2 (2280) – PCIe - Operating System: No O/S
- Front I/O: 1 x USB 3.2 Gen1 Type-C
2 x USB 3.2 Gen1 Type-A
2 x USB 2.0 Type-A
1 x Headphone/Headset Jack - Back I/O: 1 x D-Sub
1 x HDMI
1 x DisplayPort
2 x USB 2.0
2 x USB 3.2 Gen1 Type-A
1 x RJ-45 LAN Port
1 x Audio Jack (Line out) - LAN: Gigabit LAN (RealtekRTL8111H)
- Wireless: –
- Bluetooth: –
- Sound: Realtek ALC897 Audio Codec
- Expansion: 1 x Chassis Intrusion Header
1 x CPU Fan Connector (4-pin)
1 x Chassis/Water Pump Fan Connectors (4-pin)
1 x 24 pin ATX Power Connector
1 x 8 pin 12V Power Connector
1 x Front Panel Header
1 x USB 2.0 Headers (Support 2 USB 2.0 ports) - Power Unit: 500W 80+ Bronze
- Keyboard and Mouse: No
- Dimensions: 168 (W) x 219.3 (D) x 218.3(H) mm (excl. Protrusions)
168 (W) x 236.1 (D) x 221.6(H) mm (incl. Protrusions) - Additional Features: See Overview
- Accessories: Quick Installation Guide
2 x SATA Data Cables
1 x Screws Package - Package Weight: 4.2000 kg
- Package Type: Retail
- Warranty: 2 Year Replacement Warranty
- #Hide#Memory: DDR4
