Description

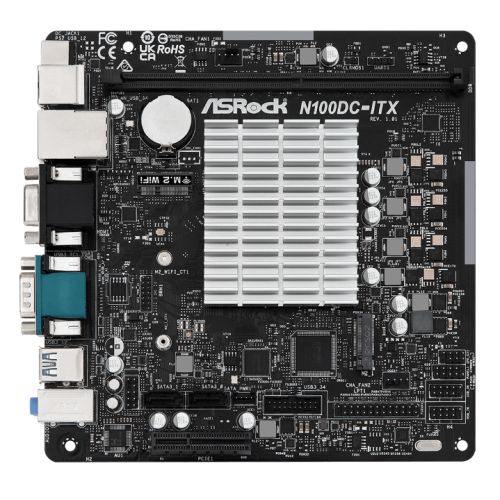

N100DC-ITX
- Intel® Quad-Core Processor N100 (up to 3.4 GHz)
- Supports 1 DDR4 DIMM
- 1 DC Jack (Compatible with the 19V power adapter)
- 1 PCIe 3.0 x4 (x2 mode), 1 M.2 Key E for WiFi
- Graphics Output Options: D-Sub, HDMI
- 7.1 CH HD Audio (Realtek ALC897 Audio Codec)
- 2 SATA3, 1 M.2 (PCIe Gen3x2)
- 4 USB 3.2 Gen1 (2 Rear, 2 Front)
- Realtek Gigabit LAN
- Supports ASRock Auto Driver Installer
Intel® Alder Lake-N N100 Processor
The newest Intel® N100 processor, built on the Gracemont CPU microarchitecture using the Intel® 7 process, features 4 E-cores with a turbo frequency of 3.4GHz and Intel® UHD Graphics with 24 EUs. It is suitable for affordable, entry-level computing.
DC-In Design
The DC-In jack is compatible with 19V power adapters. Without a bulky power supply unit, this unique design allows this motherboard to fit in compact chassis.
*Power adapter is not included.
Fanless Design
The CPU is covered by a specially designed heatsink which allows advanced heat dissipation. Utilizing an ultra quiet fanless design, this ASRock motherboard provides the most silent computing environment.
AV1 Decoding + 4K
Supports 10-bit HEVC & VP9 encoding/decoding, hardware-accelerated AV1 decoding, and a max. resolution of up to 4K x 2K 60Hz.
M.2 (KEY E) For WiFi
Besides the onboard LAN port, users may also choose wireless connections by M.2 (Key E) slot.
*Wi-Fi module is not included.
Auto Driver Installer
No need to worry about lack of disk drive! Asrock preinstall LAN driver to ensure that you are able to install all drivers needed in an easier way than using SCD.
step1: Install Auto Driver Installer
step2: Update drivers needed
step3: Done!
Description
Specification
- Motherboard Type: Desktop
- Form Factor: Mini ITX
- Socket: Embedded CPU
- CPU: Intel Quad-Core Processor N100 (Up to 3.4 GHz)
- #Hide#DDR Type: DDR4
- CPU Support: N/A (Integrated CPU)
- RAM Technology: “Supports DDR4 non-ECC, un-buffered memory”
- RAM Slots: 1 x DIMM
- RAM Speeds: Up to 3200 MHz
- Maximum Memory: 16GB
- Graphics: Integrated Intel UHD Graphics
24 EUs inside (Up to 750MHz) - Graphics Ports: 1 x VGA
1 x HDMI - PCI/PCI Express: 1 x PCIe 3.0 x4 (supports x2 mode)
- Storage: 2 x SATA III
1 x M.2 (2280) – PCIe 3.0 x2 - Wireless: –
- LAN: GB LAN
- Audio: 7.1 CH HD Audio (Realtek ALC897 Audio Codec)
- USB Ports Supported: Rear:
2 x USB 3.2 Gen1 Type-A
4 x USB 2.0Front:
2 x USB 3.2 Gen1 Type-A
4 x USB 2.0 - Back Panel I/O Ports: 1 x DC Jack (Compatible with 19V power adapters)
2 x Antenna Mounting Points
1 x PS/2 Mouse/Keyboard
1 x Serial Port: COM1
1 x D-Sub
1 x HDMI
2 x USB 3.2 Gen1
4 x USB 2.0
1 x RJ-45 LAN
HD Audio Jacks - Internal I/O Connectors: 1 x Print Port
1 x SPI TPM
1 x Chassis Intrusion and Speaker
2 x Chassis Fan
1 x Front Panel Audio
2 x USB 2.0 Headers
1 x USB 3.2 Gen1 - Accessories: 1 x User Manual
1 x I/O Shield
2 x SATA Data Cables
1 x SATA Power Cable
2 x Screws for M.2 Sockets - Additional Features: See Overview
- Package Type: Retail
- Package Weight: 0.6400 kg
- Warranty: 3 Year Replacement Warranty
- #Hide#M.2 Slot(s): Yes (M.2)
- #Hide#No. LAN Ports: 1 x LAN
- #Hide#Max LAN Speed: GB LAN
