Description

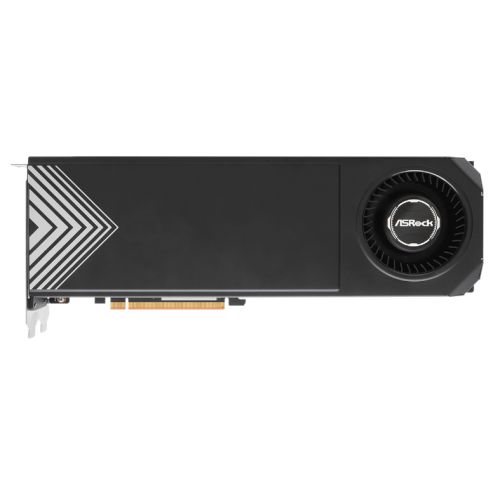

AMD Radeon™ RX 7900 XT Creator 20GB
- Clock: GPU / Memory
- Boost Clock: Up to 2395 MHz
- Game Clock: 2025 MHz
- AMD Radeon™ RX 7900 XT GPU
- 20GB GDDR6 on 320-Bit Memory Bus
- 84 AMD RDNA™ 3 Compute Units (with RT+AI Accelerators)
- 80MB AMD Infinity Cache™ technology
- 12V-2×6 Power Connector
- 3 x DisplayPort™ 2.1, 1 x HDMI™ 2.1
- 12V-2×6 Power Connector
- Multicard For Accelerate Computing
- Efficiency Blower Fan
- VAPOR-CHAMBER Heatsink
- Stylish Metal Backplate
12V-2×6 Power Connector
Simple Installation
The design of a single horizontal 12V-2×6 power connector helps to avoid excessive wiring, thus minimizing installation interference.
Efficiency Blower Fan Design
Designed For Enhanced Airflow
The blower fan efficiently and swiftly dissipates heat towards the rear of the graphics card.
Vapor Chamber Design
Distributing Heat Evenly.
The vapor chamber evenly and quickly distributes heat and deliver the heat to aluminium cooling fins.
2-slot Design
Thinner Design for Airflow
The 2-slot design ensures effective cooling when using multiple graphics cards.
Stylish Backplate
Solid and Cool.
Designed to avoid PCB bending. The fancy outlook makes the graphic card more legendary in visual. It also helps to enhance cooling with the premium thermal pads equipped backside.
0dB Silent Cooling
Spin For Cooling, Stop For Silence.
The fan spins when the temperature goes high for the optimal cooling, and stops when the temperature goes low for the complete silence.
Nano Thermal Paste
Perfect Thermal Teamwork.
Eliminate the gaps in the contact area to maximize heat transfer and thermal efficiency.
Premium Thermal Pad
Better Heat Transfer.
The premium thermal pad helps to transfer the heat of the components to the heatsink, improving heat dissipation.
Precise Screw Torque
Optimized Mounting Pressure.
ASRock adopts precise screw torque when assembling its graphics cards to optimize the cooler mounting pressure to improve thermal efficiency while avoiding damage to GPU die.
Japanese SP-Cap
With a high conductive polymer as the electrolyte, it has a lower equivalent series resistance (ESR) to provide outstanding electrical characteristics. In addition to that, it also has excellence in product operational life, reliability and heat resistance.
SPS (Smart Power Stage)
Dr.MOS design features the latest SPS (Smart Power Stage) technology. It’s optimized for monitoring current and temperature of each phase, thus delivering smoother and neater power to the GPU with enhanced performance and OC capability.
Premium 100A Power Choke
Compared to traditional chokes, ASRock’s premium 100A power chokes effectively make the saturation current up to three times better, thus providing enhanced and improved Vcore voltage to the graphics card.
2oz Copper PCB
Using only carefully selected copper materials for PCB layers, 2oz Copper PCB delivers lower temperature and higher energy efficiency for overclocking.
Matte Black PCB
A new mysterious matte black and copper color scheme to match the prestigious components on ASRock's high-end graphics card.
High Density Glass Fabric PCB
High Density Glass Fabric PCB design that reduces the gaps between the PCB layers to protect the graphics card against electrical shorts caused by humidity.
ASRock Tweak 2.0
Pro and Easy-to-Use Tuning Utility.
Provides the smart fan speed control and instant performance tweaking.
8K Resolution Support
Not only can it handles 4K graphics but also supports the next generation 8K video output for the ultimate visual experience.
PCI® Express 4.0 Support
This graphics card features PCI® Express 4.0 support, with a throughput of 16 GT/s and enables two times the bandwidth compared to PCI® Express 3.0. Get ready for the next generation of PC gaming.
Description
Specification
- Chipset Manufacturer: AMD
- Interface: PCI Express 4.0
- Graphics Chipset: AMD RX 7900 XT
- Memory Size: 20GB
- Memory Type: DDR6
- Memory Interface: 320-bit
- Core Clock: Boost Clock: Up to 2395 MHz
Game Clock: 2025 MHz - Memory Clock: 20 Gbps
- CUDA Cores / Stream Processors: 5376 Stream Processors
- Outputs: 1 x HDMI 2.1 (up to FRL 12Gbps)
3 x DisplayPort 2.1 with DSC (up to UHBR3 13.5Gbps) - HDCP Support: Yes
- Resolution: Digital Max Resolution: 7680 x 4320
- DirectX Support: DirectX 12 Ultimate
- Max Display Support: 4
- Cooling: Blower Fan Design
Vapor Chamber
0dB Silent Cooling
Nano Thermal Paste
Premium Thermal Pad - PSU Requirements: 750W or greater recommended
- Connectors Required: 1 x 12V-2×6 Power
- Software: AMD Adrenalin Edition
- Additional Features: See Overview
- Dimensions: 312* x 111 x 39 mm
*It’s recommended to leave an additional 3cm space to install the power connector - Slot Size: 2 Slot
- Accessories: 1 x Quick Installation Guide
1 x 16Pin to 3x8Pin Power Cable - Package Type: Retail
- #Hide#HDMI: Yes (HDMI)
- #Hide#DisplayPort: Yes (DisplayPort)
- Package Weight: 2.1400 kg
- Warranty: 2 Year Replacement Warranty
