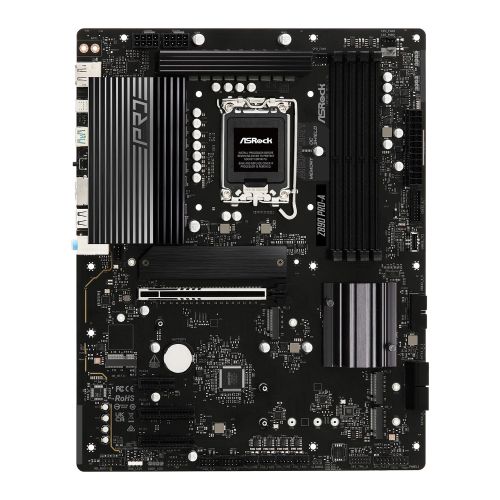

Z890 PRO-A
Pro-A series is designed for enhanced stability, durability, and efficiency, it offers reliable performance, user-friendly features and a streamlined aesthetic, making it ideal for daily computing needs.
- Supports Intel® Core™ Ultra Processors (Series 2)(LGA1851)
- 16+1+1+1+1 Power Phase, Dr.MOS for VCore+GT
- 4 x DDR5 DIMMs
- Supports Dual Channel, up to 8666+ (OC)
- 1 PCIe 5.0 x16, 2 PCIe 4.0 x4, 1 PCIe 4.0 x1, 1 M.2 Key E for WiFi
- Graphics Output Options: 1 HDMI, 1 DisplayPort, 1 Thunderbolt™ 4 Type-C
- Realtek ALC897 7.1 CH HD Audio Codec
- 4 SATA3
- 1 Blazing M.2 (PCIe Gen5 x4)
- 2 Hyper M.2 (PCIe Gen4 x4)
- 1 Hyper M.2 (PCIe Gen4 x4 & SATA3)
- 1 Thunderbolt™ 4 Type-C (Rear)
- 2 USB 3.2 Gen2x2 Type-C (1 Rear, 1 Front),
- 1 USB 3.2 Gen2 Type-A (Rear),
- 6 USB 3.2 Gen1 (2 Rear, 4 Front),
- 8 USB 2.0 (4 Rear, 4 Front)
- Realtek 2.5G LAN
- Supports BIOS Flashback, Memory OC Shield, Durable Caps with 1000uF Capacitance
Optimized VRM Design
-
Durable Cap with 1000uF Capacitance – The durable capacitors with 1000uF capacitance offers several benefits: Higher Capacitance, Lower Ripple, More Stable Output Current and Better Performance & System Stability
-
16+1+1+1+1 Power Phase Design – Featuring sturdy components and completely smooth power delivery to the CPU. Plus, it offers unmatched overclocking capabilities and enhanced performance with the lowest temperature for advanced gamers as well.
-
Dr. MOS – Dr.MOS is the integrated power stage solution which is optimized for synchronous buck-set down voltage applications! Compared to traditional discrete MOSFETs, it intelligently delivers higher current for each phase, thus providing improved thermal result and superior performance.
- Hi-Density Power Connector – CPU overclocking requires higher current, ASRock Hi-Density Power connectors is able to withstand current higher traditional CPU 8-pin and ATX 24-pin connector, giving a more stable system as well as lowering the risk of fire under heavy overclocking.
2oz Copper PCB
2 ounce copper inner layers that provide stable signal traces and power shapes! Delivering lower temperature and higher energy efficiency for overclocking.
PCIe Gen5 Blazing M.2
The Blazing M.2 accommodates the latest PCI Express 5.0 standard to perform twice the bandwidth compared to previous generation, with a breathtaking 128GB/s transfer speed, it is ready to unleash the full potential of future ultrafast SSDs.
Extreme Memory Overclocking
- DDR5 XMP & EXPO Support – Derived from the “built for stable and reliable” designing concept, ASRock does not compromise on any details. This motherboards is built with high quality materials, enthusiasts are able to enjoy the boost of DDR5 memory overclocking performance by enabling the pre-tested profiles. Make sure the memory modules are Intel® XMP/AMD EXPO™ capable and overclocking can be made so affordable, satisfying and absolutely no sweat at all.
- Memory OC Shield – ASRock's exclusive Memory OC Shield is a patented feature engineered to reduce electromagnetic interference (EMI) that could affect memory overclocking. By shielding memory modules from EMI noise and optimizing the layout, the Memory OC Shield enhances stability and reliability during high-frequency operations, enabling users to push their systems to the maximum potential.
DIY Friendly Design
- M.2 Bottom Heatsink – The M.2 bottom heatsink is able to dissipate heat of the M.2 SSD efficiently through the motherboard PCB, maximize performance while maintaining system stability.
Intelligent Cooling Design
- Aluminum Heatsink – The first thing that catches the eye is the optimized Aluminum Heatsink Design. Heatsinks are crucial for efficient heat dissipation, especially during heavy workloads like gaming or productivity tasks. Motherboard that built with heatsinks can effectively manage thermal performance, hence ensure system stability and durability effortlessly.
- PWM/DC Fan Support – ASRock fan headers automatically detect whether fans are running in DC or PWM mode, allowing users to fine-tune the fan curve and achieve quieter operation.
- Fan-Tastic Tuning – ASRock A-Tuning Fan-Tastic Tuning function enables users to auto-detect the minimum duty of each fan with a single click. Users can also easily adjust the fan curve via the visualized UI interface, meeting their system's cooling performance and noise reduction requirements.
Thunderbolt™ 4 Type-C
Thunderbolt™ 4 technology brings speed and versatility to the most advanced USB Type-C, offering a fast and simple level of connection for work or home. It enables lightning-fast data transfer up to 40Gbps and connects external monitors, Thunderbolt™, and USB devices with a single Thunderbolt 4 cable.
Front Panel USB 3.2 Gen2x2 Type-C Header
The latest USB 3.2 Gen2x2 Type-C delivers up to 20 Gbps data transfer rate which is 2x as fast as previous generation, providing a blazing fast data transfer interface with reversible USB Type-C design that fits the connector either way.
Dragon 2.5 Gb/s LAN
The intelligent 2.5Gb/s LAN platform is built for maximum networking performance for the demanding requirements of home networking, content creators, online gamers and high-quality streaming media. Boost networking performance up to 2.5X the bandwidth compared to the standard gigabit Ethernet, you’ll enjoy the faster and uncompromised connectivity experience for gaming, file transfers and backups.
Polychrome RGB
This motherboard features onboard RGB headers and addressable RGB headers that allow motherboard to be connected to compatible LED devices such as strip, CPU fans, coolers, chassis and so on. Users may also synchronize RGB LED devices across the Polychrome RGB Sync-certified accessories to create their own unique lighting effects.
EZ Setting
- Auto Driver Installer – No need to worry about lack of disk drive! Asrock preinstall LAN driver to ensure that you are able to install all drivers needed in an easier way than using SCD.
- BIOS Flashback – Get the most convenient BIOS flashing with just a simple click. Users can easily achieve the latest BIOS support with a USB and power supply, No CPU, RAM or other components required.
-
Post Status Checker – An easy troubleshooting tool that shows the CPU / DRAM / VGA / BOOT operation every time you start up the system. Post Status Checker is an fast and easy way to identify the source of the problem.
Description
Specification
- Motherboard Type: Desktop
- Form Factor: ATX
- Socket: Intel 1851
- Chipset: Intel Z890
- #Hide#DDR Type: DDR5
- CPU Support: Support Intel Core Ultra Processors (Series 2)
Click here for CPU support - RAM Technology: “DDR5 (Dual Channel)
Non-ECC, Un-buffered, Clocked Unbuffered DIMM (CUDIMM)
Supports Intel XMP” - RAM Slots: 4 x DIMM
- RAM Speeds: Up to 8666MHz+(OC)
- Maximum Memory: 256GB
- Graphics: Integrated Graphics
Graphics specifications may vary between CPU types - Graphics Ports: 1 x HDMI
1 x DisplayPort
1 x Thunderbolt 4 - PCI/PCI Express: Intel Core Ultra CPUs (Series 2):
1 x PCIe 5.0 x16 (supports x16 mode)*Intel Z890 Chipset:
2 x PCIe 4.0 x4 (supports x4 mode)
1 x PCIe 4.0 x1* PCIE1 supports PCIe riser cards to extend one x16 slot to x8/x8 or x8/x4/x4 slots.
- Storage: 4 x SATA III
4 x M.2Intel Core Ultra CPUs (Series 2):
M.2_1 (2280) – PCIe 5.0 x4
M.2_2 (2280) – PCIe 4.0 x4Intel Z890 Chipset:
M.2_3 (2280) – PCIe 4.0 x4
M.2_4 (2230/2242/2260/2280) PCIe 4.0 x4 & SATA - RAID: “Supports RAID 0, 1, 5 and 10 for SATA storage devices
Supports RAID 0, 1, 5 and 10 for M.2 NVMe storage devices” - Wireless: –
- LAN: 2.5GB LAN
- Audio: 7.1 CH HD Audio (Realtek ALC897 Audio Codec)
- USB Ports Supported: Rear:
1 x Thunderbolt 4 (USB Type-C) (up to 15W PD 3.0)
1 x USB 20Gbps Type-C
1 x USB 10Gbps Type-A
2 x USB 5Gbps Type-A
4 x USB 2.0Front:
1 x USB 20Gbps Type-C
4 x USB 5Gbps
4 x USB 2.0 - Back Panel I/O Ports: 2 x Antenna Mounting Points
1 x HDMI
1 x DisplayPort 1.4
1 x Thunderbolt 4 Type-C (40 Gb/s)
1 x USB 3.2 Gen2x2 Type-C
1 x USB 3.2 Gen2 Type-A
2 x USB 3.2 Gen1
4 x USB 2.0
1 x RJ-45 LAN
1 x BIOS Flashback Button
HD Audio Jacks - Internal I/O Connectors: 1 x SPI TPM
1 x Power LED and Speaker
1 x RGB LED
3 x Addressable LED
2 x CPU Fan
5 x Chassis Fan
1 x AIO Pump Fan
1 x 24 pin ATX
2 x 8 pin 12V
1 x Front Panel Audio
2 x USB 2.0 - .: 2 x USB 3.2 Gen1
1 x Front Panel Type-C USB 3.2 Gen2x2 - Accessories: 1 x I/O Shield
2 x SATA Data Cables
1 x Screw for M.2 Socket - Additional Features: See Overview
- Package Type: Retail
- Package Weight: 1.9000 kg
- Warranty: 3 Year Replacement Warranty
- #Hide#M.2 Slot(s): Yes (M.2)
- #Hide#No. LAN Ports: 1 x LAN
- #Hide#Max LAN Speed: 2.5GB LAN
