Description

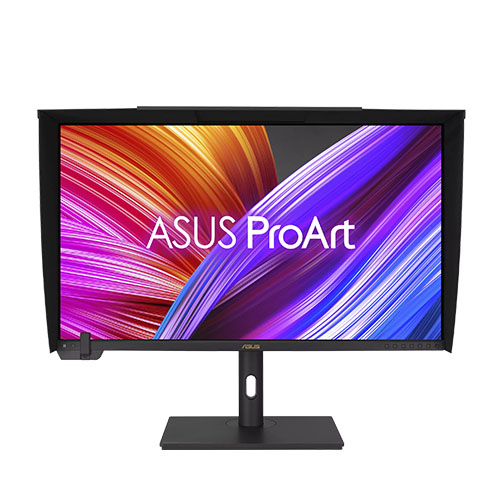

ASUS ProArt Display PA32UCXR Professional Monitor – 32-inch, 4K UHD (3840 x 2160), 2,304 zones Mini LED Backlight, Built-in Motorized Colorimeter, Self / Auto Calibration, HDR-10, HLG, Dolby Vision, 99% Adobe RGB, 97% DCI-P3, deltaE < 1, Thunderbolt 4 PD 90W, VESA DisplayHDR 1400, Hardware Calibration, Calman Ready, ColourSpace Integration, Ergonomic Stand, Green Sustainability
- 32-inch mini LED backlight panel with 2304-zone local dimming for a 1,000,000:1 contrast ratio, with 1600 nits peak brightness and 1000 nits of sustained full-screen brightness
- True 10-bit color depth and Quantum Dot technology provide 100% sRGB, 99% Adobe RGB, 97% DCI-P3 and Rec. 2020 color gamut, along with industry-leading Delta E < 1 color accuracy
- Built-in colorimeter supports Self / Auto calibration, as well as Calman and Light Illusion ColourSpace CMS professional calibration software
- Multiple HDR format support, including Dolby Vision, HLG and HDR10
- Rich connectivity including dual Thunderbolt 4 up to 90W Power Delivery, HDMI, DisplayPort, and a built-in USB Hub
- Recyclable paper packaging, plus energy-efficient performance that meets environmental standards
1600 Nits Mini-LED Monitor with Built-in Colorimeter for Ultimate Realism
ASUS ProArt Display PA32UCXR features mini-LED backlighting with 2304-zone local dimming, 1600 nits peak brightness, and up to 1000 nits sustained brightness without partial patch limitation. It boasts an industry-leading Delta E < 1 colour difference, and features a built-in motorized flip colorimeter to ensure professional-grade colour accuracy. Two Thunderbolt 4 ports and a host of other connectivity options enable seamless and efficient creative workflows, making this monitor ideal for content creators.
Empowering Content Creators
Colorists
The 32-inch mini -LED backlit 4K panel with 2304-zone local dimming offers higher luminance with full white 1000 nits brightness and deeper black hues for exceptional color contrast and accurate reproduction of HDR content.
Filmmakers & Video Editors
The PA32UCXR is pre-calibrated at the factory to ensure industry-leading color fidelity, featuring a wide color gamut and Delta E < 1 color difference, plus auto and self- calibration functions.
Designers & Photographers
PA32UCXR provides truly precise color reproduction to bring out the details in photographs or digital artwork. It delivers ultra-high-quality visuals and ensures that creative details aren't lost on the journey from click to print or production.
Deeper Blacks, Brighter Whites
A peak brightness of 1600 nits and an industry-leading 1000 nits of full-screen sustained brightness allow for outstanding contrast between the deeper blacks and gleaming whites.
Visuals with Impeccable Levels of Detail
Standard mini LED technology employs central control via data scanning for chained zones to lower costs by using fewer control ICs. This approach requires brighter imagery to achieve optimal performance, however this can lead to screen flickering, irregular brightness, and a shorter LED lifespan.
In contrast, ProArt Display PA32UCXR boasts an impressive 2304-zone local dimming. It uses numerous control ICs to independently manage backlighting zones to effectively minimize onscreen flicker during transitions and ensure high levels of sustained brightness. This gives PA32UCXR outstanding brightness uniformity, efficient heat dissipation, and improved HDR image quality.
Intuitive and Intelligent Calibration
Self Calibration
ProArt Displays boast an innovative self-calibration feature for the embedded colorimeter. This standalone solution is compatible with any operating system and doesn't require additional calibration software. Users may run the calibration process at any time, or schedule it during off hours through the OSD menu.
ProArt Calibration
ASUS ProArt Calibration technology saves all color parameter profiles on the ProArt monitor's internal scaler IC chip, instead of the PC. The monitor can be calibrated and the look-up table subsequently rewritten, allowing users to connect it to devices with different operating systems or applications without needing to adjust settings. Users can also use ProArt Calibration to schedule regular calibration intervals.
*ProArt Calibration support will be available Q1 2024 via firmware update.
ProArt Colour Center
ProArt Colour Center offers remote group control and calibration tools, allowing users to run vital tasks from a centralized location. Calibration schedules and customized color parameters can be set to maintain consistent, professional-level accuracy.
*ProArt Color Center support will be available Q1 2024 via firmware update.
Seamless Calibration
In addition to having a built-in colorimeter, ProArt displays PA32UCXR is compatible with most major calibrators, including those from X-Rite, Datacolor and Klein. They also work seamlessly with Calman and Light Illusion ColourSpace CMS professional hardware calibration software.
*Calman Ready and Light Illusion ColourSpace CMS will be available Q1 2024 via firmware update.
Enjoy true-to-life color
PA32UCXR exceeds industry colour reproduction standards with its 99% Adobe RGB, 97% DCI-P3, 100% sRGB, 100% Rec. 709, and 87% Rec. 2020 colour gamut, making it ideal for video editing and post-production. Its true 10-bit IPS panel is able to showcase more than 1.07 billion colours to give content creators a vast colour spectrum to work with.
Class-Leading Colour Fidelity
Each ProArt display is factory pre-calibrated using a new, three-scale process to guarantee industry-leading colour fidelity. The display then undergoes stringent testing using ASUS advanced grayscale tracking technology to ensure smoother color gradations, better uniformity and high color accuracy with a Delta E < 1 color difference value. Each grayscale level is also carefully measured and set to ensure compliance with the precise DICOM standard for medical use.
Create In Ultra-Vivid HDR
ASUS Smart HDR Technology
Exclusive ASUS Smart HDR technology enables ProArt Display PA32UCXR to support multiple HDR formats, including Dolby Vision, HLG, and HDR10.
- Dolby Vision transforms the viewing experience with unmatched levels of brightness, contrast, and colours.
- HLG allows users to view and create material for broadcast and satellite TV platforms such as BBC iPlayer, Japan NHK TV, and DirecTV.
- HDR10 support ensures compatibility with existing streaming video services and a growing list of HDR-enabled games.
Multiple PQ Curves
ASUS ProArt displays support multiple HDR10 curves, including PQ Hard Clip, PQ Optimized, and PQ Basic, which can cover all content creation needs.
- PQ Hard Clip – This setting preserves the PQ curve until it displays maximum luminance. Anything brighter will be mapped to the maximum luminance of the display.
- PQ Optimized – This PQ curve setting reproduces accurate gradations that correspond to the maximum brightness of the monitor to deliver optimized HDR performance.
- PQ Basic – This setting offers general HDR performance.
HDR Preview
HDR Preview enables a direct camera-to-monitor connection to view captured HDR content with its full tonal range. It also works within most video editing software platforms, providing accurate simulations of the final output for an easier, more streamlined editing experience.
*Raw data/camera imagery must support HDR mode and the PQ curve.
Streamlined, Efficient Workflows
Multi-device Connectivity
PA32UCXR offers dual Thunderbolt 4 ports, DisplayPort 1.4, and two HDMI 2.0 ports for compatibility with current and future displays and peripherals. One of the Thunderbolt 4 ports offers up to 90 W Power Delivery to charge devices as well as the ability to daisy-chain several displays though a single port, without the need for a hub or switch. PA32UCXR also includes an earphone jack and USB hub.
Diverse Viewing Options
- Picture-by-Picture (PbP) – View content from up to four input sources simultaneously. Each window's colour mode can also be configured to sRGB, Adobe RGB, DCI-P3, Rec. 2020, User Mode 1, User Mode 2 and User Mode 3.
- Picture-in-Picture (PiP) – This mode places content from a second input source in a smaller window that can be placed in any corner of the display.
Ergonomic Design
The ergonomic stand offers tilt, swivel, pivot, and height adjustments for the perfect viewing position. Being able to pivot the screen 90 degree clockwise or anticlockwise to portrait orientation comes in handy when working with posters, playbills, and other large-format projects. A quick-release feature allows users to VESA mount the monitor to a wall to save desktop space.
Detachable Monitor Hood
A wraparound hood reduces on-screen reflections from nearby light sources, enabling users to work with confidence in the studio or on location.
Intelligent Sensors
- Ambient Light Sensor – Automatically dims or brightens the display depending on environmental lighting
- Proximity Sensor – Automatically dims the display when it detects no user in front of the monitor
Description
Specification
- #Hide#Size Range: 28″” +
- Screen Size: 32″”
- Backlight: Mini LED
- Panel Type: IPS
- Connectors: 1 x DisplayPort 1.4
2 x HDMI 2.0
2 x Thunderbolt 4 (Daisy Chain)
3 x USB 3.2 Gen 2 Type-A
1 x USB 3.2 Gen 2 Type-C
Earphone Jack
USB-C Power Delivery : 90W - Speakers: Yes (Speakers)
- Touchscreen: No
- Resolution: 3840 x 2160
- Contrast Ratio: “HDR (Max): 1,000,000:1
Typ.: 1000:1″ - Aspect Ratio: 16:9
- Response Time: 5ms
- Max Refresh Rate: 60Hz
- Brightness: “HDR, Peak: 1,600 cd/m2
Typical: 1000cd/m2″ - Viewing Angle: 178°/178°
- Display Colours: 1073.7M (10 bit)
- Stand Adjustments: Tilt: +23° ~ -5°
Swivel: +30° ~ -30°
Pivot: +90° ~ -90°
Height Adjustment: 0~100mm - Power: “Power Consumption: <46.62W
Power Saving Mode: <0.5W
Power Off Mode: 0W (hard switch)
Voltage: 100-240V, 50/60Hz” - Security Enabled: Kensington Lock
- VESA Compatible: 100 x 100 mm
- Dimensions: With Stand: 72.7 x 60.1 x 24.5 cm
Without Stand: 72.7 x 44.5 x 9.0 cm - Weight: With Stand: 13.8 kg
Without Stand: 9.2 kg - Additional Features: See Overview
- Accessories Supplied: DisplayPort cable
Monitor hood
Power cord
Quick release stand
Quick start guide
Thunderbolt™ 4 Cable
USB-C to A cable
Warranty Card
Welcome Card - #Hide#Resolution: 3840 x 2160
- #Hide#Max Refresh Rate: 60 Hz
- Package Weight: 20.5000 kg
- Warranty: 3 Years
- #Hide#Height Adjustable: Yes (Height Adjust.)
- #Hide#HDMI: Yes (HDMI)
- #Hide#DisplayPort: Yes (DisplayPort)
