Description
Whole-home Coverage

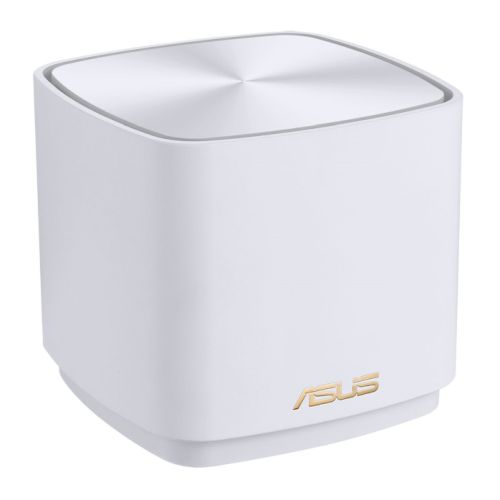

The ZenWiFi XD5 features unique technologies that give you superfast, reliable and secure WiFi connections — inside or outside your home!
WiFi 6
True 8K Streaming
ZenWiFi XD5 puts your WiFi into top gear! With a total bandwidth of up to of 3000 Mbps, it's up to 3X faster* than WiFi 5 routers
Explore ultimate WiFi 6 performance
The ASUS ZenWiFi XD5 supports high-speed 160MHz bandwidth. It dramatically increases network capacity while reducing congestion, delivering higher performance for every WiFi 6 device.
Flexible Network Naming
Uniquely, ZenWiFi lets you choose how you name your WiFi networks: a single name for everything, or separate names for each frequency band. The choice is yours!
3-step setup with the ASUS Router app
ASUS router app user interface.
- Turn on ZenWiFi XD5
- Create a WiFi network name and an admin account
- Wait for 3 minutes, and you're done!
What makes ZenWiFi XD5 setup so easy?
One-time setup, with auto synchronization for all the hubs in each package
Use a network cable to connect your modem to the WAN port of one XD5. This ZenWiFi XD5 will be the AiMesh router, and the other two ZenWiFi XD5 will be the AiMesh nodes.
Make the Internet a Safer Place for Everyone
AiProtection Classic with Parental Controls is free for life. It gives you total peace of mind, and you can keep an eye on everything that's happening on your network via the mobile app.
Parental Controls
URL filter and scheduling allow you to protect your family from unhealthy Internet usage behavior.
Smart Looks for Smart Homes
ZenWiFi XD5 works perfectly with smart-home services — including Alexa skills — and is available in charcoal or white to suit your décor.
Space-saving and Great Design
Comes with mounting holes and a screw pack. Hang it on the wall or place it anywhere, the choice is yours!
AiMesh Technology
Easy setup. Flexible management.
Even non-experts can quickly set up AiMesh technology, while more experienced users will appreciate the comprehensive advanced networking features.
Description
Specification
- Type: Mesh Wi-Fi System/Router
- Connectivity: Wireless
- Wi-Fi Rating: AX3000
- Max Single Band Wi-Fi Rate: 2402 Mbps
- Max Wired Transfer Rate: 10/100/1000 Mbps
- Bands: Dual Band
- Signal Rate: 2.4G Hz: 574 Mbps
5 GHz: 2402 Mbps - Interface(s): 1 x RJ45 for Gigabits BaseT for WAN/LAN
1 x RJ45 for Gigabits BaseT for LAN - Standards: IEEE 802.11a
IEEE 802.11b
IEEE 802.11g
WiFi 4 (802.11n)
WiFi 5 (802.11ac)
WiFi 6 (802.11ax)
IPv4
IPv6 - Frequency: 2.4GHz & 5GHz
- Button(s): “WPS Button, Reset Button”
- Power Supply: AC Input : 110V~240V(50~60Hz)
DC Output : 12 V with max. 1.5 A current - Antenna(s): 2 x internal dual-band antennas
- Wireless Functions: IPv6
UTF-8 SSID
Guest Network
Guest Network Connection time limit
WPS - Security: “Wi-Fi Encryption:
WPA3-Personal, WPA/WPA2/WPA3-Personal, WPA/WPA2-Enterprise, WPS supportAiProtection:
AiProtection Classic
Malicious site blocking
Infected Device Prevention and BlockingParental Control:
Parental Control Customized Internet schedule” - DHCP: DHCP Server
- Port/NAT Forwarding: Yes
- VPN Support: VPN Client L2TP
VPN Client OVPN
VPN Client PPTP
VPN Server IPSec
VPN Server OVPN
VPN Server PPTP - Management: ASUS Router APP
- Dynamic DNS: Yes
- USB Application: –
- Additional Features: See Overview
- Package Contents: ZenWiFi XD5
RJ45 Ethernet cable
Power adapter
Quick start guide
Warranty Card
Screw Pack - Package Type: Retail
- Package Weight: 0.7300 kg
- Warranty: 3 Years
- #Hide#Wireless Standard: Wi-Fi 6/6E (802.11ax)
- #Hide#Mesh Wi-Fi Support: Yes (Mesh Wi-Fi)
