Description

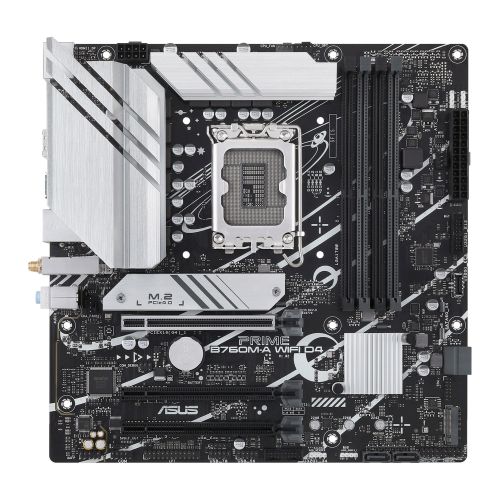

Intel® B760 (LGA 1700) mATX motherboard, PCIe 4.0, two M.2 slots, Realtek 2.5Gb Ethernet, Wi-Fi 6, DisplayPort, Dual HDMI®, SATA 6 Gbps, rear USB 3.2 Gen 2, front USB 3.2 Gen 1 Type-C®, Aura Sync
- Intel® LGA 1700 Socket: Ready for 13th and 12th Gen Intel® processors
- Ultrafast Connectivity: PCIe 4.0, two M.2 slots, Realtek 2.5Gb Ethernet, Wi-Fi 6, rear USB 3.2 Gen 2, front USB 3.2 Gen 1 Type-C®
- Comprehensive Cooling: VRM heatsinks, M.2 heatsink, PCH heatsink, hybrid fan headers and Fan Xpert 2+
- ASUS OptiMem II: Careful routing of traces and vias, plus ground layer optimizations to preserve signal integrity for improved memory overclocking
- Aura Sync RGB Lighting: Onboard Addressable Gen 2 headers and Aura RGB header for RGB LED strips, easily synced with Aura Sync-capable hardware
Prime
ASUS Prime series motherboards are expertly engineered to unleash the full potential of 13th Gen Intel® Core™ Processors. Boasting a robust power design, comprehensive cooling solutions and intelligent tuning options, PRIME B760M-A WIFI D4 provides users and PC DIY builders with a range of performance optimizations via intuitive software and firmware features.
Flexibility
Comprehensive controls form the foundation of the ASUS PRIME series. The PRIME B760 motherboard packs flexible tools to tune every aspect of your system, enabling performance tweaks to perfectly match the way you work to maximize productivity.
Cooling
PRIME B760 series are engineered with multiple onboard heatsinks and an array of hybrid fan headers to ensure your rig stays cool and stable under intense workloads.
Performance
The PRIME B760 series are built to handle the high core counts and bandwidth demands of 13th Gen Intel® Core™ Processors. ASUS B760 motherboard provides all the fundamentals to boost daily productivity, so your system will be ready for action with stable power, intuitive cooling and flexible data transfer options.
Customization
PRIME B760 series add the nuanced details that improve every experience, from exclusive codecs that provide pristine audio quality to intuitive RGB lighting controls that let you customize your system to create a uniquely personal look.
** Click here for full product details **
Description
Specification
- Motherboard Type: Desktop
- Form Factor: Micro ATX
- Socket: Intel 1700
- Chipset: Intel B760
- #Hide#DDR Type: DDR4
- CPU Support: Click here for CPU support
- RAM Technology: DDR4 (Dual Channel)
- RAM Slots: 4 x DIMM
- RAM Speeds: Up to 5333(OC)
- Maximum Memory: 128GB
- Graphics: Integrated Graphics*
*Graphics specifications may vary between CPU types
- Graphics Ports: 2 x HDMI
1 x DisplayPort - PCI/PCI Express: 1 x PCIe 4.0 x16
1 x PCIe 4.0 x16 (supports x4 mode)
1 x PCIe 4.0 x16 (supports x1 mode) - Storage: 4 x SATA III
1 x M.2 (2242/2260/2280) – PCIe
1 x M.2 (2242/2260/2280) – PCIe - RAID: Intel Rapid Storage Technology supports SATA RAID 0/1/5/10
- Wireless: Wi-Fi 6
2×2 Wi-Fi 6 (802.11 a/b/g/n/ac/ax)
Supports 2.4/5GHz frequency band
Bluetooth v5.2 - LAN: 2.5GB LAN
- Audio: Realtek 7.1 Surround Sound High Definition Audio CODEC
- USB Ports Supported: “2 x USB 3.2 Gen2 Type-A (at back)
4 x USB 3.2 Gen1 (at mid-board)
9 x USB 2.0 (4 at back, 5 at mid-board)
1 x Front Panel Type-C USB 3.2 Gen1 Header” - Back Panel I/O Ports: 2 x USB 3.2 Gen2 Type-A
4 x USB 2.0
1 x DisplayPort
2 x HDMI
1 x Wi-Fi Module
1 x Realtek 2.5Gb Ethernet
3 x Audio jacks
1 x PS/2 Keyboard/Mouse combo - Internal I/O Connectors: 1 x 4-pin CPU Fan
1 x 4-pin CPU OPT Fan
2 x 4-pin Chassis Fan
1 x 24-pin Main
1 x 8-pin +12V
2 x M.2 (Key M)
4 x SATA 6Gb/s
2 x USB 3.2 Gen1
1 x USB 3.2 Gen1 Type-C
2 x USB 2.0
1 x USB 2.0
3 x Addressable Gen2 - .: 1 x Aura RGB
1 x Clear CMOS
1 x COM Port
1 x Front Panel Audio
1 x LPT
1 x S/PDIF Out
1 x SPI TPM (14-1pin)
1 x 20-3 pin System Panel - Accessories: 2 x SATA 6Gb/s cables
1 x ASUS Wi-Fi moving antennas
1 x I/O Shield
1 x M.2 Rubber Package
1 x Screw package for M.2 SSD
1 x User guide - Additional Features: See Overview
- Package Type: Retail
- Package Weight: 1.6000 kg
- Warranty: 3 Years
- #Hide#M.2 Slot(s): Yes (M.2)
- #Hide#No. LAN Ports: 1 x LAN
- #Hide#Max LAN Speed: 2.5GB LAN
- #Hide#Wi-Fi: Yes (Wi-Fi)
