Description
ASUS Prime series motherboards are expertly engineered to unleash the full potential of AMD Ryzen™ 9000 series processors.

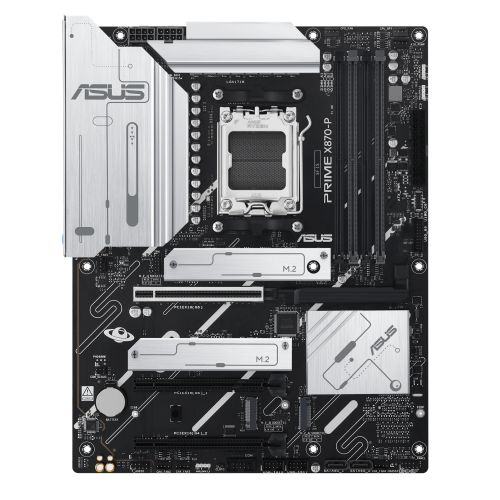

Boasting a robust power design, comprehensive cooling solutions and intelligent tuning options, the PRIME X870-P motherboard provides users and PC DIY builders with a range of performance optimizations via intuitive software and firmware features. It's designed to be Advanced AI PC-ready, offering the power and connectivity needed for demanding AI applications.
- Advanced AI PC-ready
- 14+2+1 DrMOS
- PCIe 5.0 x16 slot with full support for next-gen graphics card
- DDR5 slots
- Four M.2 slots
- Realtek 2.5 Gb Ethernet
- USB 40Gbps
- HDMI
- USB 10Gbps Type-A
- Front USB 10 Gbps Type-C connector
- SATA 6Gbps ports
- USB 5 Gbps header
- Aura Sync RGB lighting
Robust power design
Stable power is crucial for maximizing the performance of AMD processors. The PRIME X870-P is designed to meet the needs of high-core-count CPUs. It features 14(80A) + 2(80A) + 1(80A) power stages that integrate high-side and low-side MOSFETs and drivers into packages rated for up to 80 amperes each. This configuration ensures optimal power delivery, efficiency, stability and performance for both current and future AMD processors.
- Eight-layer PCB design – Enhanced stability and overclocking.
- ProCool connectors – Proprietary 8 + 8 pin connectors improve PSU connection.
- Power Saving – Optimize power with CPU, lighting, and fan settings.
- Digi+ VRM control – Real-time voltage control.
Enhanced DDR5 performance
Comprehensive memory tuning options are the cornerstone of PRIME motherboards. The PRIME X870-P maximizes the potential of your DDR5 modules, from entry-level to extreme-speed kits.
For entry-level modules without EXPO™ support, ASUS Enhanced Memory Profile (AEMP) automatically detects memory chips and provides optimized profiles for enhanced performance.
For those looking to surpass stock DDR5 speeds, the PRIME X870-P offers extensive AMD Extended Profiles for Overclocking (EXPO™) support and a wide array of UEFI settings for further performance tweaks.
Four M.2 slots (up to 128 Gbps)
PRIME X870-P offers a total of four M.2 slots, including one that supports data-transfer speeds of up to 128 Gbps via PCIe 5.0, two that support 64 Gbps via PCIe 4.0, and one that supports PCIe 3.0. This enables quicker boot-up and app load times with OS or application drives.
Cooler by design
The PRIME X870-P motherboard is engineered with multiple onboard heatsinks and an array of hybrid fan headers to help ensure your rig stays cool and stable under intense workloads.
- ASUS Fan Xpert 4 – ASUS Fan Xpert 4 software offers comprehensive control over fans and AIO coolers. Auto-Tuning mode configures settings with one click, while Extreme Quiet mode reduces fan speeds for silent operation during light tasks. Controls are also available via the UEFI BIOS.
- Cooler compatibility – ASUS AIO coolers offer robust performance, high overclocking potential, bold aesthetics and customizable functionality for new motherboards, empowering you to build your dream gaming rig.
-
AI Cooling II – Optimized thermals and reduced noise via dynamic adjustment of fan speeds, based on CPU temperatures.
Empowering connections
The PRIME X870-P motherboard offers a versatile range of connectivity, including support for PCIe 5.0, Realtek 2.5Gb Ethernet, and an array of USB ports.
- 2.5Gb Ethernet
- PCIe 5.0
- USB 40Gbps
- PCIe 5.0 slot
- USB 10Gbps
Personalization
The PRIME X870-P enhances the user experience across the board, from simplifying BIOS setting adjustments to offering customizable RGB lighting controls for a uniquely personal system aesthetic.
- UEFI BIOS – The UEFI interface delivers easy-to-use configuration options for PC beginners, and advanced features for veterans.
- ASUS GlideX – Enable seamless screen sharing and control across PCs, tablets, and smartphones via wired or wireless connections, supporting multiple platforms.
- ASUS DriverHub – Simplify driver management with automatic detection, one-click installation and update for smooth, efficient system performance.
- Armoury Crate – Customize Aura Sync RGB and control ASUS devices. Includes product registration and updates.
- Aura Sync – Complete RGB lighting control for enthusiast systems, ensuring seamless synchronization with compatible hardware.
- Addressable Gen 2 RGB headers – Three addressable Gen 2 headers detect LED counts on compatible RGB devices, automatically adjusting lighting effects accordingly.
DIY Friendly
The PRIME X870-P motherboard features EZ PC DIY innovations that simplify and speed up the PC building process, making DIY easy and convenient.
- PCIe Slot Q-Release – A physical lever unlocks the first PCIe slot’s security latch with one tap, greatly simplifying the process of detaching a PCIe card from the motherboard when it’s time to upgrade to a new graphics card or other compatible device.
- M.2 Q-Latch – The innovative ASUS Q-Latch makes it easy to install or remove an M.2 SSD without the need for specific tools or screws. This design employs a simple locking mechanism to secure the drive and neatly detach it with one tap.
- Q-LED Core – The Q-LED Core display produces color-coded lights during the Power-On Self-Test (POST) that can help you troubleshoot potential issues.
- Pre-Mounted I/O Shield – Our pre-installed I/O shield safeguards ports, simplifies the build process, increases functionality and enhances aesthetics for PC DIY enthusiasts.
- BIOS FlashBack – BIOS FlashBack™ simplifies BIOS updates. Just load the BIOS file onto a FAT32 USB stick, insert it into the BIOS FlashBack™ port, and press a button—no CPU or memory needed.
- SafeSlot – PCIe 5.0 is twice as fast as PCIe 4.0. ASUS has adapted our SMT manufacturing for the faster SafeSlot, a reinforced metal sheath that ensures secure card installation and faster data speeds.
Description
Specification
- Motherboard Type: Desktop
- Form Factor: ATX
- Socket: AMD AM5
- Chipset: AMD X870
- #Hide#DDR Type: DDR5
- CPU Support: Click here for CPU support
- RAM Technology: “DDR5 (Dual Channel)
ECC and Non-ECC, Un-buffered Memory
Supports AMD EXPO
ASUS Enhanced Memory Profile” - RAM Slots: 4 x DIMM
- RAM Speeds: Up to 8000+MT/s(OC) with Ryzen 9000 & 8000 & 7000 CPUs
- Maximum Memory: 192GB
- Graphics: Integrated Graphics
Graphics specifications may vary between CPU types - Graphics Ports: 1 x HDMI
2 x USB4 (40Gbps) support USB Type-C display outputs - PCI/PCI Express: Ryzen 9000 & 7000 CPUs:
1 x PCIe 5.0 x16 (supports x16 mode)Ryzen 8000 CPUs:
1 x PCIe 4.0 x16 (supports x8/x4 mode)AMD X870 Chipset:
2 x PCIe 4.0 x16 (supports x1 mode) - Storage: 2 x SATA III
4 x M.2Ryzen 9000 & 7000 CPUs:
M.2_1 (2280) – PCIe 5.0 x4Ryzen 8000 CPUs:
M.2_1 (2280) – PCIe 4.0 x4X870E Chipset:
M.2_2 (2242/2260/2280) – PCIe 4.0 x4
M.2_3 (2280 ) – PCIe 4.0 x4
M.2_4 (2280 ) – PCIe 3.0 x2 - RAID: AMD RAIDXpert2 Technology supports both PCIe RAID 0/1/5/10 and SATA RAID 0/1. RAID 5 Function is only supported by AMD Ryzen 9000 series CPU
- Wireless: –
- LAN: 2.5GB LAN
- Audio: Realtek 7.1 Surround Sound High Definition Audio CODEC
- USB Ports Supported: Rear:
2 x USB4 (40Gbps) Type-C
1 x USB 10Gbps Type-A
3 x USB 5Gbps Type-A
4 x USB 2.0Front:
1 x USB 10Gbps Type-C
2 x USB 5Gbps
4 x USB 2.0 - Back Panel I/O Ports: 2 x USB4 (40Gbps) Type-C
1 x USB 10Gbps Type-A
3 x USB 5Gbps Type-A
4 x USB 2.0
1 x HDMI
1 x Realtek 2.5Gb Ethernet
3 x Audio jacks
1 x BIOS FlashBack button - Internal I/O Connectors: 1 x 4-pin CPU Fan
1 x 4-pin CPU OPT Fan
1 x 4-pin AIO Pump
4 x 4-pin Chassis Fan
1 x 24-pin Main
2 x 8-pin +12V CPU
4 x M.2 (Key M)
2 x SATA 6Gb/s
1 x USB 10Gbps Type-C
1 x USB 5Gbps
2 x USB 2.0 - .: 3 x Addressable Gen 2
1 x Clear CMOS
1 x COM Port
1 x Front Panel Audio
1 x S/PDIF Out
1 x SPI TPM (14-1 pin)
1 x 10-1 pin System Panel - Accessories: 2 x SATA 6Gb/s cables
1 x M.2 rubber package
2 x Screw packages for M.2 SSD
1 x Quick start guide - Additional Features: See Overview
- Package Type: Retail
- Package Weight: 1.4860 kg
- Warranty: 3 Years
- #Hide#M.2 Slot(s): Yes (M.2)
- #Hide#No. LAN Ports: 1 x LAN
- #Hide#Max LAN Speed: 2.5GB LAN
