Description

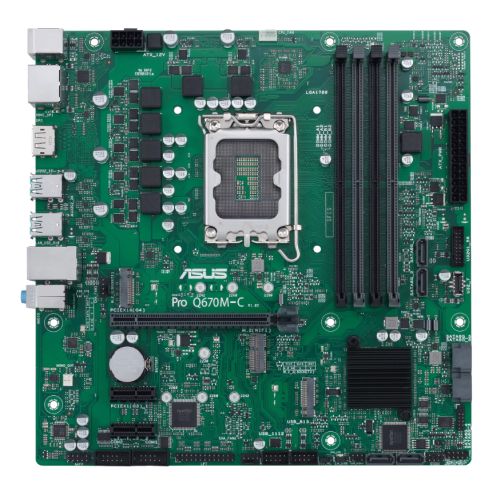

Micro-ATX Q670 business motherboard with Intel® vPro support and enhanced security, reliability, manageability and serviceability
- Intel® LGA 1700 socket: Ready for 12th Gen Intel CoreTM processors
- ASUS CSM program: A stable motherboard supply, end-of-life notifications, and IT software for business motherboards
- ASUS Control Center Express: Integrated IT monitoring and management software that simplifies enterprise-level system administration
- Enhanced system security: Boot defender with NIST SP 800-193 compliance, a self-recovering BIOS, and TPM to safeguard PCs
- Consistent and reliable performance: High-quality components and rigorous testing to help ensure durability in harsh environments
- Efficient management and customization: An event log and commercial BIOS kit to enable easy maintenance
- Better serviceability: Q-LED diagnostic display and COM debug header to facilitate building and support processes
Pro
ASUS Pro business motherboards provide enhanced features to smooth your IT operations, including comprehensive system protection, 24/7 stability and reliability and an improved management suite for easier customization. Known as the world's biggest and best-known motherboard brand, ASUS provides world-class after-sales service and guaranteed long-term availability to maximize your investment over the product life cycle and offers a high-quality, TCO-optimized solution for your business computing-needs.
ASUS Corporate Stable Model
ASUS Corporate Stable Model (CSM) is a commercial program designed to provide stable and reliable motherboards. Offering up to 36-month product lifecycle support and 6-month end-of-life notice to allow sufficient lead times for your organization to get ready for product transitions. Each purchase of an ASUS CSM motherboard comes with ASUS Control Center Express – server-grade IT management software.
ASUS Control Center Express
ASUS Control Center Express is a real-time IT monitoring and management tool designed for business that improves productivity and enhances security, helping prevent unauthorized access and data leaks. The intuitive dashboard enables easy, real-time hardware and software management across your organization. Purchase of a Pro motherboard entitles you to a copy of Control Center Express – a US$60
Learn more about ASUS Control Center Express
Internationally Certified Business Motherboard
ASUS Business motherboards are enterprise proven with leading quality that exceeds industry standards. Certified by multiple international safety and environmental organizations, ASUS Business motherboards provide a safe, secure and sustainable solution, making them the ideal choice for your business.
Description
Specification
- Motherboard Type: Desktop
- Form Factor: Micro ATX
- Socket: Intel 1700
- Chipset: Intel Q670
- #Hide#DDR Type: DDR5
- CPU Support: Click here for CPU support
- RAM Technology: DDR5 (Dual Channel)
- RAM Slots: 4 x DIMM
- RAM Speeds: Up to 4800 MHz
- Maximum Memory: 192GB
- Graphics: Integrated Graphics*
*Graphics specifications may vary between CPU types
- Graphics Ports: 1 x HDMI
2 x DisplayPort - PCI/PCI Express: 1 x PCIe 4.0/3.0 x16
2 x PCIe 3.0 x1 - Storage: 6 x SATA III
1 x M.2 (2242/2260/2280) – PCIe
1 x M.2 (2242/2260/2280) – PCIe - RAID: “Intel Rapid Storage Technology supports NVMe RAID 0/1/5, SATA RAID 0/1/5/10”
- Wireless: –
- LAN: GB LAN
- Audio: Realtek 7.1 Surround Sound High Definition Audio CODEC
- USB Ports Supported: “4 x USB 3.2 Gen2 Type-A (at back)
2 x USB 3.2 Gen1 (at mid-board)
6 x USB 2.0 (2 at back, 4 at mid-board)
1 x USB 3.2 Gen1 Type-C front panel connector” - Back Panel I/O Ports: 4 x USB 3.2 Gen2 Type-A
2 x USB 2.0
2 x DisplayPort
1 x HDMI
3 x Audio jacks
1 x Intel 1Gb Ethernet
1 x PS/2 keyboard
1 x PS/2 mouse - Internal I/O Connectors: 1 x 4-pin CPU Fan
2 x 4-pin Chassis Fan
1 x 24-pin Main
1 x 8-pin +12V
2 x M.2 (Key M)
6 x SATA 6Gb/s
1 x USB 3.2 Gen1 Front Panel Type-C
1 x USB 3.2 Gen1
2 x USB 2.0
1 x Clear CMOS
1 x Chassis Intrude
2 x COM Port - .: 1 x Front Panel Audio
1 x COM debug
1 x DIS ME jumper
1 x LPT header
1 x Mono-out (with Amp IC)
1 x M.2 (Key E)
1 x Speaker
1 x 10-1 System Panel - Accessories: 2 x SATA 6Gb/s cables
1 x I/O Shield
1 x M.2 SSD screw package
1 x M.2 Key E screw package
1 x Support DVD
1 x ACC Express Activation Key Card
1 x User guide - Additional Features: See Overview
- Package Type: Retail
- Package Weight: 1.1000 kg
- Warranty: 3 Years
- #Hide#M.2 Slot(s): Yes (M.2)
- #Hide#No. LAN Ports: 1 x LAN
- #Hide#Max LAN Speed: GB LAN
