Description
TUF Gaming AX4200 Dual Band WiFi 6 Gaming Router with Mobile Game Mode, 3 steps port forwarding, 2.5Gbps port, AiMesh for mesh WiFi, AiProtection Pro network security
- Ultrafast WiFi 6 – Enjoy speeds up to 4200 Mbps and 4X network efficiency with OFDMA and 160 MHz channels.
- True Multi-Gigabit wired speeds – Aggregated 2 Gigabit LAN connections, wired 2.5Gbps port and WiFi 6.
- Easy Port Forwarding in 3 Steps – Open NAT makes port forwarding simple, eliminating frustrating and complicated manual configuration.
- ASUS AiMesh Support – Create a flexible, seamless whole-home mesh network with AiMesh-compatible routers.
- Tested Durability and Stable Operation – TUF Gaming AX4200 is built to be durable and undergoes verified testing to ensure reliable, stable operation.

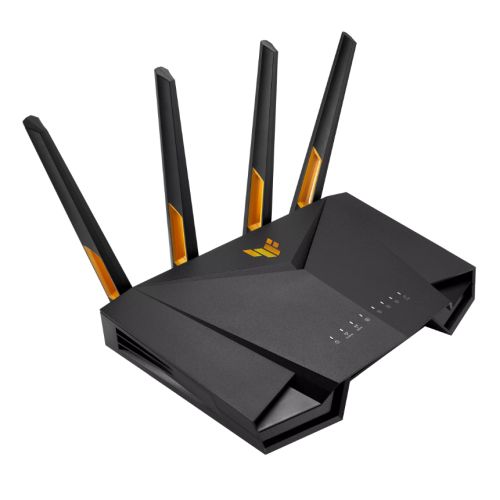

TUF Gaming AX4200
TUF Gaming AX4200 is designed to give you stable and fast wireless and wired connections in device-dense environments. It's a router that benefits all your devices, from laptops, smartphones, and game consoles right down to all the IoT devices in your home.
4X Capacity. 2X Faster.*
WiFi 6 provides faster wireless speeds with OFDMA, BSS coloring and MU-MIMO technologies, and it also boosts network efficiency, so all your devices get their fair share of WiFi bandwidth. It's perfect for busy networks with lots of different WiFi devices, such as laptops, smartphones and smart home devices.
*The data compares speed of 4X4 WiFi 6 solution on 5GHz band 160MHz channel to speed of 4X4 WiFi 5 solution on 5GHz band 80MHz channel
True Multi-Gigabit Wired Speeds
TUF Gaming AX4200 can unlock up to 2Gbps of internet bandwidth by 2.5Gbps port, and aggregating two separate 1Gbps internet services using the LAN1 and LAN2 ports.*
*Link Aggregation (802.3ad) refers to the combining throughput of multiple devices.
WiFi that Goes Further
We've designed TUF Gaming AX4200 to give you the widest possible WiFi coverage. It uses OFDMA, a new technology in WiFi 6 that allows signals to travel further than they can in WiFi 5. Along with other enhancements like beamforming, which focuses the signal towards each device, TUF Gaming AX4200 reaches every corner.
Flexible and Scalable Wireless Mesh Networking
If you need more coverage or new functions, you can simply add another compatible router to your AiMesh network at any time!
Stable and Durable
TUF Gaming AX4200 is engineered to deliver maximum WiFi performance. The vent location and heatsink design improve cooling for increased stability, and the fixed antennas and metal port protectors increase physical durability.
One Router. All Game Types.
TUF Gaming AX4200 provides gamers with different features for different game types.
Switch Modes for an Easy Life
Optimize whatever you're doing with different modes, and boost the task at hand!
Simultaneous Gaming and VPN
VPN Fusion lets you run both a VPN and an ordinary internet connection – simultaneously! So even if other network users need to use a VPN, you can still enjoy maximum gaming speeds.
Commercial-Grade Security for Your Home
Home network security is crucial when you have multiple connected devices, and even more so when there are devices without anti-virus capabilities such as IoT devices. TUF Gaming AX4200 includes lifetime free AiProtection Pro, including the latest WPA3 security protocol and advanced Parental Controls. Every device is protected with TUF Gaming AX4200, and you can keep an eye on everything that's happening on your network via the handy mobile app.
More Privacy, Anywhere
Instant Guard gives you one-click secure internet access via TUF Gaming AX4200 from anywhere in the world, thanks to its encrypted data-tunneling VPN technology. With TUF Gaming AX4200, you can take your home network with you wherever you go — and say goodbye to web-based third-party VPNs!
Description
Specification
- Type: Cable Router
- Connectivity: Wireless
- Wi-Fi Rating: AX4200
- Max Single Band Wi-Fi Rate: 3603 Mbps
- Max Wired Transfer Rate: 2.5 Gbps
- Bands: Dual Band
- Signal Rate: 2.4GHz: up to 574 Mbps
5 GHz: up to 3603 Mbps - Interface(s): 1 x RJ45 for 2.5 Gigabits BaseT for WAN
4 x RJ45 for Gigabits BaseT for LAN
1 x USB 3.2 Gen1 - Standards: IEEE 802.11a
IEEE 802.11b
IEEE 802.11g
WiFi 4 (802.11n)
WiFi 5 (802.11ac)
WiFi 6 (802.11ax)
IPv4
IPv6 - Frequency: 2.4GHz & 5 GHz
- Button(s): “WPS Button, Reset Button, Power Button”
- Power Supply: AC Input : 100V~240V (50~60Hz)
DC Output : 12 V with max. 2.5 A current - Antenna(s): 4 x fixed external antennas
- Wireless Functions: “IPv6
UTF-8 SSID
Guest Network
Max Guest Network rule : 2.4GHz x3, 5GHz x3
Guest Network Connection time limit
WPS
WiFi MAC address filter
Maximum MAC filters : 64
Wireless scheduler
Airtime fairness
RADIUS Client
Universal beamforming
Explicit beamforming” - Security: “Wi-Fi Encryption:
WPS support, WPA/WPA2/WPA3-Personal, WPA/WPA2-EnterpriseParental Control:
Yes
Parental Control Customized Internet scheduleAiProtection Pro:
Malicious site blocking
Two-Way IPS
Infected Device Prevention and Blocking” - DHCP: DHCP Server
- Port/NAT Forwarding: Yes
Max port forwarding rule : 64 - VPN Support: VPN Client L2TP
VPN Client OVPN
VPN Client PPTP
VPN Client WireGuard
VPN Server IPSec
VPN Server OVPN
VPN Server PPTP
VPN Server WireGuard
VPN Fusion - Management: ASUS Router APP
- Dynamic DNS: Yes
- USB Application: “File System : HFS+, NTFS, vFAT, ext2, ext3, ext4
3G/4G LTE dongle
HDD hibernation
Safely Remove disk
AiCloud
Download master
AiDisk
Media Server
Time Machine
Samba Server
FTP Server
Shared Folder privileges” - Additional Features: See Overview
- Package Contents: TUF Gaming AX4200 Dual Band WiFi 6 router
RJ-45 cable
Power adapter
Quick Start Guide
Warranty card - Package Type: Retail
- Package Weight: 1.6000 kg
- Warranty: 3 Years
- #Hide#Wireless Standard: Wi-Fi 6/6E (802.11ax)
- #Hide#Mesh Wi-Fi Support: Yes (Mesh Wi-Fi)
