Description

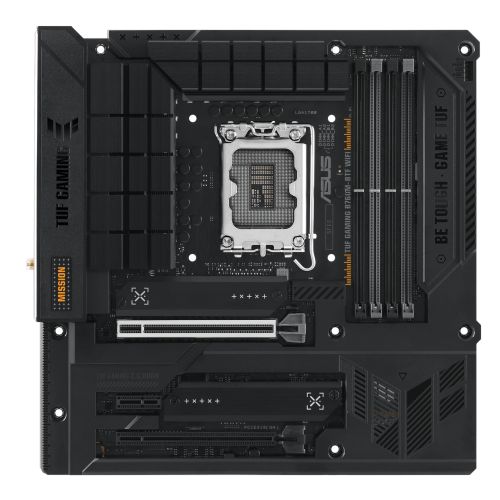

The TUF GAMING B760M-BTF WIFI takes all the essential elements of the latest Intel® processors and combines them with game-ready features and proven durability.
“BTF” means “Back To (the) Future” for a new era for all PC DIY gamers; the BTF series hides its connectors on the underside of the motherboard for clean cable management and a minimalist build appearance.
This motherboard is engineered with military-grade components, an upgraded power solution and a comprehensive cooling system so that it can go beyond expectations with rock-solid performance and marathon gaming.
- 12+1 DrMOS power stages with enlarged VRM heatsinks
- PCIe® 5.0 for graphics cards
- DDR5 memory module support
- USB 3.2 Gen 2×2 Type-C®
- 2.5 Gb Ethernet
- WiFi 6
- Hidden-connector design for clean cable management
- Two-Way AI Noise Cancelation
Intelligent Control
The TUF GAMING B760M motherboards pack flexible tools to tune every aspect of your system, enabling performance tweaks to expertly match the way you play.
Rock-Solid Performance
With upgraded power delivery and comprehensive cooling options to fuel the latest Intel CPUs, plus support for DDR5 memory and PCIe 4.0 storage, the TUF GAMING B760M-BTF WIFI is the perfect foundation for your next Intel battle rig.
Easy PC DIY
The TUF GAMING line offers easy setup for all builders. The TUF GAMING Alliance ecosystem grants compatibility, while Armoury Crate has Fan Xpert 2+, hardware info, Two-Way AI Noise Cancelation, RGB options and peripheral settings. This platform has intuitive tools to build and optimize dream rigs.
Immersive Gaming
TUF GAMING B760M motherboards provide a feature-packed high-performance gaming package, with ultrafast networking for smoother online gameplay, pristine audio with positional cues for FPS Gaming, and onboard RGB lighting that syncs with attached gear to personalize your gaming atmosphere.
** Click here for full product details **
Description
Specification
- Motherboard Type: Desktop
- Form Factor: Micro ATX
- Socket: Intel 1700
- Chipset: Intel B760
- #Hide#DDR Type: DDR5
- CPU Support: Click here for CPU support
- RAM Technology: DDR5 (Dual Channel)
Supports Intel Extreme Memory Profile (XMP)
OptiMem II - RAM Slots: 4 x DIMM
- RAM Speeds: Up to 7200(OC)
- Maximum Memory: 192GB
- Graphics: Integrated Graphics*
*Graphics specifications may vary between CPU types - Graphics Ports: 1 x HDMI
1 x DisplayPort - PCI/PCI Express: 1 x PCIe 5.0 x16
1 x PCIe 4.0 x16 (supports x4 mode)
1 x PCIe 4.0 x1 - Storage: 4 x SATA III
1 x M.2 (2242/2260/2280) – PCIe 4.0 x4
1 x M.2 (2242/2260/2280) – PCIe 4.0 x4
1 x M.2 (2280) – PCIe 4.0 x4 - RAID: Intel Rapid Storage Technology supports SATA RAID 0/1/5/10
- Wireless: Wi-Fi 6
2×2 Wi-Fi 6 (802.11 a/b/g/n/ac/ax)
Supports 2.4/5GHz frequency band
Bluetooth v5.2 - LAN: 2.5GB LAN
- Audio: Realtek 7.1 Surround Sound High Definition Audio CODEC
- USB Ports Supported: “Rear:
1 x USB 3.2 Gen2x2 Type-C
2 x USB 3.2 Gen2 (1 Type-A, 1 Type-C)
3 x USB 3.2 Gen1 (2 Type-A, 1 Type-C)
4 x USB 2.0Front:
1 x USB 3.2 Gen2 Type-C
2 x USB 3.2 Gen1
4 x USB 2.0″ - Back Panel I/O Ports: “1 x USB 3.2 Gen2x2 Type-C
2 x USB 3.2 Gen2 (1 Type-A, 1 Type-C)
3 x USB 3.2 Gen1 (2 Type-A, 1 USB Type-C)
4 x USB 2.0
1 x DisplayPort
1 x HDMI
1 x Wi-Fi Module
1 x Realtek 2.5Gb Ethernet
3 x Audio jacks
1 x Clear CMOS button” - Internal I/O Connectors: 1 x 4-pin CPU Fan
1 x 4-pin CPU OPT Fan
1 x 4-pin AIO Pump
3 x 4-pin Chassis Fan
1 x 24-pin Main
1 x 8-pin +12V
1 x 4-pin +12V
3 x M.2 (Key M)
4 x SATA 6Gb/s
1 x USB 3.2 Gen2 Type-C
1 x USB 3.2 Gen1
2 x USB 2.0 - .: 3 x Addressable Gen2
1 x Aura RGB
1 x COM Port
1 x Front Panel Audio
1 x 10-1 pin System Panel
1 x Thunderbolt (USB4) - Accessories: 2 x SATA 6Gb/s cables
1 x ASUS Wi-Fi moving antenna
1 x TUF Gaming sticker
1 x M.2 Rubber Package
1 x Screw package for M.2 SSD
1 x User guide - Additional Features: NOTE: This motherboard requires a chassis that is BTF compatible
Click here to learn more about Asus BTF - Package Type: Retail
- Package Weight: 1.8000 kg
- Warranty: 3 Years
- #Hide#M.2 Slot(s): Yes (M.2)
- #Hide#No. LAN Ports: 1 x LAN
- #Hide#Max LAN Speed: 2.5GB LAN
- #Hide#Wi-Fi: Yes (Wi-Fi)
