Description

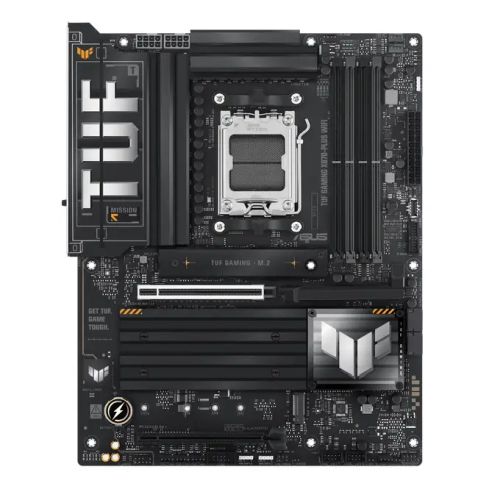

ASUS TUF GAMING X870-PLUS WIFI takes all the essential elements of the latest AMD Ryzen™ processors and combines them with game-ready features and proven durability.
Engineered with military-grade components, an upgraded power solution and a comprehensive cooling system, this motherboard goes beyond expectations with rock-solid and stable performance for marathon gaming. TUF GAMING motherboards also undergo rigorous endurance testing to ensure that they can handle conditions where others may fail. This platform delivers the power and connectivity that advanced AI PC applications demand.
- Advanced AI PC ready
- 16+2+1 (80A) power stages
- AEMP,
- AI Overclocking
- AI Cooling II
- AI Networking II
- DDR5
- PCIe 5.0 Ready with full support for next-gen graphics cards
- 4 M.2 slots
- Wi-Fi 7
- Realtek 2.5Gb Ethernet
- HDMI
- USB4 40Gbps (Type-C)
- SATA 6 Gbps
- Front USB 20Gbps (Type-C) with PD Fast Charge Support
- BIOS FlashBack
- Aura Sync
Complete AI Solution
ASUS AI Solutions – including AI Overclocking, AI Cooling II for thermal control and AI Networking II for real-time bandwidth optimization – offer smart overclocking, efficient cooling and new levels of ultrafast connectivity.
- AI Overclocking – Maximized CPU performance, and predictions for ideal CPU and cooling settings, pushing your system to its limits.
- AI Networking II – Optimized network performance, helping to ensure seamless connectivity and maximized WiFi 7 speeds.
- AI Cooling II – Optimized thermals, and reduced noise via dynamic adjustment of fan speeds, based on CPU temperatures.
Overclocking
Dynamic OC Switcher – Dynamic OC Switcher maximizes CPU performance by letting you set current and temperature thresholds to automatically switch between a manual overlock for heavy multithreaded workloads and Precision Boost Overdrive for single-threaded tasks. The latest Overclocking Load Guard has an enhanced instantaneous current protection mechanism to prevent users from experiencing system crashes during overclocking.
Core Flex – Core Flex empowers you to smash limits farther than ever before by letting you control power and thermals in creative new ways. In its simplest form, you can set breakpoints to gradually reduce CPU core frequency as temperature or current increases. But the system is extremely adaptable, supporting multiple user-controlled functions that can manipulate power, current and temperature limits independently so that you can bend CPU performance to your will.
Intelligent Control
- UEFI BIOS – A physical button unlocks the first PCIe slot’s security latch with one tap, greatly simplifying the process of detaching a PCIe card from the motherboard when it’s time to upgrade to a new GPU or other compatible device.
- ASUS DriverHub – Simplify driver management with automatic detection, one-click installation and update for smooth, efficient system performance.
- ASUS GlideX – Enable seamless screen sharing and control across PCs, tablets, and smartphones via USB or WiFi, supporting multiple platforms.
- Power Saving – Leverage all-around energy efficiency settings to optimize power consumption.
- Armoury Crate – Customize Aura Sync RGB and control ASUS devices. Includes product registration and updates.
Premium Power Design
Stable power is crucial for maximizing the performance of AMD processors. The motherboard is designed to meet the needs of high-core-count CPUs. It features 16(80A) + 2(80A) + 1(80A) power stages that integrate high-side and low-side MOSFETs and drivers into packages rated for up to 80A each. This configuration ensures optimal power delivery, efficiency, stability and performance for both current and future AMD processors.
- PCB design – This multi-layered printed circuit board design quickly dissipates heat around the voltage regulators to improve overall system stability and provide the CPU with more overclocking headroom.
- ProCool Power Connectors – Compared to traditional power inputs, ASUS ProCool connectors are built to tight specifications to ensure full contact with PSU power cables. The resulting lower impedance helps prevent hotspots and connector failure.
- TUF Components – TUF chokes deliver rock-solid power to the CPU, improving system stability. And TUF 5K black metallic capacitors provide 52% wider temperature tolerance and a 2.5X-longer lifespan than standard motherboard capacitors.
- Digi+VRM Control – Real-time voltage control.
Memory & Storage
- DRAM Overclocking Performance – Comprehensive memory tuning options are the cornerstone of TUF GAMING motherboards. With the motherboard, you can extract all the potential out of your DDR5 modules, whether they're from an extreme-speed kit or an entry-level set that would otherwise be locked.
- DRAM Overclocking Performance – For those who want to fly past stock DDR5 speeds, this motherboard is primed and ready for enthusiast-grade kits, courtesy of vast AMD Extended Profiles for Overclocking (EXPO™) support. Seasoned veterans can further tweak performance via an extensive array of settings in the UEFI.
- ASUS AEMP – ASUS Enhanced Memory Profile (AEMP) is an exclusive firmware feature for PMIC-restricted memory modules. AEMP automatically detects the memory chips on your kit and then presents optimized frequency, timing and voltage profiles that you can quickly apply.
Cooler by Design
- Enlarged VRM Heatsinks
- AIO Pump Header
- Multi Temperature Source
- Smart Fan Protect
- Enlarged M.2 Heatsinks
- 4-Pin PWM/DC Fan
- Superb PCH Heatsink
- Water Pump+ Header
Empowering Connection
This motherboard offers a versatile range of connectivity with PCIe 5.0, USB4 40Gbps and front USB 20Gbps Type-C connectors with Fast Charge support.
- PCIe 5.0 for Graphics Card – PCIe 5.0 offers twice the data transfer speed of PCIe 4.0, making it robust enough to handle new data-heavy tasks. PCIe 5.0 also brings other benefits, such as electrical changes to improve signal integrity, backward-compatible CEM connectors for add-in cards and backward compatibility with previous versions of the PCIe bus.
- USB4 40Gbps Type-C Port – Each port delivers up to 40Gbps of bi-directional bandwidth for the latest super-speed devices and drives. Both ports can be employed for up to two external 4K displays.
- Front USB 20Gbps Type-C – This motherboard features a USB 20Gbps Type-C front panel connector for speedy data transfers of up to 20Gbps. And it offers Power Delivery (PD) 3.0 technology to provide up to 30W of quick charging
Easy PC DIY
- PCIe Slot Q-Release – A physical button unlocks the first PCIe slot's security latch with one tap, greatly simplifying the process of detaching a PCIe card from the motherboard when it's time to upgrade to a new GPU or other compatible device.
- Q-Antenna – With Q-Antenna, attaching a WiFi antenna to your PC is now easy and fast. Instead of slowly rotating two fasteners until they finally lock in, they just snap into place. Less hassle, and more consistent performance.
- M.2 Q-Latch – The innovative ASUS Q-Latch makes it easy to install or remove an M.2 SSD without the need for specific tools or screws. This design employs a simple locking mechanism to secure the drive and neatly detach it with one tap.
- Q-LED – The on-board Q-LED troubleshooting lights give PC builders a quick indicator to confirm that key components – CPU, RAM, graphics card, storage devices are functioning normally during startup. It can also alert them when memory modules have not been properly installed–even before booting.
- BIOS FlashBack – BIOS FlashBack simplifies BIOS updates. Just load the BIOS file onto a FAT32 USB stick, insert it into the BIOS FlashBack port, and press a button-no CPU or memory needed.
Ultrafast Networking
Provide a feature-packed high-performance gaming package, with ultrafast networking for smoother online gameplay.
- 2.5Gb Ethernet – On-board 2.5Gb Ethernet kicks your LAN connection up a notch by improving bandwidth speeds up to 2.5X faster than 1Gb connections.
- WiFi 7 – WiFi 7 ensures stable connections and low latency.
- ASUS WiFi Q-Antenna – ASUS WiFi Q-Antenna delivers up to 18% stronger wireless signal reception compared to the previous generation.
- Realtek 7.1 Channel Audio – This motherboard utilizes an audio codec designed in close collaboration with Realtek – the Realtek ALC1220P. It features an unprecedented 120 dB signal-to-noise (SNR) ratio for the stereo line out and a 113 dB SNR for the line in, providing pristine audio quality. Additionally, an impedance-sensing circuit automatically adjusts gain to ensure an optimal volume range for your headphones.
- DTS Audio Processing – DTS Audio Processing enhances gaming headset and speaker audio experiences by reducing distortion and by providing deeper bass, so games, movies and music sound better. It also allows you to customize audio settings.
Lighting
- Outshine The Competition – ASUS Aura Sync offers synchronized lighting with other Aura Sync products, including motherboards, graphics cards, monitors and peripherals.
- Addressable Gen 2 RGB Headers – Automatically optimize lighting effects for the number of LEDs present in compatible ARGB gear.
Description
Specification
- Motherboard Type: Desktop
- Form Factor: ATX
- Socket: AMD AM5
- Chipset: AMD X870
- #Hide#DDR Type: DDR5
- CPU Support: Click here for CPU support
- RAM Technology: “DDR5 (Dual Channel)
ECC and Non-ECC, Un-buffered Memory
Supports AMD EXPO
ASUS Enhanced Memory Profile” - RAM Slots: 4 x DIMM
- RAM Speeds: Up to 8000+MT/s(OC) with Ryzen 9000 & 8000 & 7000 CPUs
- Maximum Memory: 192GB
- Graphics: Integrated Graphics
Graphics specifications may vary between CPU types - Graphics Ports: 1 x HDMI
2 x USB4 (40Gbps) support USB Type-C display outputs - PCI/PCI Express: Ryzen 9000 & 7000 CPUs:
1 x PCIe 5.0 x16 (supports x16 mode)Ryzen 8000 CPUs:
1 x PCIe 4.0 x16 (supports x8/x4 mode)AMD X870 Chipset:
1 x PCIe 4.0 x16 (supports x4 mode) - Storage: 2 x SATA III
4 x M.2Ryzen 9000 & 7000 CPUs:
M.2_1 (2280) – PCIe 5.0 x4
M.2_2 (2280) – PCIe 5.0 x4Ryzen 8000 CPUs:
M.2_1 (2280) – PCIe 4.0 x4
M.2_2 (2280) – not supportedX870E Chipset:
M.2_3 (2280) – PCIe 4.0 x4
M.2_4 (2242/2260/2280/22110) – PCIe 4.0 x4 - RAID: AMD RAIDXpert2 Technology supports both PCIe RAID 0/1/5/10 and SATA RAID 0/1. RAID 5 Function is only supported by AMD Ryzen 9000 series CPU
- Wireless: “Wi-Fi 7
2×2 Wi-Fi 7 (802.11be)
Supports 2.4/5/6GHz frequency band
Supports Wi-Fi 7 160MHz bandwidth, up to 2.9Gbps transfer rate
Bluetooth v5.4″ - LAN: 2.5GB LAN
- Audio: Realtek ALC1220P 7.1 Surround Sound High Definition Audio CODEC
- USB Ports Supported: Rear:
2 x USB4 (40Gbps) Type-C
3 x USB 10Gbps Type-A
4 x USB 5Gbps Type-A
1 x USB 2.0Front:
1 x USB 20Gbps Type-C (up to 30W PD Fast-charge)
2 x USB 5Gbps
4 x USB 2.0 - Back Panel I/O Ports: 2 x USB4 (40Gbps) Type-C
3 x USB 10Gbps Type-A
4 x USB 5Gbps Type-A
1 x USB 2.0
1 x HDMI
1 x Wi-Fi module
1 x Realtek 2.5Gb Ethernet
5 x Audio jacks
1 x BIOS FlashBack button - Internal I/O Connectors: 1 x 4-pin CPU Fan
1 x 4-pin CPU OPT Fan
1 x 4-pin AIO Pump
4 x 4-pin Chassis Fan
1 x W_PUMP+
1 x 24-pin Main
2 x 8-pin +12V CPU
4 x M.2 (Key M)
2 x SATA 6Gb/s
1 x USB 20Gbps Type-C (up to 30W PD Fast-charge)
1 x USB 5Gbps - .: 2 x USB 2.0
3 x Addressable Gen 2
1 x Clear CMOS
1 x Chassis Intrusion
1 x COM Port header
1 x Front Panel Audio
1 x 10-1 pin Front System Panel
1 x Thermal Sensor - Accessories: 2 x SATA 6Gb/s cables
1 x ASUS WiFi Q-Antenna
2 x M.2 rubber packages
1 x Screw package for M.2 SSD
1 x TUF GAMING sticker
1 x Quick start guide - Additional Features: See Overview
- Package Type: Retail
- Package Weight: 1.5970 kg
- Warranty: 3 Years
- #Hide#M.2 Slot(s): Yes (M.2)
- #Hide#No. LAN Ports: 1 x LAN
- #Hide#Max LAN Speed: 2.5GB LAN
- #Hide#Wi-Fi: Yes (Wi-Fi)
- #Hide#RGB Lighting: Out of the box RGB lighting
