Description

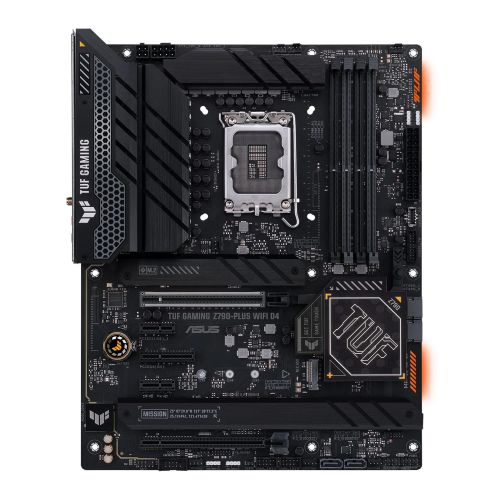

TUF GAMING Z790-PLUS WIFI D4 takes all the essential elements of the latest Intel® processors and combines them with game-ready features and proven durability. Engineered with military-grade components, an upgraded power solution and a comprehensive cooling system, this motherboard goes beyond expectations with rock-solid performance for marathon gaming.
TUF GAMING motherboards also undergo rigorous endurance testing to ensure that they can handle conditions where others may fail. Aesthetically, this model incorporates an embossed nameplate and honeycomb design elements to reflect the dependability and stability that defines the TUF GAMING series.
- Power stages – 16+1 DrMOS power stages (rated 60A) with enlarged VRM heatsinks
- PCIe – PCIe® 5.0 for graphics cards
- Memory module support – DDR4 memory module support
- Connectivity – USB 3.2 Gen 2×2 Type-C® and a front-panel USB 3.2 Gen 2 Type-C® header
- PC DIY friendly – PCIe Q-Release
- Ethernet – 2.5 Gb Ethernet
- WiFi 6
- AI Cooling II
- Two-Way AI Noise Cancelation
Intelligent Control
The TUF GAMING Z790 motherboards pack flexible tools to tune every aspect of your system, enabling performance tweaks to expertly match the way you play.
Rock-Solid Performance
With upgraded power delivery and comprehensive cooling options to fuel the latest Intel CPUs, plus support for DDR4 memory and PCIe 4.0 storage, the TUF GAMING Z790-PLUS WIFI D4 is the perfect foundation for your next Intel battle rig.
Easy PC DIY
The TUF GAMING line offers easy setup for all builders. The TUF GAMING Alliance ecosystem grants compatibility, while Armoury Crate has Fan Xpert 4, hardware info, Two-Way AI Noise Cancelation, RGB options and peripheral settings. This platform has intuitive tools to build and optimize dream rigs.
Immersive Gaming
TUF GAMING Z790 motherboards provide a feature-packed high-performance gaming package, with ultrafast networking for smoother online gameplay, pristine audio with positional cues for FPS Gaming, and onboard RGB lighting that syncs with attached gear to personalize your gaming atmosphere.
** Click here for full product details **
Description
Specification
- Motherboard Type: Desktop
- Form Factor: ATX
- Socket: Intel 1700
- Chipset: Intel Z790
- #Hide#DDR Type: DDR4
- CPU Support: Click here for CPU support
- RAM Technology: DDR4 (Dual Channel)
- RAM Slots: 4 x DIMM
- RAM Speeds: Up to 5333(OC)
- Maximum Memory: 128GB
- Graphics: Integrated Graphics*
*Graphics specifications may vary between CPU types
- Graphics Ports: 1 x HDMI
1 x DisplayPort - PCI/PCI Express: 1 x PCIe 5.0 x16
1 x PCIe 4.0 x16 (supports x4 mode)
1 x PCIe 4.0 x4
2 x PCIe 3.0 x1 - Storage: 4 x SATA III
1 x M.2 (2242/2260/2280/22110) – PCIe
1 x M.2 (2242/2260/2280) – PCIe
1 x M.2 (2242/2260/2280/22110) – PCIe
1 x M.2 (2242/2260/2280) – SATA & PCIe - RAID: “Intel Rapid Storage Technology supports PCIe RAID 0/1/5/10, SATA RAID 0/1/5/10”
- Wireless: Wi-Fi 6
2×2 Wi-Fi 6 (802.11 a/b/g/n/ac/ax)
Supports 2.4/5GHz frequency band
Bluetooth v5.2 - LAN: 2.5GB LAN
- Audio: Realtek S1220A 7.1 Surround Sound High Definition Audio CODEC
- USB Ports Supported: “1 x USB 3.2 Gen2x2 Type-C (at back)
1 x USB 3.2 Gen2 Type-C (at back)
2 x USB 3.2 Gen2 Type-A (at back)
6 x USB 3.2 Gen1 (4 at back, 2 at mid-board)
4 x USB 2.0 (at mid-board)
1 x Front Panel Type-C USB 3.2 Gen2 Header” - Back Panel I/O Ports: “1 x USB 3.2 Gen2x2 Type-C
3 x USB 3.2 Gen2 ports (2 Type-A, 1 Type-C)
4 x USB 3.2 Gen1 Type-A
1 x DisplayPort
1 x HDMI
1 x Wi-Fi Module
1 x Intel 2.5Gb Ethernet
5 x Audio jacks
1 x Optical S/PDIF out” - Internal I/O Connectors: 1 x 4-pin CPU Fan
1 x 4-pin CPU OPT Fan
1 x 4-pin AIO Pump
4 x 4-pin Chassis Fan
1 x 24-pin Main
1 x 8-pin +12V
1 x 4-pin +12V
4 x M.2 (Key M)
4 x SATA 6Gb/s
1 x USB 3.2 Gen2 Type-C
1 x USB 3.2 Gen1
2 x USB 2.0 - .: 3 x Addressable Gen2
1 x Aura RGB
1 x Clear CMOS
1 x COM Port
1 x Front Panel Audio
1 x 20-3 pin System Panel
1 x Thunderbolt (USB4) - Accessories: 2 x SATA 6Gb/s cables
1 x ASUS Wi-Fi moving antenna
1 x TUF GAMING sticker
2 x M.2 Rubber Packages
1 x Screw package for M.2 SSD
1 x TUF Certification card
1 x User guide - Additional Features: See Overview
- Package Type: Retail
- Package Weight: 2.2000 kg
- Warranty: 3 Years
- #Hide#M.2 Slot(s): Yes (M.2)
- #Hide#No. LAN Ports: 1 x LAN
- #Hide#Max LAN Speed: 2.5GB LAN
- #Hide#Wi-Fi: Yes (Wi-Fi)
- #Hide#RGB Lighting: Out of the box RGB lighting
