Description

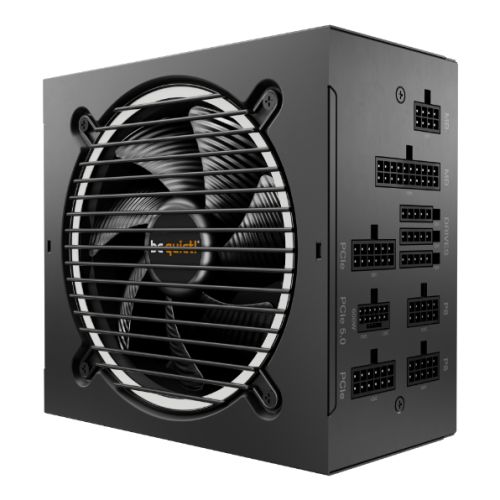

Pure Power 12 M 1000W is ATX 3.0 compliant and PCIe 5.0 compatible and offers peerless dependability with best-in-class features. Pure Power 12 M 1000W offers the best combination of features with outstanding compatibility.
- 80 PLUS® Gold efficiency (up to 93.1%)
- ATX 3.0 PSU with full support for PCIe 5.0 GPUs and GPUs with 6+2 pin connectors
- Exceptionally silent 120mm be quiet! fan
- Advanced stability and voltage regulation thanks to LLC technology
- 2 strong 12V-rails
- Modular cables for maximum build flexibility
- One PCIe 5.0 12VHPWR 600W and 4 PCIe 6+2 connectors for overclocked high-end GPUs
- 10-year manufacturer’s warranty
80 PLUS® Gold Certified
Very high operating efficiency
Pure Power 12 M 1000W is certified 80 PLUS Gold with an outstanding efficiency rating of up to 93.1%. The most compelling benefit: lower power consumption, consequently lower costs, and above all a cooler as well as quieter operation. Pure Power 12 M 1000W is always the correct choice for quiet systems and gaming PCs!
Future-Proof Your System
Fulfills all ATX 3.0 specifications
Pure Power 12 M 1000W is an ATX 3.0 PSU and comes with both native integration of the 12VHPWR connector for next-generation PCIe 5.0 graphics cards, and PCIe 6+2-pin connectors for support of current-gen GPUs. This makes the PSU extremely versatile and the perfect choice for present high-end systems and the ones to come.
The New Standard of Power
For massive transient loads
Pure Power 12 M offers 1000W of continuous power with 2 independent 12V rails. Even if the graphics card demands excessive power for a short time: Pure Power 12 M 1000W handles power excursions up to double its rated power with ease. This ensures reliable operation with the next generation of processors and graphics cards.
Unprecedented Silent Operation
Achieved with a silence-optimized be quiet! fan
The exceptionally silent 120mm be quiet! fan is temperature-controlled to strike the best balance between effective cooling and quietness. Airflow-optimized fan blades reduce turbulence, enabling best-in-class
quiet functionality.
High-Class Technologies
Rock-solid stability
With its LLC topology Pure Power 12 M 1000W provides a best-in-class voltage regulation and efficiency. That makes it perfect for building or upgrading very quiet systems as well as gaming and media creation PCs.
Modular Cables
Utmost convenience and compatibility
Thanks to their modularity, all unnecessary cables in the system are left out. Pure Power 12 M 1000W simplifies cable management and routing for a tidy-looking system. A smoother airflow results from the uncluttered layout of the system, which means lower noise and temperatures inside the case.
Description
Specification
- Form Factor: ATX
- Series: Be Quiet! Pure Power 12 M
- Wattage: 1000 W
- Modular: Fully Modular
- Compatibility: ATX 3.0
EPS 12V v2.92 - #Hide#Wattage Range: 1000 – 1250W
- Connectors: 1 x ATX-Motherboard (20+4-pin)
1 x P4+4 (CPU)
1 x P8 (CPU)
1 / 600 x 12VHPWR cable / W
4 x PCI-e 6+2-pin (GPU)
6 x SATA
2 x PATA - Rail Design: 2 strong 12V-rails
- AC Input: AC 100-240 V
- Fan Type: 120mm silence-optimized be quiet! fan
- Fan Bearing: Rifle Bearing
- Noise: dB(A) at 10% load: 9.3
dB(A) at 20% load: 9.3
dB(A) at 50% load: 9.6
dB(A) at 100% load: 31.7 - 80+ Certification: 80+ Gold
- Efficiency: “230V, 2% load: 75.9%
230V, 10% load: 88.4%
230V, 20% load: 92.3%
230V, 50% load: 93.1%
230V, 100% load: 90.8%” - MTBF: “100,000 hours”
- Protection: Over temperature protection
Over current protection
Over power protection
Short circuit protection
Over Voltage protection
Under Voltage protection
Surge & Inrush Protection - Additional Features: See Overview / Videos
- Package Contents: Power Supply
Cables
Screws
Cable ties
User manual - Weight/Dimensions: 1.91 kg
(LxWxD) 160 x 150 x 86 mm - Package Weight: 3.4000 kg
- Warranty: 10 Years
- #Hide#ATX 3.1/3.0: ATX 3.0
