Description

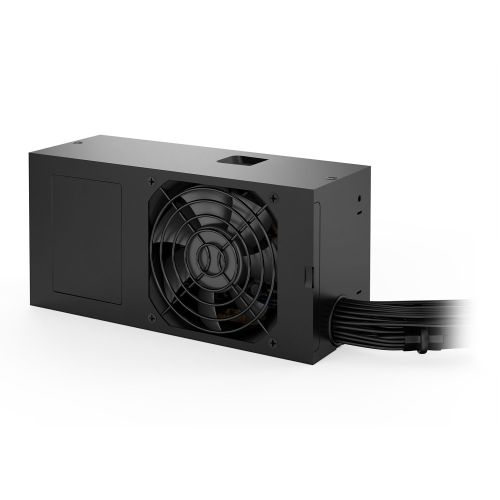

TFX Power 3 300W Gold: the upgraded be quiet! high-efficiency PSU for mini and media PCs with 80 PLUS® Gold certification and PCIe graphics card support.
- Certified 80 PLUS® Gold efficiency (up to 91.7%)
- Strong dual 12V-rails for high stability and PCIe graphics card support
- Two 6+2pin PCIe connectors for powerful GPUs
- 300W of continuous power
- High-quality temperature-controlled 80mm fan for low-noise operation of max. 21.7dB(A)
- Sleeved or flat black cables up to 60cm long
- Meets the latest safety and efficiency requirements
- Standby draw less than 0.17 watts
- Three-year manufacturer’s warranty
- Product conception, design and quality control in Germany
80 PLUS® Gold Certification
Very high operating efficiency
TFX Power 3 300W Gold is certified 80 PLUS Gold with an efficiency rating of up to 91.7%. With this outstanding energy efficiency, the TFX Power 3 300W Gold ensures low power consumption and by that lower costs alike.
Strong Dual 12V Rail
For a stable operation
The dual 12V rail design supports high stability as the CPU receives its power through an independent rail. For demanding peripherals like a graphics card, a PCIe connector is included. This makes the TFX Power 3 300W Gold the ideal PSU for all who strive for enough power to support small systems at low noise
Quiet And Safe
Optimized for low-noise operation
The temperature-controlled fan ensures a quiet operation and produces little wasted heat. Since TFX Power 3 300W Gold meets the latest safety requirements, it defends the PC system against overcurrents, over- and undervoltage, short circuit, overloads and comparable failures.
Description
Specification
- Form Factor: TFX
- Series: Be Quiet! TFX Power 3
- Wattage: 300 W
- Modular: Fully Wired
- Compatibility: TFX12V v2.52 & EPS 12V v2.92
- #Hide#Wattage Range: 300 – 400W
- Connectors: 1 x ATX-Motherboard (20+4-pin)
1 x P4 (CPU)
2 x PCI-e 6+2-pin (GPU)
3 x SATA
2 x PATA
1 x FDD (Floppy) - Rail Design: Dual12V rails
- AC Input: AC 100-240 V
- PFC: Active PFC
- Fan Type: High-quality temperature-controlled 80mm fan
- Fan Bearing: Rifle Bearing
- Noise: dB(A) at 20% load: 9.7
dB(A) at 50% load: 12.4
dB(A) at 100% load: 21.7 - 80+ Certification: 80+ Gold
- Efficiency: “230V, 20% load: 88.9%
230V, 50% load: 91.7%
230V, 100% load: 90.6%” - MTBF: “100,000 hours”
- Protection: Over current
Over voltage
Under voltage
Short circuit
Over Temperature
Over Power - Additional Features: See Overview
- Package Contents: PSU
Screws
Cable ties
User manual - Weight/Dimensions: 1.1 kg
Without cable (LxWxD): 175 x 85 x 65 mm - Package Weight: 1.4300 kg
- Warranty: 3 Years
