Description

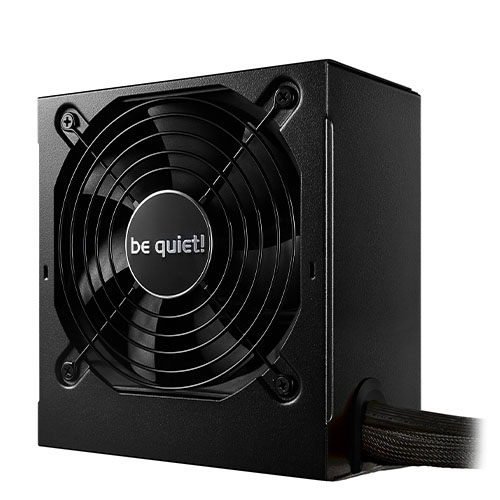

System Power 10 550W has been built with price-conscious users in mind that do not want to dispense on reliability and quietness. Elaborated features such as a temperature-controlled fan and a remarkably low stand-by-drain underline the value System Power 10 550W offers even at entry-level.
- Temperature-controlled 120mm quality fan reduces system noise
- Rock-solid stability with a strong 12V-rail
- Tight voltage regulation using DC-to-DC technology
- Dependable operation to support powerful GPUs
- Stand-by drain of less than 0.15 watts
- 80 PLUS® Bronze efficiency (up to 89.1%)
- Attractive black flat cables
- Complete suite of top safety features
- 5-year manufacturer’s warranty
Very Quiet Operation
High-quality fan for low noise
System Power 10 550W is equipped with a temperature-controlled 120mm quality fan. It provides the low noise operation that be quiet! is famous for, offering remarkable quietness at this price-level.
High Performance For Your System
Proven reliability for CPU and GPU
System Power 10 550W provides stable and dependable power for CPU and GPU. This ensures a steady and reliable operation even when your PC meets an unexpectedly heavy load.
80 PLUS® Bronze Certification
Efficient operation
The 80 PLUS Bronze certification of System Power 10 550W Bronze with an efficiency rating of up to 89.1% is convincing evidence of this PSU’s power saving operation.
Strong 12V Rail
For a stable PCIe graphics support
System Power 10 550W provides enough power for demanding graphics cards. Safety protections defend against overcurrents, over- and undervoltages, overtemperature, short circuits and overloads, thus keeping your valuable components safe.
Description
Specification
- Form Factor: ATX
- Series: Be Quiet! System Power 10
- Wattage: 550 W
- Modular: Fully Wired
- Compatibility: ATX 12V v2.52
EPS 12V v2.92 - #Hide#Wattage Range: 450 – 560W
- Connectors: 1 x ATX-Motherboard (20+4-pin)
1 x P4+4 (CPU)
1 x P4 (CPU)
2 x PCI-e 6+2-pin (GPU)
1 x PATA
6 x SATA - Rail Design: Single strong 12V-rail
- AC Input: 200-240 Vac
- PFC: Active PFC
- Fan Type: Temperature-controlled 120mm quality fan
- Fan Bearing: Ball Bearing
- Noise: 20% load: 8.6 dB(A)
50% load: 9.4 dB(A)
100% load: 25.7 dB(A) - 80+ Certification: 80+ Bronze
- Efficiency: “230V, 20% load: 87.4%
230V, 50% load: 89.1%
230V, 100% load: 85.7%” - MTBF: “100,000 hours”
- Protection: OCP (over current protection)
OVP (over Voltage protection)
UVP (under Voltage protection)
SCP (short circuit protection)
OTP (over temperature protection)
OPP (over power protection)
SIP (Surge & Inrush Protection) - Additional Features: See Overview / Video
- Package Contents: Screws
Manual - Weight/Dimensions: 1.83 kg
(LxWxD) 150 x 140 x 86 mm - Package Weight: 2.5000 kg
- Warranty: 5 Years
