Description

INTERCHANGEABLE TOP AND FRONT

The best case in any situation

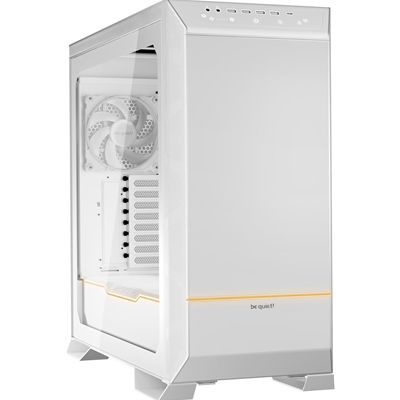

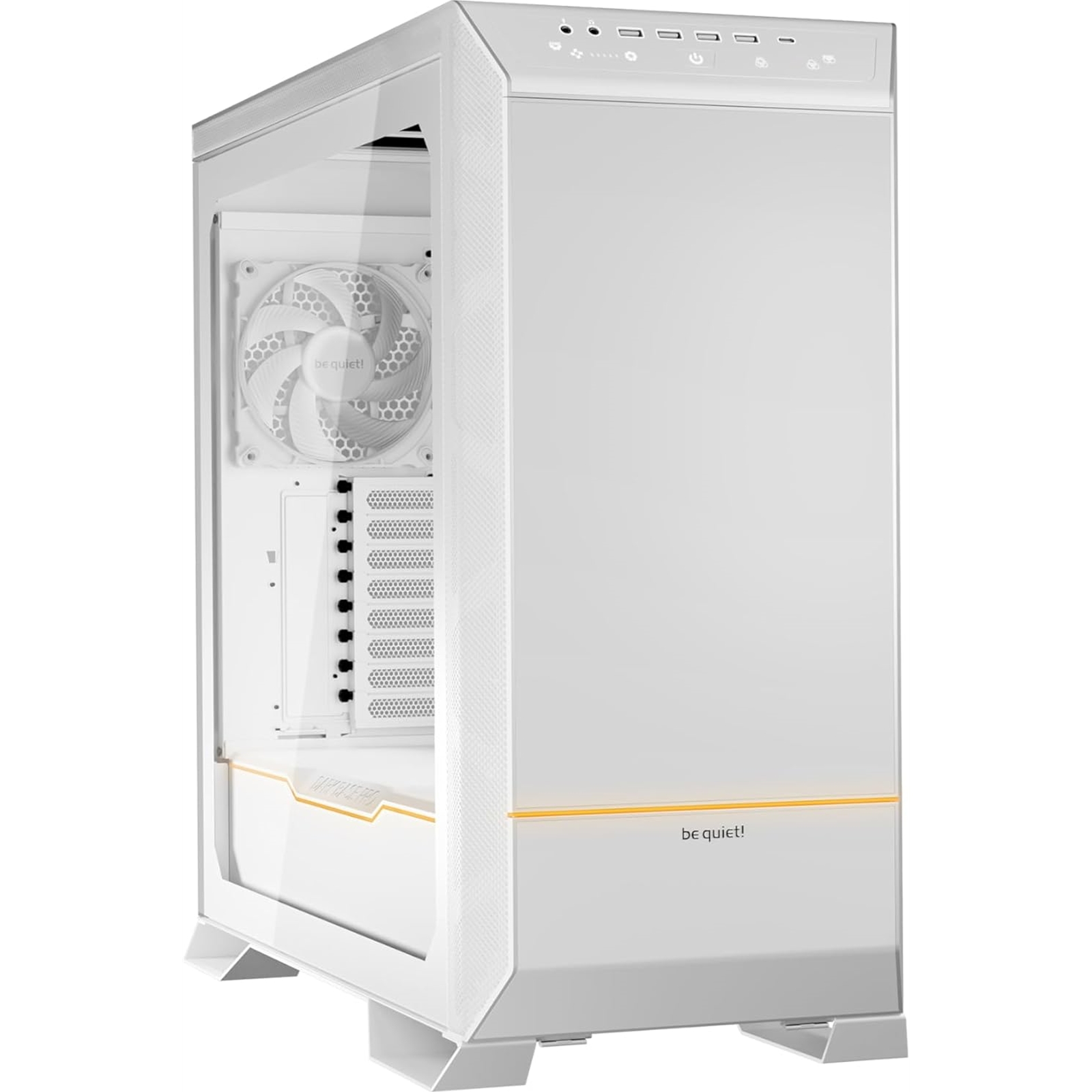

Whether you prefer a virtually inaudible or an extremely performant case: Dark Base Pro 901 White is the perfect choice. Dark Base Pro 901 White features a silence-oriented and performance-optimized solution for the top and the front. All panels are included, and a user-friendly mounting makes switching a breeze.

MAXIMUM USABILITY

For professional and casual use
Dark Base Pro 901 White offers all functions enthusiasts could wish for in a high-end case. Among them is a detachable top and front bracket with included fan hub and pogo pin connector for a comfortable installation of radiators and fans. Even an inverted layout can be done easily thanks to an intuitive rail system. Numerous cleverly integrated solutions make handling extremely easy. Dark Base Pro 901 White can be deployed without the hassle of additional screws and small parts, creating the optimal case for any build.

SILENT WINGS 4 PWM FANS

3 pre-installed fans for maximum airflow
Features like the silence-optimized fan blades and the funnel shaped fan frame make Silent Wings 4 140mm PWM White a fan that makes no compromises between virtually inaudible operation and high performance. Its extraordinary air pressure significantly increases the cooling performance of Dark Base Pro 901 White.

THINK BIG

Generous dimensions for radiators up to 420mm
With its remarkably large dimensions, Dark Base Pro 901 White sets no limits on creativity. The front can fit a radiator of up to 420mm and additional fans can be installed throughout the case, even on the side panel.

FLEXIBLE VGA HOLDER AND CABLE BARS

For a neat interior
The VGA holder of Dark Base Pro 901 White is very versatile and prevents GPU sag even with heavy graphics cards. 2 cable bars, one located inside the VGA holder and the other next to the motherboard tray, hide the cables inside the case. No matter how big or numerous the components built in Dark Base Pro 901 White may be; with such clever features the result always makes a good impression.

ARGB LIGHTING

And convenient features
Dark Base Pro 901 White features ARGB lighting on the front and the PSU shroud: The lit-up areas are chosen consciously to ensure the case remains elegant with subtle illumination. The light and fan settings can be conveniently controlled via touch-sensitive buttons on the I/O panel. A wireless charger for Qi enabled devices perfectly rounds up Dark Base Pro 901 White.

TEMPERED GLASS WINDOW

A perfect view inside your PC
The high-quality, fully windowed side panel offers a perfect view of the components inside your PC case. The window is made of tempered glass with white painted side bars.

General Bata
Model: Dark Base Pro 901 White
Color option: White
Motherboard compatibility: E-ATX / XL-ATX / ATX / M-ATX / Mini-ATX
Case size excl. stands (L x W x H), (mm):604 x 254 x 539
Case size incl. stands (L x W x H), (mm):604 x 275 x 569
Volume (l): 82.69
PSU form factor: ATX PS/2
Net weight (kg): 18.0
Expansion slots: 8

Pre-Installed Fans
Fan at top: No
Fan at front: 2x Silent Wings 4 140mm PWM White
Fan at side: No
Fan at rear: 1x Silent Wings 4 140mm PWM White
Fan at bottom: No
Dimensions (L x W x H), (mm):Front: 140 x 140 x 25 / Rear: 140 x 140 x 25
Fan speed at 100% PWM / 12V (rpm): 1900
Airflow at 100% PWM / 12V (CFM / m3/h): 78.4 / 133.2
Air Pressure at 100% PWM / 12V (mm H2O): 2.36
Noise level at 100% PWM / 12V (dB(A)): 29.3
Voltage range (V DC): 12
Input power (W): 4.8
Input current (A): 0.4
Connector: 4-pin PWM
Lifespan (h / 25°C): 300,000
Fan controller: 5-step fan controller with 2x PWM Hubs

Maximum Fan Installation
Maximum fans: 11
Top (mm): 3x 140 / 3x 120
Front (mm): 3x 140 / 3x 120
Side (mm): 3x 120
Rear (mm): 1x 140 / 1x 120
Bottom (mm): 1x 140 / 1x 120
PSU shroud: No

Optional Radiator Installation
Top (mm): 120 / 240 / 360
Front (mm): 120 / 140 / 240 / 280 / 360 / 420
Side (mm): 120 / 240 / 360
Rear (mm): 120 / 140
Bottom (mm): No

PSU Compatibility
Maximum dimensions excl. bottom fan (mm): 325
Maximum dimensions incl. bottom fan (mm): 325

Graphics Card
HDD cage (in height of graphics card) installed (mm): 350 / 370
HDD cage (in height of graphics card) removed (mm):495
Maximum PCIe slots with vertical graphics card (pcs.): 8

Drive Bay Capacity
5.25 bays (pcs.): 1
3.5 slots (scope of delivery): 2
3.5 slots (max.): 7
2.5 slots (scope of delivery): 6
2.5 slots (max.): 16

Cooling
Max.construction height of CPU cooler unit (mm): 190
Airflow channel: No

Lighting
LED illumination: Yes
LEDs (pcs.): 8 + 16
LED type: ARGB – 5V
LEDs synchronizable with controller/motherboard: Yes

I/O Panel
USB 3.2 Gen. 2 Type C: 1
USB 3.2 Type A: 4
USB 2.0: No
HD Audio I/O: Mic + Audio
Qi charger / Quick Charging Option (W): 15

Insulation And Damping
Top panel insulation mats: Yes
Front panel insulation mats: Yes
Side panel insulation mats: Yes
Anti-vibration decoupled HDD: Yes
Anti-vibration decoupled fan: Yes
Anti-vibration decoupled PSU: Yes
Anti-vibration decoupled motherboard-tray: Yes

Scope Of Delivery
Screw set (Drives/Motherboard): Yes
Additional standoffs (pcs.): No
SSD bracket for PSU shroud: 3 (for E-ATX)
LED strips (pcs.): 0
Cable ties (pcs.): 12
Screw box: Yes
VGA holder: Yes
VGA holder for inverted layout: Yes
Mesh Front Panel: Yes
ODD Bracket: Yes
Fan / Radiator bracket for multi mounting panel: Yes

Removeable Dust Filters
Top: No
Front: 1
Side: No
Bottom:1

Material
Top cover: Aluminum
Front panel: Aluminum
Side panel: Glass
Side panel window: Steel
Stands: Steel

Safety Certification
Approvals: CE, UKCA

Environmental Directives
RoHS: Yes
Reach: Yes
WEEE: Yes
Triman: Yes

Service
Warranty (Years): 3
International hotline / free of charge: ? / DE, FR, US
