Description

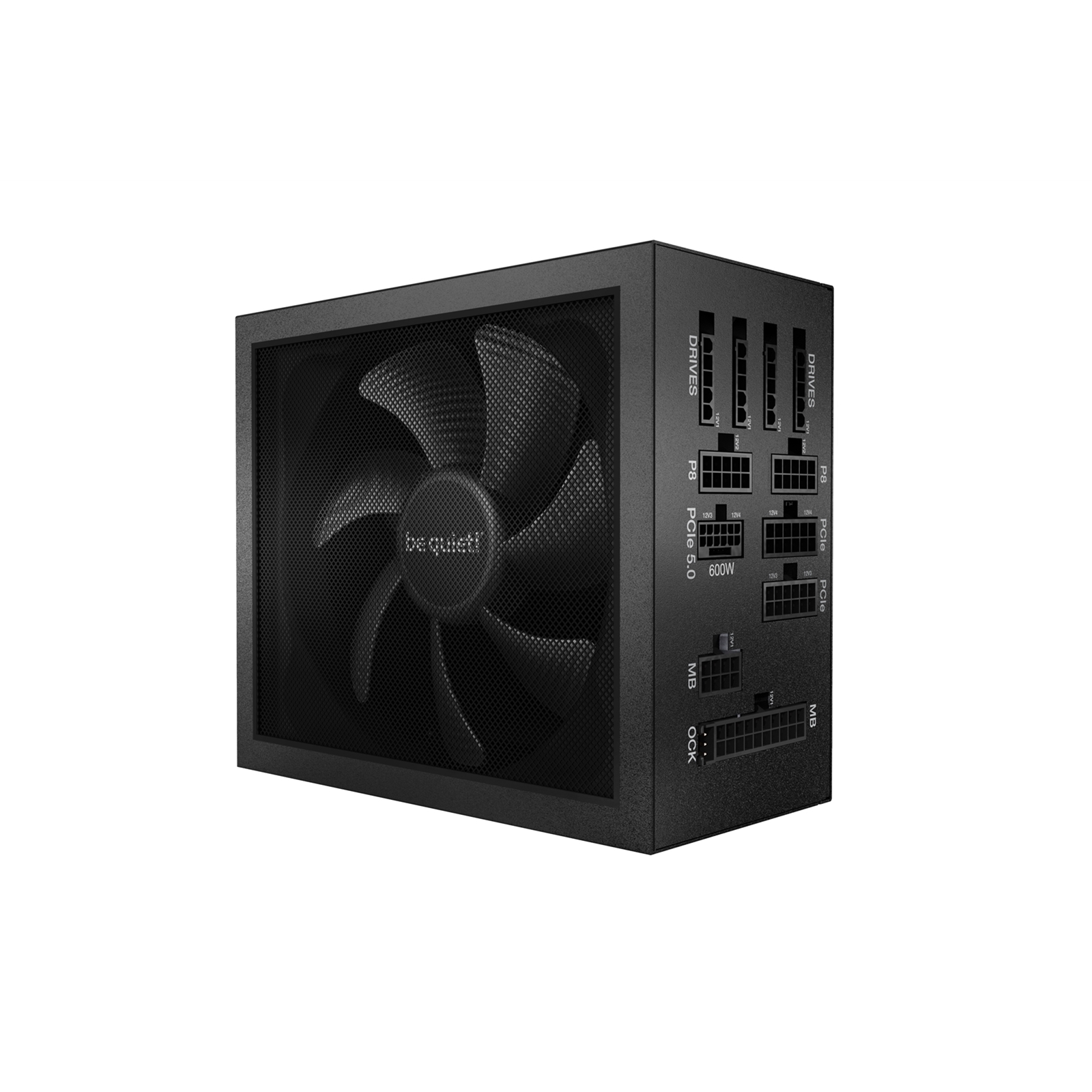

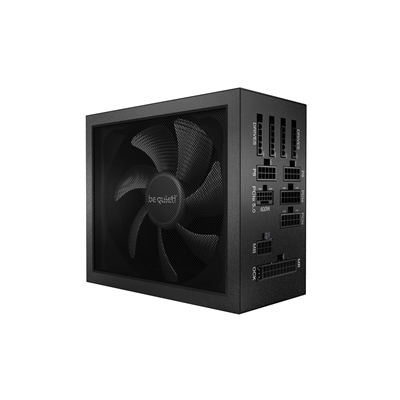

DARK POWER 13 – 1000W
No Compromise Silence and Performance
The be quiet! Dark Power 13 1000W offers 80 PLUS Titanium efficiency, virtually inaudible operation, and ATX 3.0 compliance for next-gen GPU compatibility.
– 80 PLUS Titanium efficiency (up to 95.2%)
– ATX 3.0 PSU with full support for PCIe 5.0 GPUs and GPUs with 6+2 pin connector
– Improved frameless Silent Wings fan for virtually inaudible operation
– Full-mesh front with funnel shape air inlet upholds the high air circulation abilities
– Overclocking key switches between four 12V rails and one massive 12V rail
– Active Rectifier + full bridge LLC technology provides unmatched signal stability and extremely high efficiency
– Modular cable management for maximum convenience
– 10-year manufacturer’s warranty
Specifications
Efficiency
80 PLUS certification:
Titanium
Efficiency (%) at 230V, 2% load:
73.6
Efficiency (%) at 230V, 10% load:
92.0
Efficiency (%) at 230V, 20% load:
94.7
Efficiency (%) at 230V, 50% load:
95.4
Efficiency (%) at 230V, 100% load:
93.5
Output
Multi-rail operation (12V rails):
4
12V single rail operation:
Yes
Overclocking key:
Yes
+3.3V (A):
24
+5V (A):
24
+12V1 (A):
30
+12V2 (A):
30
+12V3 (A):
35
+12V4 (A):
35
-12V (A):
0.5
+5Vsb (A):
3
Max. combined power 12V (W):
840
Max. combined power 12VHPWR (W):
600
Max. combined power 3.3V + 5V (W):
120
Hold-up time at 100% load (ms):
22.6
Power good signal (ms):
100 – 150
Cables and Connectors
Modular cables:
Yes
Sleeved cables:
All
Maximum cable length (cm):
105
Cable length to motherboard (cm):
60
No. of cables:
12
ATX-Motherboard (20+4-pin):
1
P4+4 (CPU):
1
P8 (CPU):
1
12VHPWR cables:
1
PCI-e 6+2-pin (GPU):
4
SATA:
12
PATA:
3
Protection
OTP (over temperature protection):
Yes
OCP (over current protection):
Yes
OPP (over power protection):
Yes
SCP (short circuit protection):
Yes
OVP (over Voltage protection):
Yes
UVP (under Voltage protection):
Yes
SIP (Surge & Inrush Protection):
Yes
Environmental Directives
Energy Star:
8.0
ErP:
Yes
WEEE:
Yes
RoHS:
Yes
Triman:
Yes
Scope of Delivery
Thumb screws:
Yes
Screws:
Yes
Casing
Dimensions without cable (L x W x H), (mm):
175 x 150 x 86
Weight (kg):
1.97
Color:
Black
Service
Warranty (Years):
10
