Description

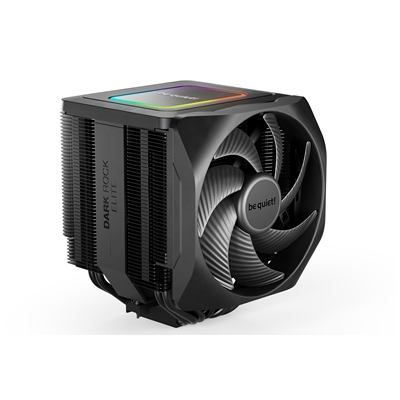

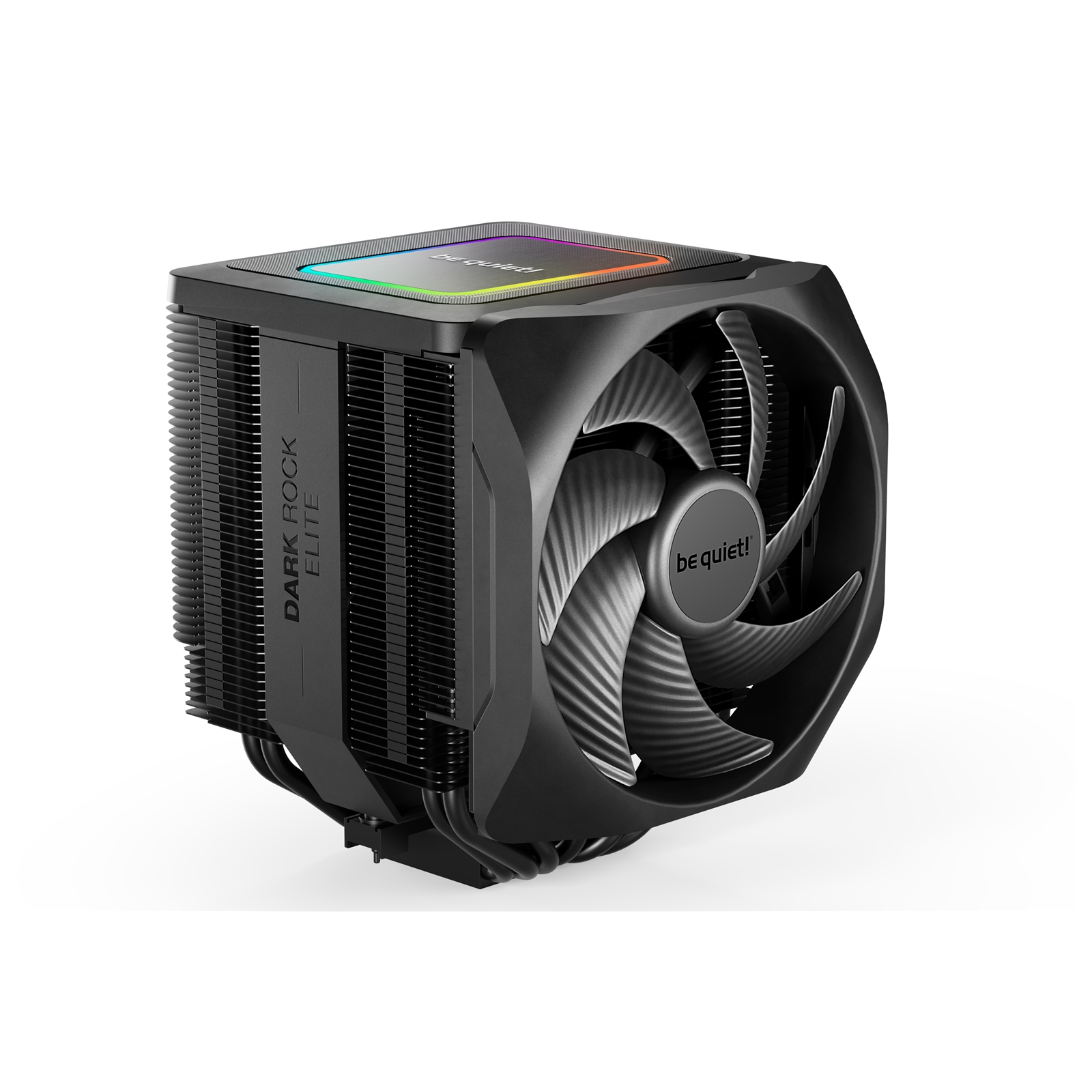

DARK ROCK ELITE
Peak Performance, Legendary Cooling
Dark Rock Elite offers unprecedented performance and cooling power with cutting edge fan technology and an iconic design. Join the Elite.
2 Silent Wings 135mm PWM fans for maximum air pressure and perfect airflow
Innovative front fan mounting system for maximum usability and RAM compatibility
7 high-performance heat pipes for immensely high cooling power
Quiet Mode for virtually inaudible operation and Performance Mode for extraordinary cooling performance via speed switch
ARGB LEDs for great visual effects
Special black coating with ceramic particles enables perfect heat transfer and elegant look
Unmistakable, beefy design makes for an eyecatcher in any system
EXTRAORDINARY COOLING POWER
Our strongest air cooler
Dark Rock Elite features 7 high-performance copper heat pipes and 2 Silent Wings fans, specially designed for maximum air pressure and perfect airflow. As a result, this high-end cooler always keeps your CPU at peak performance, especially in heavily overclocked systems and demanding workstations
SILENT WINGS PWM FANS
Dual fans for massive cooling power
2 Silent Wings 135mm PWM fans provide maximum airflow for unprecedented cooling. Although designed for performance, the fans are virtually inaudible at regular speeds. In Quiet Mode, the maximum noise is a mere 25.8dB(A). This is achieved with advanced fluid-dynamic bearings and smooth 6-pole fan motors.
CONVENIENT HANDLING AND USABILITY
Thanks to a rail system
The front fan can easily be adjusted in height, making Dark Rock Elite compatible with almost any configuration. Adjusting the fan is a breeze: thanks to the innovative rail system, the fan position can be altered in 5 steps.
SPEED SWITCH
Make it the cooler you need
The Speed Switch allows you to choose between 2 modes, each affecting the maximum fan speed and PWM curve. The Quiet Mode provides a maximum fan speed of 1500r/min and is the perfect choice for super-quiet builds. The Performance Mode allows the Silent Wings fans to spin with up to 2000r/min and unleashes Dark Rock Elite’s full power.
IMPRESSIVE LIGHTING AND BEEFY LOOK
A design that speaks for itself
The top cover features ARGB LEDs that light up in endless colors, which can be configured with any ARGB controller. Combined with its distinctive design, Dark Rock Elite becomes the highlight of any system and is especially well suited for exclusive showcases. The special black coating with ceramic particles not only adds a visual highlight to the air cooler: it also enables a perfect transfer of heat.
COMPATIBLE WITH LIQUID METAL THERMAL GREASE
Unbelievable Cooling Power
Thanks to a nickel-plated base, Dark Rock Elite is compatible with liquid metal thermal grease such as DC2 Pro. The properties of liquid metal compound combined with Dark Rock Elite allow high-end CPUs to perform at even higher levels.
General data
Model: Dark Rock Elite
TDP (W): 280
Color option: Black
Overall dimensions without mounting material (L x W x H), (mm)145 x 136 x 168
Total weight (kg):1.34
Socket compatibility Intel:1851 / 1700 / 1200 / 1150 / 1151 / 1155
Socket compatibility: AMDAM5 / AM4
Overall noise level (dB(A)) @ 50/75/100% (rpm):11 / 19.5 / 25.8
Number of fans: 2
Lighting connector: Yes
Heatsink specifications
Dimensions (L x W x H), (mm):120 x 136 x 168
Fin material:Aluminum
Surface treatment: Ceramic coating
Base material: Copper
CPU contact surface: CNC machined
Heatpipe number / Diameter (mm): 7 / 6
Decoupled fan mounting: No
Fan specifications
Fan model: Silent Wings
Fan dimensions (mm): 135 x 135 x 25
Speed @ 100% PWM /12V (rpm): 1500 / 2000
Bearing technology: Fluid Dynamic Bearing
Motor technology: 6-pole fan motor
Rated Voltage (V): 12
Input current (A):0.40
Input power (W): 4.8
Connector: 4-pin PWM
Lighting connector: No
Cable length (mm): 120 / 80
Lifespan (h / 25°C): 300,000
Y-Cable: Yes
Accessories
Thermal grease (Type): Included
Mounting set: Intel & AMD
Y-Cable: Yes
User manual languages: CN, DE, EN, ES, FR, JP, PL, RU, TW
Safety certification
Approvals: CE, UKCA, UL, TUV
Environmental directives
RoHS: Yes
WEEE: Yes
Triman: Yes
Service
Warranty (Years): 3
International hotline / free of charge: Yes / DE, FR
