Description

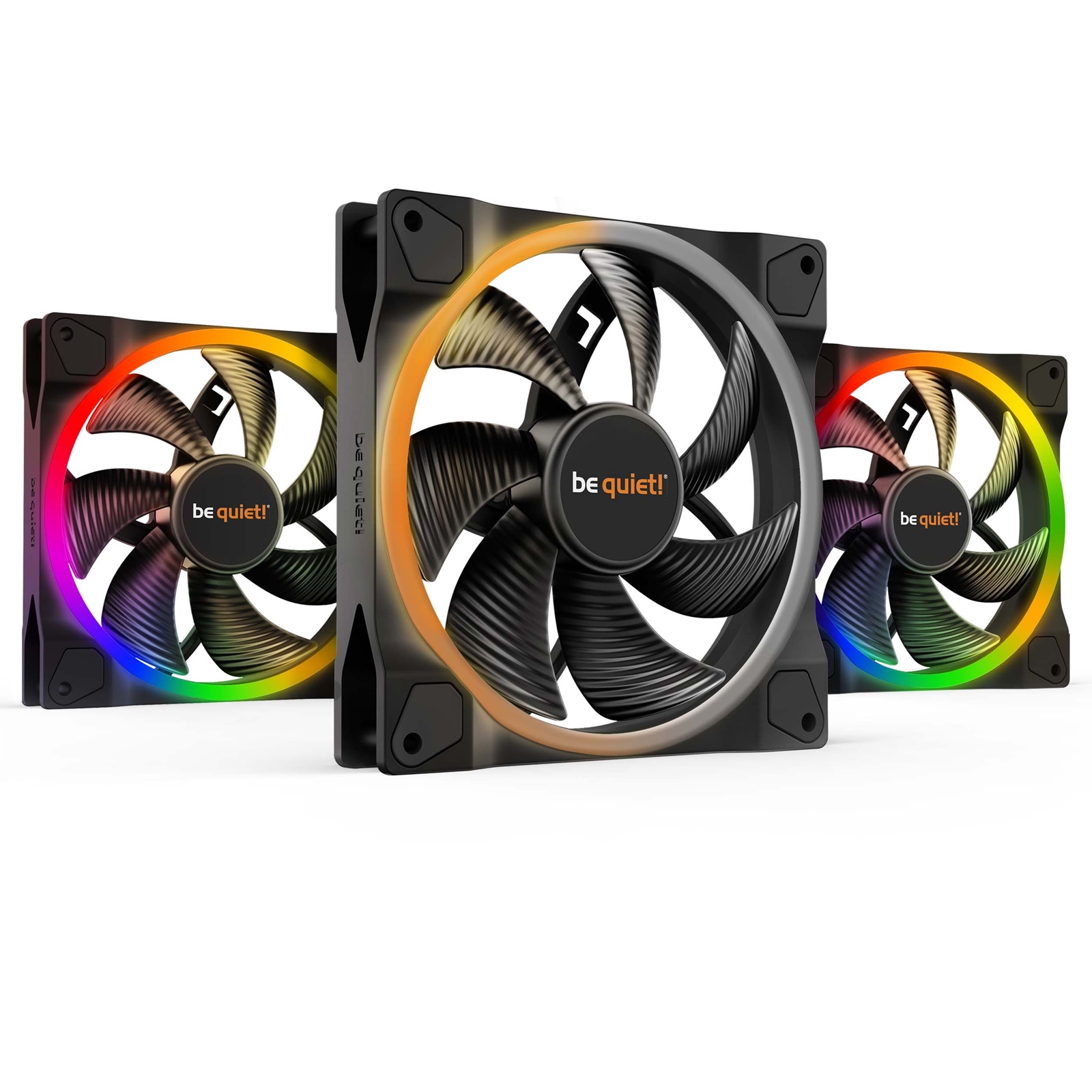

LIGHT WINGS – 140mm PWM Triple Pack
IMPRESSIVE LIGHTING, SUPERIOR COOLING
3 Light Wings 140mm PWM offer impressive illumination for a vibrant unique look, strong performance and quiet operation with efficient cooling.
– 3 fans included
– ARGB lighting on front and rear
– Multiple colors and modes for an individual look thanks to 20 LEDs
– ARGB Hub allows synchronization of up to 6 ARGB components
– 7 silence-optimized fan blades for high airflow and low noise-generating turbulences
– Very quiet operation with max. 23.3dB(A)
If you are looking for quiet case fans with an impressive look from every angle, these 3 Light Wings 140mm PWM are your fans of choice.

IMPRESSIVE LIGHTING
Lots of illumination possibilities
Light Wings 140mm PWM offers ARGB lighting at the front and rear. The subtly lit ring at the back combined with the bright one at the front make for a magnificent appearance from every angle. 20 ARGB LEDs give you many opportunities to individualize your PC build.

THREE FANS, ONE HUB
Synchronize up to 6 Light Wings simultaneously
An ARGB Hub allows to use and synchronize up to 6 ARGB components at the same time. A user-friendly installation makes for an easy and convenient process, while the elegant all-black design of the ARGB Hub visually suits any PC case. It can be mounted like an SSD or anywhere else using the double-coated adhesive tape supplied.

PERFECT CASE FAN
Fan blades optimized for high airflow
With optimization for maximum airflow, Light Wings 140mm PWM is the right choice for any case configuration that demands high cooling performance. Its 7 airflow-optimized fan blades not only reduce noise-generating turbulences, but also ensure Light Wings 140mm PWM provides the performance that is needed, even in demanding configurations.

VERY QUIET OPERATION
Acclaimed be quiet! low noise level
A highly optimized fan frame and impeller achieve the silent operation be quiet! is famous for. With a noise level of just 23.3dB(A) at maximum fan speed, it proves that instead of being a replacement the lighting is an addon to very silent and very powerful operation. All features combine to make Light Wings 140mm PWM the fan of choice for silent show cases and gaming systems alike.

VARIABLE FAN SPEED FUNCTION
Adjusts the fan speed and associated noise level
Pulse Width Modulation (PWM) allows compatible 4-pin controllers, including those built into many motherboards, to intelligently vary the speed and thus the noise level of the fan. With PWM the system can ramp up the cooling when it’s needed, or operate in maximum quiet mode when it’s not.

General Data
Model: Light Wings 140mm PWM Triple Pack
Dimensions (mm): 140
Color option: Black
Lighting: ARGB LED
Fan speed @ 100% PWM / 12V (rpm): 1500
Noise level @ 100% PWM / 12V (dB(A)): 23.3
Air Flow @ 100% PWM / 12V (CFM / m3/h): 56 / 95.14
Air Pressure @ 100% PWM / 12V (mm H2O): 1.49

Mechanical Specifications
Dimensions (L x W x H), (mm): 140 x 140 x 25
Weight incl. fixed cables (g): 241
Bearing technology: Rifle
Motor technology: 4-pole fan motor
Push pin fixing: –
Screw fixing: Yes

Cables / Connectors
Daisy chain for lighting signal: Yes
Lighting connector: 5V 3-pin ARGB
Connector: 4-pin PWM
Cable length (mm): 500
Cable sleeve: –

Performance / Noise
Air Flow @ 100% PWM / 12V (CFM / m3/h): 56 / 95.14
Air Pressure @ 100% PWM / 12V (mm H2O): 1.49
Noise level @ 100% PWM / 12V (dB(A)): 23.3
Lifespan (h / 25°C): 60,000

Electrical Specifications
Rated Voltage DC (V): 12
Operating Voltage DC (V): 5 – 13.2
Current consumption (A): 0.08
Safety current (A): 0.32
Input power (W): 3.84
Rated Current LED (A): 0.67

Accessories
3-pin to 4-pin 12V-connector: –
12V to 7V adapter: –
12V to 5V adapter: –
Screws: 16
Push pins: –
hard plastic washer: –
Others: ARGB Hub

Safety Certification
Approvals: CE / RoHs / RU / WEEE

Environmental Directives
RoHs: –
Triman: –

Logistics Data
Article number: BL078
Dimensions, package (L x W x H), (mm): 192 x 133 x 86.5
Gross weight, package (kg): 1.002
