Description

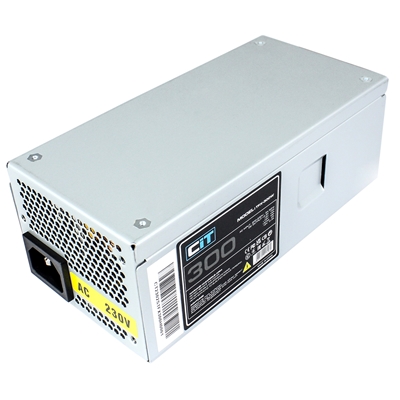

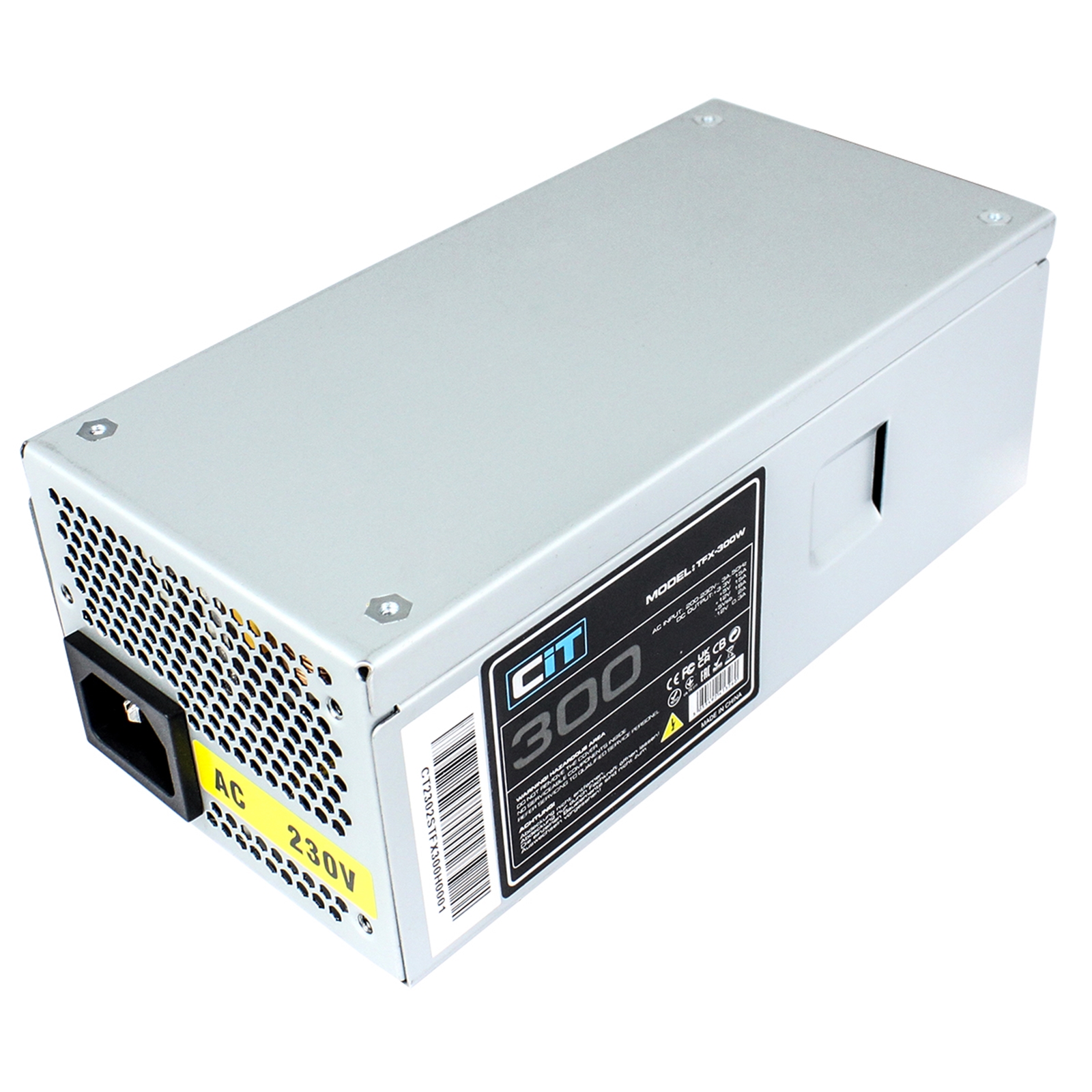

Inject your PC system with the TFX-300 it is a TFX 12 V v2.31 compliant, small and compact for small desktop cases. Expanding the scope of SFF design possibilities.

The best choice for system builders with features that enthusiasts want such as all silver exterior coating, low noise 80mm fan, and flat black cables.

In addition, the TFX-300 features a strong 12V rail design supports high stability outputs for even the most demanding hardware to provide reliable and high-performing system operation.

Specifications

Dimensions:
85mm x 65mm x 175mm (W x H x D)

Input Voltage:
200-230VAC

Input Current:
3A

Input Frequency Range:
50-60Hz

PFC:
PFC

Power Good Signal:
100-500ms

Connections
20+4 Pin Main Connectors: x 1
4+4 Pin 12V Connectors: x 1
SATA Connectors: x 3
4-Pin Molex Connectors: x 1

Hold Up Time:
10ms-40ms

Efficiency:
>72%

MTBF:
100,000 Hours

Protection:
OVP / UVP / OPP / SCP

Power:
300W

Operation Temperature:
0-40°C

Safety:
CE / UKCA / FCC / CB / REACH / EAC / RoHS

Cooling:
80mm Black Fan

Noise:
<17 dBA Manufacturer Part Number:
CIT-TFX-300W

EAN Number:
5055492413260

Has Mains Plug:
No

Colour:
Silver

What’s In The Box:
PSU
Manual

Unit (Product) Dimensions (mm):
85mm x 65mm x 175mm (W x H x D)

Packaging Dimensions (mm):
210mm x 76mm x 142mm (W x H x D)

Net Weight (KGs):
0.83 KGs

Gross Weight (KGs):
0.93 KG
