Description

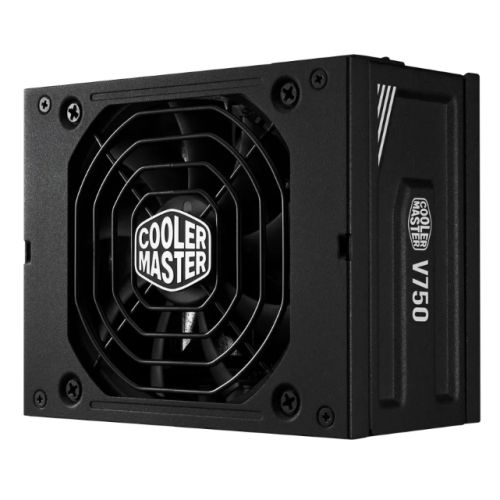

Small But Mighty – as the leading SFX power supply design, the V SFX Gold offers a highly powerful unit in a space-saving, mini form factor.
- Flexible compatibility
- ATX 3.1 support & a 90-degree 12V-2×6 cable
- 80 PLUS Gold certified
- Fully modular cabling
- 100% Japanese capacitors
- 10-year Warranty
Flexible compatibility
With the included SFX-to-ATX bracket, the V SFX Gold ATX 3.1 can be used to power systems ranging from as small as a mini-ITX all the way up to E-ATX motherboards.
ATX 3.1 support & a durable 90-degree 12V-2×6 cable
Includes ATX 3.1 support and a 90-degree 12+4pin (12V-2×6) PCIe 5.1 connector featuring higher electrical durability, lower temperatures, and improved safety.
80 PLUS Gold certified
The V SFX Gold is certified to achieve more than 90% efficiency at typical loads.
100% Japanese capacitors
Large, high-quality Japanese capacitors feature improved efficiency and reduced ripple noise.
Fully modular cabling
Modular cabling reduces clutter, increases airflow, and improves overall thermal performance.
Description
Specification
- Form Factor: SFX
- Series: Cooler Master V SFX Gold
- Wattage: 750 W
- Modular: Fully Modular
- Compatibility: ATX 3.1 & SFX 12V Ver. 3.42
PCIe 5.1 - #Hide#Wattage Range: 700 – 760W
- Connectors: 1 x ATX 24 Pin
1 x EPS 4+4 Pin
1 x EPS 8 Pin
8 x SATA
4 x Peripheral 4 Pin
4 x PCI-e 6+2 Pin
1 x 12V-2×6 - AC Input: 100-240V
- PFC: Active PFC
- Fan Type: 92mm Fluid Dynamic Bearing Fan
- Fan Bearing: Fluid / Hydraulic Bearing
- 80+ Certification: 80+ Gold
- Efficiency: 90% @ Typical Load
- MTBF: “100,000 Hours”
- Protection: OPP / OVP / OTP / OCP / SCP / UVP / Surge & Inrush Protection
- Additional Features: SFX-to-ATX Bracket included
100% Japanese capacitors
Durable 90-degree 12V-2×6 cable - Weight/Dimensions: (LxWxH) 100 x 125 x 63.5 mm
- Package Weight: 2.0070 kg
- Warranty: 10 Years
- #Hide#ATX 3.1/3.0: ATX 3.1
