Description
Create it your way
Flatpack assembly, Fully modular design, Built-in vertical GPU mount, Full-sized specs, pint-sized body, Highly customizable, Multiple macaron color panels, Accessory ecosystem.
Fully Modular
Features modular panels that simplify and streamline the usual case prep process. Every panel is separately removable for easy maintenance.
Flatpack Assembly
Besides the clear eco-benefits, we believe flat-packing will provide a fun and satisfying build experience. Welcome to the future of PC DIY.
Swappable Side Panels
The symmetric design allows you to switch the steel panel and the glass panel with each other for a non-transparent build.
Highly Customizable
An unprecedented level of customizability allows for full creative expression.
Full-sized specs & pint-sized body
The Qube 500 can house almost anything you would expect from a larger case, from EATX Motherboards and the latest GPUs to dual 280mm radiators.
Hardware compatibility
The Qube 500 is compatible with 280mm water coolers, 172mm air coolers, 173mm ATX PSUs, E-ATX motherboards and smaller, and 360mm GPUs.
Storage Compatibility
The Qube 500 provides up to 4x 3.5” HDD mounting positions and up to 3x 2.5” SSD mounting positions.

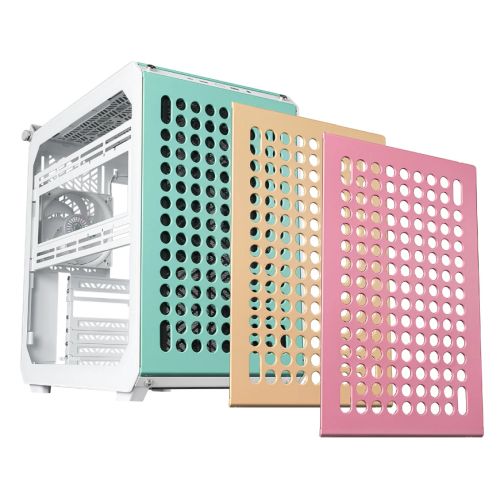

Colour your way
Fully express yourself with the multi-color Macaron edition. It includes two sets of extra panels, an extra handlebar, and two accessory hooks. Mix and match the modular panels to create a case that is truly your own.
Extra Airflow
The side radiator mount has two positions, allowing you to install a 280mm radiator or provide your GPU with extra airflow.
GPU Bracket – Built-in vertical
Vertically mount your GPU with the included bracket. You can even adjust the distance from the side panel to maintain good airflow.
Accessory ecosystem
The Qube 500 comes with a living accessory ecosystem. A Gem mini cable manager and accessory hook are included, and we have prepared some 3D-printable files for you to create your own accessories.
Description
Specification
- Form Factor: E-ATX
- #Hide#Small Form Factor: No
- Power Supply Wattage: No PSU
- Motherboard Support: “Mini ITX, Micro ATX, ATX, E-ATX (Width up to 296mm w/ SFX PSU, up to 273 w/ ATX PSU)”
- #Hide#Window(s): Yes (Window)
- #Hide#LED Lighting: Yes (LED Lighting)
- Connectors / Controls: 1 x USB 3.2 Gen2x2 Type-C
2 x USB 3.2 Gen1 Type=A
1 x 3.5mm Combo Audio In / Out - Drive Bays: 4 x 3.5″” HDD (Max)
3 x 2.5″” SSD (Max) - Expansion Slots: 7 Expansion Slots
- Cooling System: Fan Mounts:
Front: 1 x 120/140 mm (x2 if PSU is mounted in bottom)
Top: 2 x 120/140 mm
Rear: 1 x 120 mm
Bottom: 2 x 120/140 mm
Left side: 2 x 120/140 mm - .:
Radiator Options:
Front: Up to 140 mm (240/280mm w/ PSU in bottom)
Top: Up to 280 mm (280mm can be used within 53mm thickness)
Rear: 120 mm
Bottom: Up to 280 mm
Left side: Up to 280 mm - Colour: White
- Material: “Exterior: Steel, Plastic, TG
Left Side Panel: Grey TG + Steel” - Compatibility: “GPU Clearance:
365 mmCPU Clearance:
164 – 172 mm (Remove the water cooling bracket)PSU Clearance :
SFX / SFX-L / ATX
173mm to first GPU slot, 216 maximum space (w/o cable management space)” - Weight/Dimensions: (LxWxH) 406 x 231 x 415 mm (incl. Protrusions)
(LxWxH) 380 x 231 x 381 mm (excl. Protrusions) - Additional Features: “Fully modular design
Built-in vertical GPU mount
Full-sized specs, pint-sized body
Highly customizable
Multiple macaron colour panels
Accessory ecosystem
Swappable side panels
Flatpack assembly
Dust Filters: Front, Top, Bottom, Right side
Handle: Mint x1, Grey x1
Gem Mini: Grey x1
Accessory Hook x2″ - Package Weight: 9.4000 kg
- Warranty: 2 Years
