Description

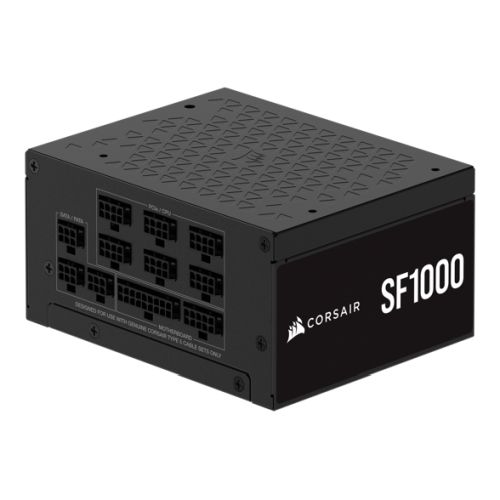

CORSAIR SF Series SF1000 80 PLUS Platinum Cybenetics Platinum SFX Power Supply
Give your high-performance SFF PC the power it needs with a CORSAIR SF Series 80 PLUS Platinum SFX Power Supply. ATX 3.1 compliant and PCIe 5.1 ready, the SF Platinum Series delivers high-wattage 80 PLUS Platinum-certified power in a compact form-factor with a fully modular design. A 92mm PWM cooling fan ensures quiet operation, with Zero RPM Mode support for no fan noise at all at low loads. Built exclusively with 105°C rated Japanese capacitors, the SF Platinum Series easily handles high-stress gaming and computing. Includes an SFX-to-ATX bracket for installation in larger cases and a seven-year warranty for total confidence.
- 80 PLUS Platinum Rated SFX Power: Massive Platinum-rated power in a compact SFX form-factor, perfect for the most power-dense small-form-factor PCs or saving space in larger cases.
- ATX 3.1 Compliant & PCIe 5.1 Ready: Compliant with the ATX 3.1 power standard from Intel®, supporting the PCIe Gen 5 platform and resisting transient power spikes.
- Fully Modular, Type-5 Micro-Fit PSU Connectors: With flexible cabling, taking up less space for tidy cable management and compatibility in small cases.
- 92mm PWM Cooling Fan: Delivers powerful cooling with low-noise operation thanks to a fluid dynamic bearing.
- 105°C Rated Japanese Capacitors: For unwavering power and reliability.
- Zero RPM Mode: The fan stays off until it’s needed, for near-silent operation at low and medium loads.
- 50°C Continuous Operating Temperature: For reliable power even under high-stress conditions.
- SFX-to-ATX Bracket Included: Enables installation into ATX cases for more cable space in larger systems.
- Seven-Year Warranty: For complete peace of mind.
Description
Specification
- Form Factor: SFX
- Series: Corsair SF
- Wattage: 1000 W
- Modular: Fully Modular
- Compatibility: ATX12V v3
EPS12V v2.92
ATX 3.1 Compliant
PCIe 5.1 Ready - #Hide#Wattage Range: 1000 – 1250W
- Connectors: 1 x ATX (24-pin)
2 x EPS / ATX 12V 8-pin (4+4)
4 x PCIe 8-pin (6+2)
1 x 12VHPWR (12+4) pin
4 x SATA (4 Straight SATA)
4 x SATA (4 Right SATA)
3 x PATA - AC Input: 100-240V
- Fan Type: 92mm PWM Cooling Fan
- Fan Bearing: Fluid / Hydraulic Bearing
- Noise: Low-Noise Operation
Zero RPM Mode - 80+ Certification: 80+ Platinum
- Additional Features: See Overview
- Package Contents: SF1000 Power Supply
DC Cable Kit
SFX-ATX Adapter Bracket
Power Cord
Mounting Screws
Cable Ties - Weight/Dimensions: 1.05 kg
125 x 100 x 63.5 mm - Package Weight: 2.3700 kg
- Warranty: 7 Years
- #Hide#ATX 3.1/3.0: ATX 3.1
