Description

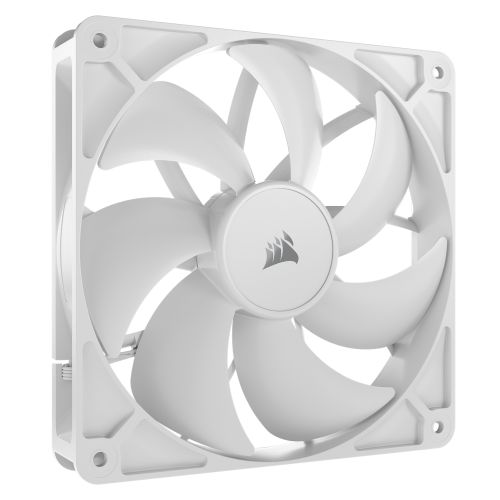

CORSAIR RS140 PWM 140mm Fan – Simplified Control – Daisy-Chain 4-Pin PWM Connection – Concentrated AirGuide Cooling – Magnetic Dome Bearing
Add a CORSAIR RS140 140mm PWM Fan to your cooling setup – daisy-chained 4-pin PWM connectors let you link to your other RS fans and control them all through just a single 4-pin PWM header on your motherboard. Enjoy fan speeds up to 1,700 RPM, with the static pressure to also serve as radiator fans. CORSAIR AirGuide technology with anti-vortex vanes directs airflow for concentrated, powerful cooling. Magnetic Dome bearings ensure quieter operation and increased longevity, while Zero RPM mode offers silent operation at low loads.
- Streamlined Fan Connections: Daisy-chain multiple fans together and control them all through just a single 4-pin PWM connector.
- Precise PWM Speeds: Set your fan speeds up to 1,700 RPM while providing up to 95.5 CFM airflow to your system.
- CORSAIR AirGuide Technology: Anti-vortex vanes direct airflow at your hottest components for concentrated cooling, pushing air in the direction you need when mounted to a radiator or heatsink.
- High Static Pressure: RS fans work well as radiator fans with a static pressure of 3.46mm-H2O to push through obstructions.
- Quiet Operation with Magnetic Dome Bearing: CORSAIR’s Magnetic Dome bearing minimizes noise and reduces friction for greater longevity.
- Zero RPM Mode: Supports Zero RPM PWM signals to completely eliminate fan noise at low loads.
Description
Specification
- Type: 14cm Case Fan
- Fan Connector(s): 4-pin
- Fan Controller: PWM
- Installation: Mounting Screws
- #Hide#LED Lighting: No
- Colour: White
- LED Lighting: –
- #Hide#White: Yes (White)
- Weight: 0.21 kg
- Fan Dimensions: 140 x 140 x 25 mm
- Rotation Speed: 330 – 1700 RPM
0 RPM Mode - Fan Bearing: Magnetic Dome Bearing
- Air Flow: 14.6 – 95.5 CFM
- #Hide#Type 2: Case Fans
- Noise level: 10 – 36 dBA
- Power: Rated Current: 0.45A
- Additional Features: See Overview
- Package Contents: 1 x RS140 Fan
4 x Mounting Screws - Package Type: Retail
- Package Weight: To be confirmed
- Warranty: 5 Years
