Description

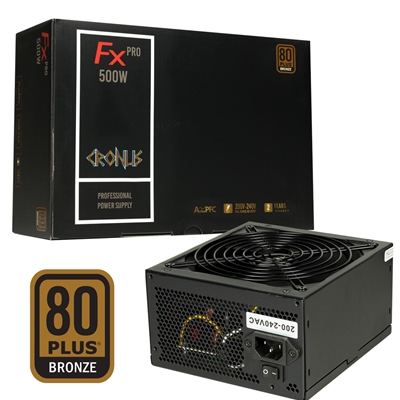

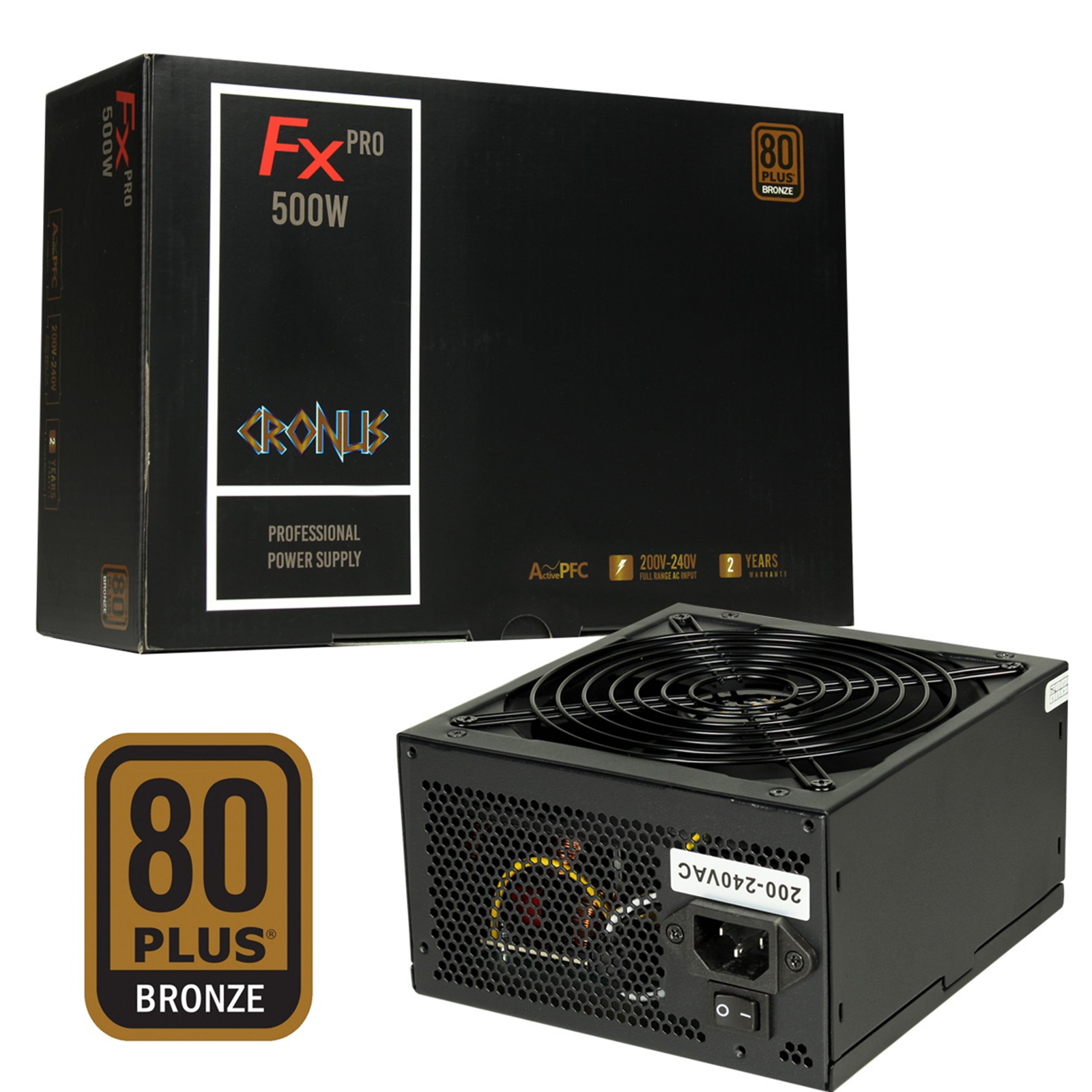

The FX Pro series is the latest PSU series launched by Cronus. The FX Pro range are a non-modular power supplies that we offer in three power configurations, 500W, 600W and 700W, all 80 Plus Bronze certified. The 500W is an excellent choice for both first time builders and experienced builders. Our Pro power supply is an 80 plus bronze certified, with 85% efficiency or higher under typical loads, ideal for system integrators. A non-modular PSU with flat back cables included, this PSU is great for those who like the correct balance between cable management and build flexibility, combining 500W of excellent power with great performance, optimised rail structure allows you to realise a more powerful performance from your power supply.
80 Plus Bronze
The Cronus FX Pro 500W achieves 80 Plus Bronze certification with its 85% at 50% system load.
Excellent Cooling Operation
A 14cm cooling fan for excellent airflow and heat dissipation.
Flat Black Cables
With flat black cables included gamers can easily manage and save space creating a nice looking gaming set up.
Structure
An active PFC ensures small and light components with great flexibility and control and you are able to operate in universal input range for a supreme performance.
Warranty
The Cronus FX Pro range comes with 2 years warranty.
Model
FX PRO 500W
Wattage
500W
Input Voltage
200-240 VAC
Input Current
6A
Input Frequency Range
47-63Hz
PFC
Active PFC
Power Good Signal
300ms
Hold Up Time
10ms
Efficiency
85%
MTBF
50,000 Hours
Protection
OVP / UVP / OLP / OPP / SCP
Operation Temperature
0-40°C
Safety
CE / CCC
Cooling
140mm Silent Cooling Fan
Noise
40dBA
80 PLUS Certified
Bronze
Colour
Black
Connections
1 x 20+4 Pin Main
1 x 4+4 Pin 12V
6 x SATA
2 x 4-Pin Molex
2 x 6+2 Pin PCI-e
What’s In The Box
PSU
Screws
Product Dimensions ( W x H x D )
150mm x 85mm x 160mm
Packaging Dimensions ( W x H x D )
257mm x 100mm x 180mm
Weight
Net: 1.5 KGs
Gross: 1.67 KGs
Master Carton Quantity
6
Mains Plug Included
No – Please see CLTAR-RB-250
