Description

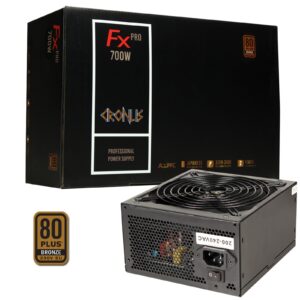

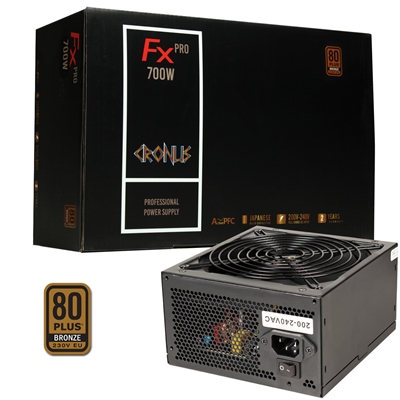

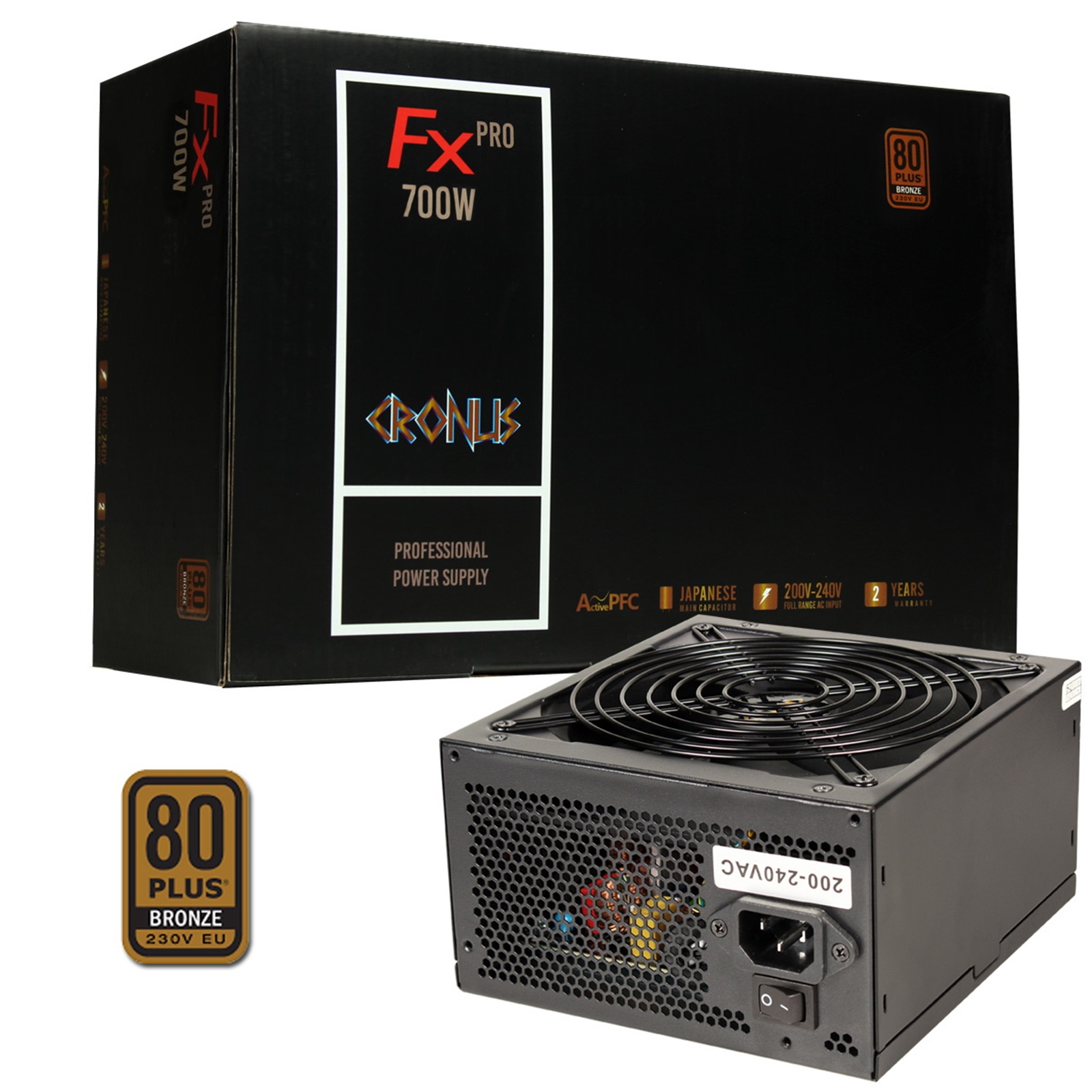

The FX Pro series is the latest PSU series launched by Cronus. The FX Pro range are a non-modular power supplies that we offer in three power configurations, 500W, 600W and 700W, all 80 Plus Bronze certified. Not only is this power supply impressive in performance but the components used in this power supply are components normally used by top tier brands. This Power supply is perfect for enthusiastic gamers who are pursuing the ultimate gaming experience. Realise a more powerful performance.
80 Plus Bronze Certification
The FX Pro range are 80 Plus Bronze certified achieving an efficiency of up to 88% at a load of 50%.
Japanese TK Main Capacitor
With a Japanese TK main capacitor included the FX Pro Range delivers a reliable life expectancy and quality assurance.
Power
The FX Pro range offers some real power, the 12V output can be rated over 90% of the total level, ensuring a smooth operation. The 80 Plus 230V EU Bronze efficiency enables your high end components to work to their full potential.
Structure
The structure of a power supply decides the main performance such as the efficiency and temperature but with a double forward and active PFC, the FX Pro range ensures a supreme performance.
Full Range Voltage Power Off Protection
With a full range voltage and SCP function, if the power is cut off you don’t need to worry, the FX Pro will activate the power off protection function to protect your PSU and motherboard effectively.
Professional Looking
Black is the colour, with the all black finish and the flat black cables give your gaming PC a clean look. The flat black cables enable builders to easily manage and save space creating a great looking PC.
Warranty
The FX Pro range comes with 2 years warranty.
Model
FX PRO 700W
Wattage
700W
Input Voltage
200-240 VAC
Input Current
6A
Input Frequency Range
47-63Hz
PFC
Active PFC
Power Good Signal
Approx 300ms
Hold Up Time
10ms
Efficiency
85%
MTBF
30,000 Hours
Protection
OVP / UVP / OLP / OPP / SCP
Operation Temperature
0-40°C
Safety
CE / CCC
Cooling
140mm Silent Cooling Fan
Noise
40dBA
80 PLUS Certified
Bronze
Colour
Black
Connections
1 x 20+4 Pin Main
2 x 4+4 Pin 12V
6 x SATA
2 x 4-Pin Molex
4 x 6+2 Pin PCI-e
What’s In The Box
PSU
Cable Ties
Screws
Product Dimensions ( W x H x D )
150mm x 85mm x 160mm
Packaging Dimensions ( W x H x D )
280mm x 190mm x 121mm
Weight
Net: 1.76 KGs
Gross: 1.99 KGs
Master Carton Quantity
6
Mains Plug Included
No – Please see CLTAR-RB-250
