Description

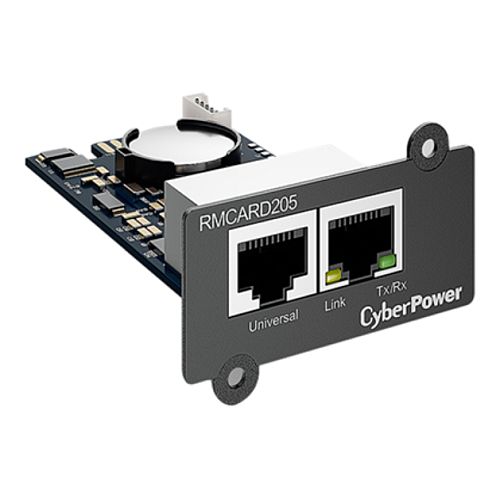

RMCARD205 Remote Management Card
- Plug-and-play installation
- User-friendly web interface
- Command line interface supported
- Remotely schedule shutdown/ start-up/ reboot of the UPS
- User-upgradeable Firmware
- Remote Management: Web Browser, Command Line Interface, NMS
- Local Management: Web Interface, Command Line Interface
- Event Notifications: E-mail, SNMP Traps, Syslog, SMS
- Supported Protocols: IPv4/v6, SNMPv1/v3, HTTP/HTTPs, TCP/IP, UDP, DHCP, NTP, DNS, SMTP, SMTPS, SSH, SSL, TLS, Telnet, FTP, SCP, Syslog and Modbus TCP
- Authentication: RADIUS, LDAP, LDAPS, Windows AD
- Multi-language Supported: Chinese (Traditional), Chinese (Simplified), English, French, German, Spanish
- Environmental Sensor Supported
- Software: PowerPanel Business (Recommended for small-medium scale management) , PowerPanel Enterprise (Recommended for large scale management)
- ENVIROSENSOR Support
CyberPower RMCARD205 is an optional management add-on to specific CyberPower UPS series. By inserting the card into the SNMP/HTTP network slot on the UPS, users can remotely monitor and control the devices in a back office, server room, or data center via standard web browsers, the network management system (NMS), or command line interface (SSH and Telnet) on their network. They can also perform management tasks including scheduled shutdowns, startups, and reboots.
When a power issue occurs, administrators will be notified immediately via e-mail, SNMP traps, and SMS. By utilizing the auto-shutdown software, servers and workstations stay protected from data loss due to power failure. Event logging tracks the operational history of the UPS. With its hot-swappable capability, the system can remain ON for connected equipment when service personnel perform on-site installation or replacement. With its multi-language interface, users can choose their preferred language for easy management.
Description
Specification
- Type: Remote Management Card
- Interfaces: “RJ45
RJ45 (for Environmental Sensor)
Data Link Protocol: Ethernet 100Base-TX, Ethernet 10Base-T” - Visual Indicators: “Tx/Rx, Link LED Indicators”
- Environment: “Operating Temperature: 0 ~ 40°C
Operating Relative Humidity (Non-condensing): 0 ~ 90%
Operating Elevation: 0-9,843 feet (0-3,000 meters)
Storage Temperature: -10 ~ 50°C
Storage Relative Humidity (Non-condensing): 0 ~ 95%
Storage Elevation: 0-49,213 feet (0-15,000 meters)” - Dimensions: 168 x 58 x 164 mm
- Weight: 250g
- Software: PowerPanel Business (Recommended for small-medium scale management) PowerPanel Enterprise (Recommended for large scale management)
- Additional Features: See Overview
- Package Type: Retail
- Package Weight: 0.2350 kg
- Warranty: 2 Years
