Description

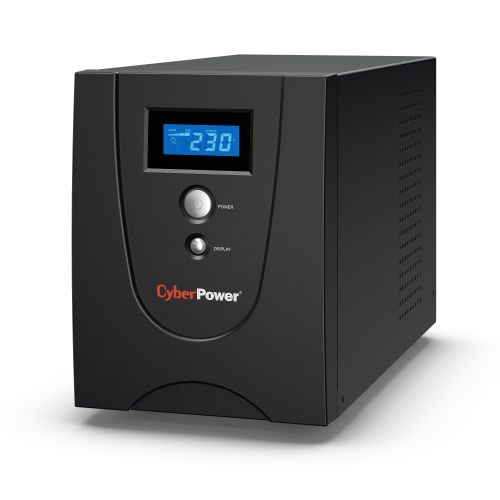

CyberPower Value2200EILCD offers home and office users a reliable battery backup and safeguards office PCs and other electronic devices from surges, spikes, brownouts and other power incidents.


Designed with GreenPower UPS™ Technology to improve operating efficiency and to minimize energy consumption, users can enjoy significant energy cost savings over conventional UPS systems. The UPS provides Automatic Voltage Regulation (AVR) to maintain safe voltage for connected equipment.

• Line-interactive UPS Topology
• Simulated Sine Wave Output
• Surge and Spike Protection
• LCD Status Display
• Tower Form Factor
• Energy Saving Technology
• Automatic Voltage Regulation (AVR)
• Phone/Fax/Modem/DSL/Network Protection
• PowerPanel® Management Software

Description

Specification

• Type: External UPS
• Maximum Capacity: 2200VA / 1320W
• Battery Type: Sealed Lead-acid
• Typical Protection: “Surge Suppression: 125 Joules
  EMI/RFI Filtration
  Phone/Network Protection RJ11/RJ45 (Combo): 1-in, 1-out”
• Inversion: Simulated Sine Wave
• Transfer Time: 4 ms
• Battery Protection: “Automatic Voltage Regulation (AVR): Single Boost, Single Buck
  Overload Protection: Circuit Breaker”
• Input Voltage: Nominal Input Voltage: 230 ± 10% Vac
  Input Voltage Range: 167 ~ 280 Vac
• Output Voltage: 230 ± 10% Vac
• Recharge Time: 8 Hours
• Runtime: at Half Load: 7 minutes
  at Full Load: 1 minutes
• Interfaces: “6 x IEC C13
  RJ11/RJ45 (Combo): 1-in, 1-out
  1 x USB-A Charging Port (5 V/ 1 A)
  1 x Serial”
• Visual Indicators: “LCD Panel:
  Operation Type, Power Status, Battery Status, Load Status, Fault & Warning, Other Information

  LED Indicators:
  Power On”

• Audible Indicators: “Alarms:
  Battery Mode, Low Battery, Overload, Overcharge, UPS Fault”
• Environment: “Operating Temperature: 32 ~ 104°F
  Operating Temperature: 0 ~ 40 °C
  Operating Relative Humidity (Non-condensing): 0 ~ 90 %
  Operating Elevation: 0-9,843 feet (0-3,000 meters)
  Storage Temperature: -4 ~ 122 °F
  Storage Temperature: -20 ~ 50 °C
  Storage Relative Humidity (Non-condensing): 0 ~ 90%
  Storage Elevation: 0-9,843 feet (0-3,000 meters)
  Online Thermal Dissipation: 225 BTU/hr
  Audible Noise at 1.0M from Surface of Unit: 50 dBA”
• Dimensions: (WxHxD) 443 x 218 x 289 mm
• Weight: 15.68 kg
• Additional Features: See Overview/ Video
• Accessories: Power Cord
  USB Cable
  Phone Line
  Quick Start Guide
• Package Type: Retail
• Package Weight: 15.6000 kg
• Warranty: 2 Years – direct with CyberPower
