Description

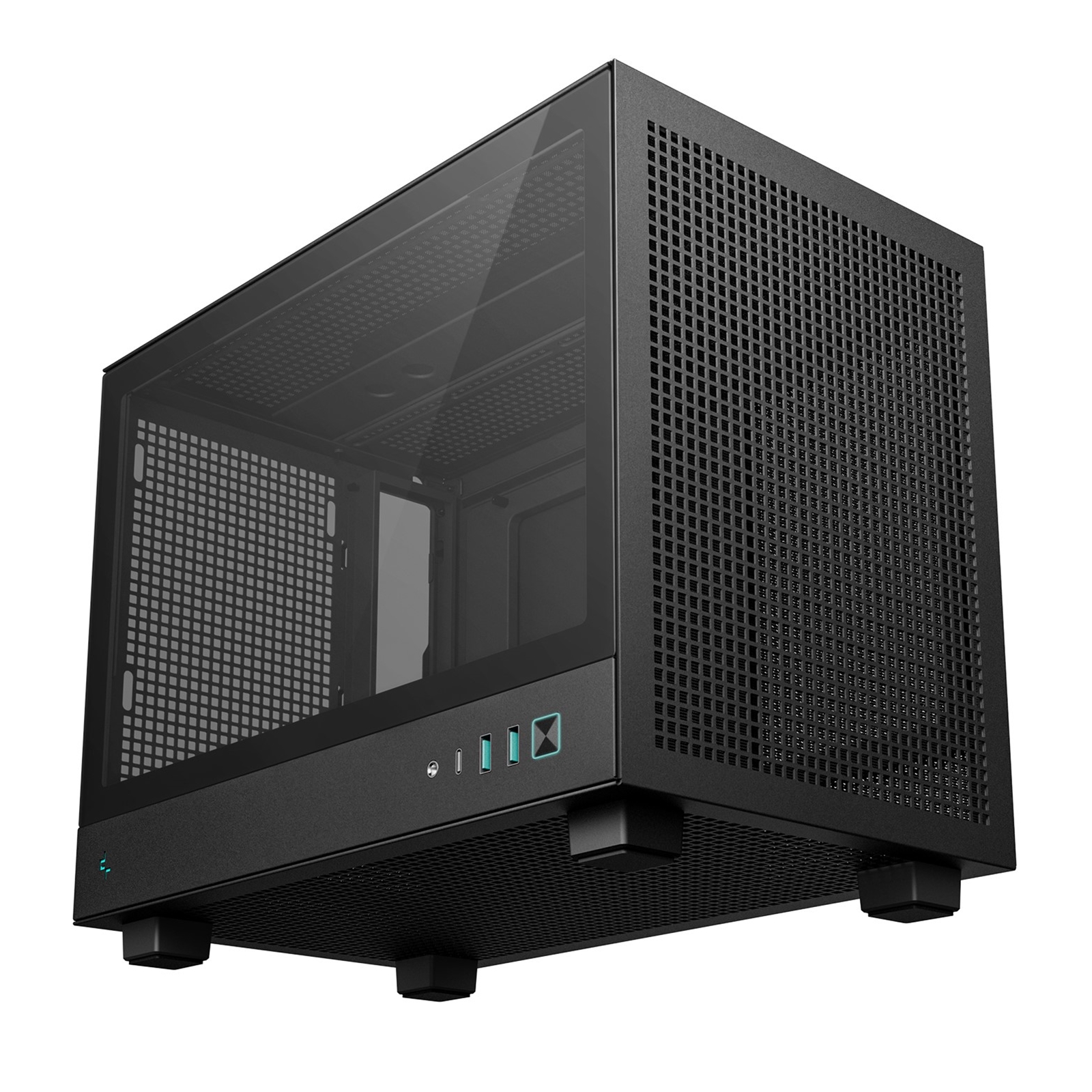

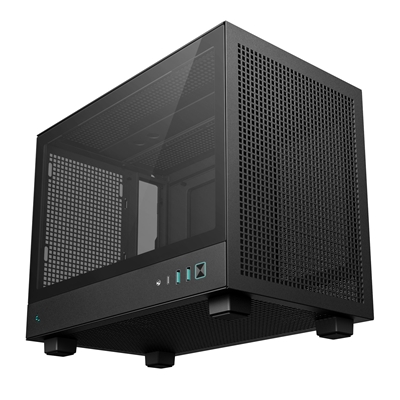

CH160
The CH160 is an ultra-portable mini-ITX case that has all the hallmarks of a high-airflow DeepCool case but in a small footprint. The internal layout provides a lot of flexibility for drives and PSU options.
HIGH AIRFLOW PANELS
Mesh panels surround the CH160 from numerous sides and create a high-airflow, small-form-factor case like no other.
FULL SIZED AIR COOLING!
Lack of air cooler support in small mini-ITX cases is a thing of the past. The CH160 can support giant air coolers up to 172mm in height!
NO ADDED GPU LATENCY!
Designed to accommodate most 3-slot dual-fan GPUs that are shorter than 305mm in length and can be directly inserted into the motherboard without the assistance of a riser cable—no added GPU latency concerns!
FLEXIBLE POWER OPTIONS
Whether you choose to go with ATX, SFX, or SFX-L power supplies, the CH160 can support any of them up to 140mm.
QUALITY OF LIFE IMPROVEMENTS
Equipped with options such as removable fan brackets, where the front fan bracket can be utilized to support both an SSD and an HDD drive; three removable dust filters for ease of cleaning; a nice and sturdy carrying handle; two USB 3.0, a Gen2 Type-C, and a hybrid audio port, the CH160 makes everything a little easier.
RECOMMENDED COMPATIBLE COMPONENTS LIST
PC building enthusiast:
B650I + ITX GPU(length limit 235mm) + AK500 Series + PQ-M Series
Overclocker:
B760I + RTX 4070/NVIDIA GeForce RTX 4090(length limit 305mm) + AK620 Series + SFX PSU
Specifications
Weight & Dimensions
336 x 200 x 283.5mm( L x W x H)
3.3Kg
Materials
ABS+SPCC+Tempered Glass
Motherboard Support
Mini-ITX
Front I/O Ports
USB3.0 x 2
Audio x 1
Gen2 Type-C x 1
3.5″ Drive Bays
1(2.5 SSD / 3.5 HDD / Front 120 FAN :Choose one of the three)
2.5″ Drive Bays
1(2.5 SSD / 3.5 HDD / Front 120 FAN :Choose one of the three)
Expansion Slots
3 Slots
Pre-Installed Fans
None
Fan Support
Front: 1 x 120 mm(2.5 SSD / 3.5 HDD / Front 120 FAN :Choose one of the three)
Top: 2 x 120mm
Rear: 1 x 120mm
Radiator Support
None
CPU Cooler Height Limit
172 mm
GPU Size Limit
Length: SFX/SFX-L: 305mm / ATX: 230mm
Height: 138mm
Width: 65mm (3 Slots)
Power Supply Type
ATX PS2(maximum length: 140mm)/ SFX / SFX-L
