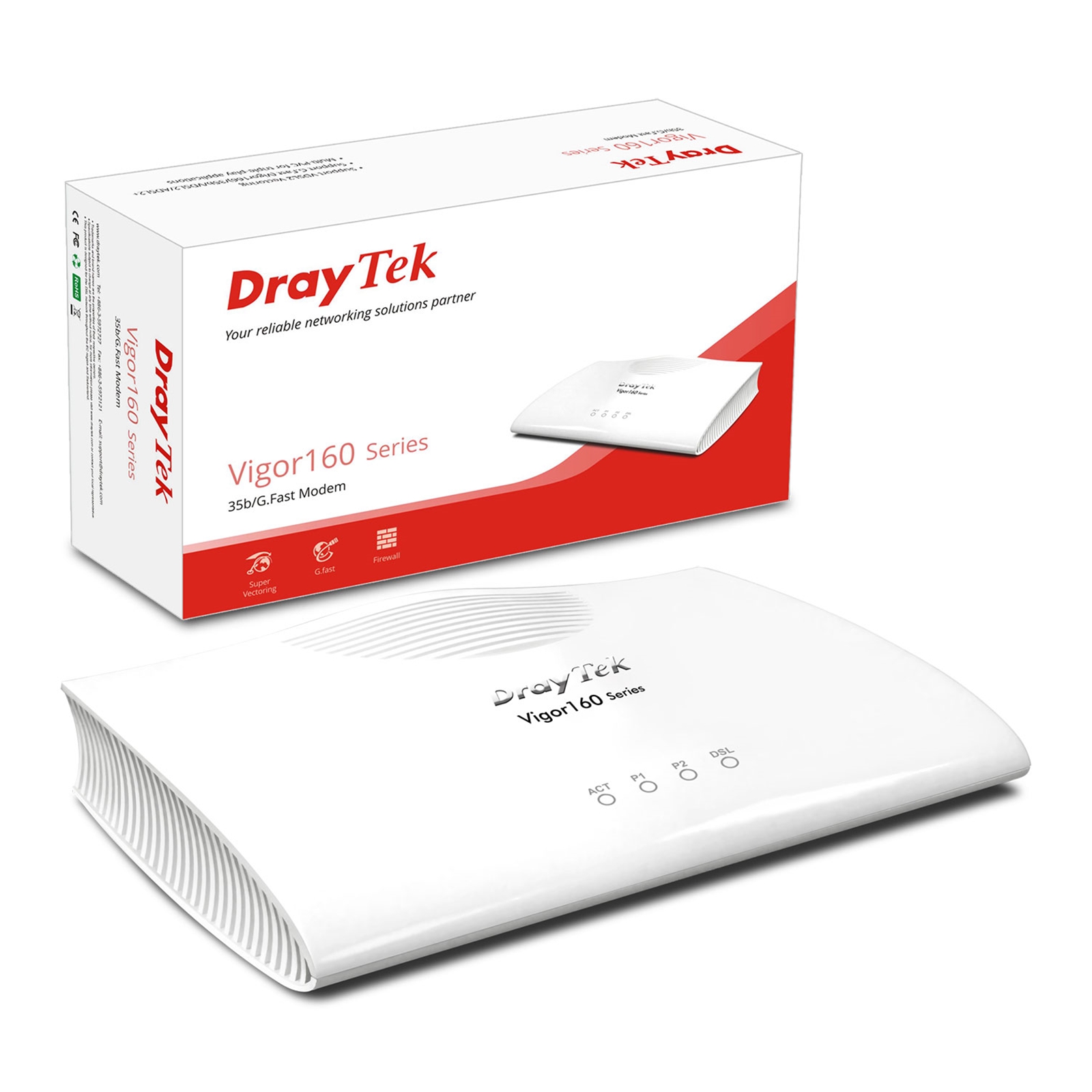

DrayTek V166-K Vigor 166 G.FAST and VDSL2 Ethernet Modem/Bridge

177.30 incl. Vat

DrayTek V166-K Vigor 166 G.FAST and VDSL2 Ethernet Modem/Bridge

8 in stock

SKU: NPDRA-V166 Category: Tag:

Description

Draytek Vigor V166-K Key Features

G.fast (Ultrafast Fibre) & VDSL2 (Superfast Fibre) to Ethernet Modem
Bridges DSL to your Router or Firewall
Pre-Configured to work with most ISPs
IPv6 and IPv4 Compatible
Compatible with IPTV and Video on Demand (YouView, Sky Q)
2 Gigabit LAN Ports
Optional VigorCare Available

G.Fast & VDSL2 35b Capable
Up to 330mbps download and 50mbps upload with G.Fast technology. Can be used with all the latest DSL standards, with Vectoring and 35b SuperVectoring.

Two Gigabit LAN Ports
Connect two devices to the Vigor 166 with 2 Gigabit (10/100/1000Mbps) LAN ports. No need to disconnect Ethernet WAN to check connectivity.

Add DSL connectivity to any Router
Ideal Partner device for DrayTek dual-WAN products or any other vendor’s Ethernet WAN firewall. Reports DSL Line Status on DrayTek Vigor routers.

No Setup Needed
Works as a modem with most ISPs, straight out of the box. Pre Configured to work with most UK ISPs. Just set the username and password on your router.

Full-Bridge Modem and More
Two operation modes for the Vigor 166 allow it to operate as a fully bridged DSL to Ethernet Modem, or as a mini Router with NAT DMZ Host.

Wall or Shelf Mountable
Can be installed securely on a wall or shelf with screw fixings to hold it in place. Mounting kit included.

Technical Specifications

Physical Interfaces
2 x Gigabit Ethernet (1000Mb/s) Ports
WAN1 : G.Fast/VDSL – RJ-11
Recessed Factory Reset button

Performance
Max G.fast Sync Rate: 1.3Gb/s (dependent on ISP & Exchange equipment)
Max VDSL2 35b Sync Rate: 300Mb/s
Max VDSL2 17a Sync Rate: 100Mb/s
Max ADSL2+ Sync Rate: 20Mb/s

NAT Performance:
– Firewall: Up to 700Mb/s (940Mb/s with Hardware Acceleration)
– NAT Sessions: 10,000

WAN Features
Pre-Configured with OpenReach network VLAN tag 101
WAN1 Service & Customer (double-tag) VLAN support
Maximum MTU 1508

G.Fast & DSL Compatibility
BT Infinity Option 1 & Option 2 Compatible
Compliant with Openreach SIN 527 & SIN 498
Auto Detection of G.Fast and VDSL line modes
Support for G.INP & Vectoring
G.Fast Standards:
– ITU-T G.9700, G.9701 G.Fast
– Profile: 106MHz
VDSL Standards:
– ITU-T G.993.1 VDSL
– ITU-T G.993.2, G.997.1 VDSL2
– Band Plan: G.998, G.997
– Annex A, Annex B, Annex C
– VDSL2 Profile: 8a, 8b, 8c, 8d, 12a, 12b, 17a, 35b
– OLR, UPBO, DPBO Supported
– US0 Supported
– Loop Diagnostic Mode
– DSL Forum WT-114
ATM Protocols:
– RFC-2684/RFC-1483 Multiple Protocol over AAL5
– RFC-2516 PPP over Ethernet
– RFC-2364 PPP over AAL5
– Support for RFC4638 for MTU up to 1500

Network Features
DSL Status Display with DrayTek Vigor routers

Management Interfaces
Web-Based User Interface (HTTP / HTTPS)
CLI ( Command Line Interface ) via Web Console, Telnet or SSH
Configuration Backup / Restore
Firmware Upgrade via Web Interface, TFTP

Router mode Firewall & NAT Features
DMZ Host
NAT Port Forwarding
NAT Port Redirection
ALG (Application Layer Gateway): SIP, RTSP, FTP, H.323
VPN Pass-Through: PPTP, L2TP, IPsec
Object-based IPv4 / IPv6 Firewall
MAC Address Filter
SPI ( Stateful Packet Inspection ) with FlowTrack Mechanism
DoS / DDoS Protection
IP Address Anti-spoofing
Bind IP to MAC Address
DHCP Server
Static Route & IP Routed Subnet
URL Keyword Filtering
Dynamic DNS
IGMP Proxy

Router mode WAN Protocols
DHCP Client
Static IP
PPPoE / PPPoA
IPv6: PPP, DHCPv6, Static IPv6, TSPC, AICCU, 6rd, 6in4 StaticTunnel
Multi-PVC/VLAN virtual WAN interfaces for Management / IPTVservices

Router mode Management Features
Syslog
SNMP v2 & v3
VigorACS Management
TR-069
TR-104
NTP Client
Built-in Diagnostic Function (ping, traceroute)

Operating Requirements
Wall Mountable
Operating Temperature : 0 °C ~ 45 °C
Storage Temperature : -25 °C ~ 70 °C
Humidity 10% ~ 90% (non-condensing)
Power Consumption: 6.6 Watt Max.
Dimensions:
– Length: 181mm
– Width: 125mm
– Height: 40mm
Weight: 280g
Operating Power: DC 12V 1A (via external PSU, supplied)
Power Requirements : 220-240VAC

Box Contents
Vigor 166 Modem
Quick Start Guide
RJ-11 DSL Cable
Cat-5e RJ-45 Cable
Screws & wall plugs for wall mounting
DC 12V PSU
