Description

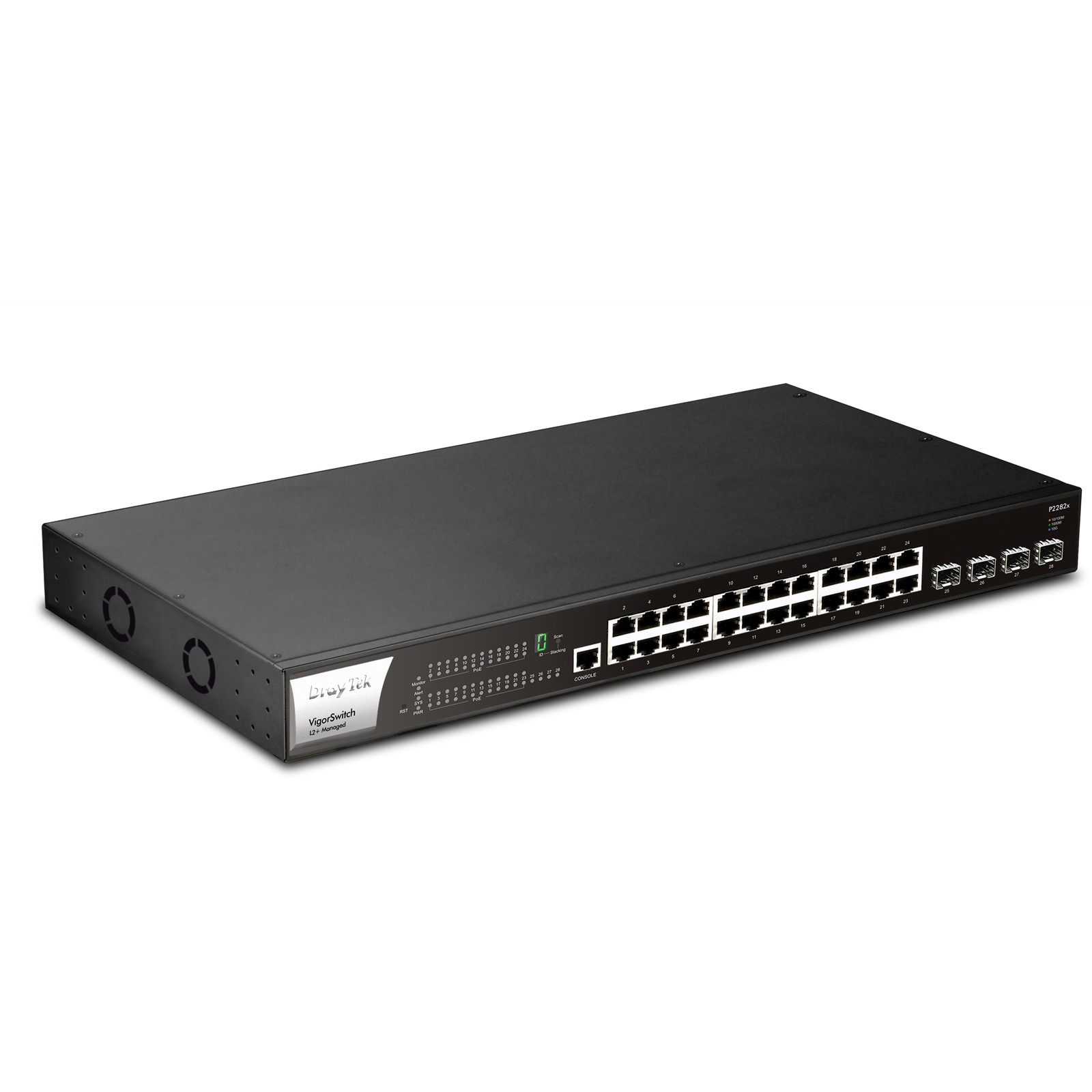

DrayTek VigorSwitch P2282x is a Layer 2+ Managed 10 Gbps switch. It has 24x Gigabit Ethernet LAN ports and 4x SFP+ 10Gbps Fiber links for uplink/downlink. Besides the fixed AC power input, VigorSwitch P2282x also provide DC power input as other power source, which helps to ensure uninterrupted operation and protect connected devices in the event of AC power supply failure.

VigorSwitch P2282x has 24x PoE+ ports with 400W power budget, making it be suitable for more IoT applications integration, including LED lighting, POS (point of sale) computer, motion sensors, IP Cam,…etc. With a 12/54V DC backup power supply, VigorSwitch P2282x can protect critical data from the connected PD devices and maintain uninterrupted network connectivity.

Supporting advanced Layer 3 features, including DHCP Server and VLAN Routing. This enhances network efficiency and ensures uninterrupted LAN connectivity, even when the gateway is offline, which makes it an excellent solution for a network with increasing traffic demands.

PoE (Power over Ethernet)
Deliver power and data over one ethernet cable, turn on/off the PoE device periodically with PoE Schedule.

Ping Device Check
Enable Ping check to selected devices to keep monitoring on their status. If ping timeout, power cycle (if PoE enabled) the port and/or send out mail alert.

Wire-Speed VLAN Routing
Improve overall network performance by using VigorSwitch P2282x to route the inter-VLAN traffic directly and offload the router.

Auto Surveillance & Voice VLAN
Recognize traffic from IP cameras and IP phones automatically and add CoS tag for QoS prioritization.

IP Conflict Prevention
Improve network stability by avoiding IP conflicts caused by a misconfigured or malicious host.

QoS (Quality of Service)
Improve the performance of critical traffic by prioritizing the traffic with CoS, DSCP, and IP Precedence tag.

Improving LAN Network Sustainability and Efficiency, with or without a Router
In a large LAN network, much traffic doesn’t go to Internet, but to the servers in LAN. For example, IP cameras store videos to NVR, IP phones register to PBX, clients access to file server, etc.

L2+ switch with DHCP server and VLAN routing functionalities, as the device receiving traffic before the router, is ideal to share the loading of your router and to help your LAN network to work continuously even when the router is offline.

As a DHCP server, VigorSwitch assigns dynamic IP addresses for up to 8 VLANs. With VLAN routing, VigorSwitch supports up to 512 routes.
