Description

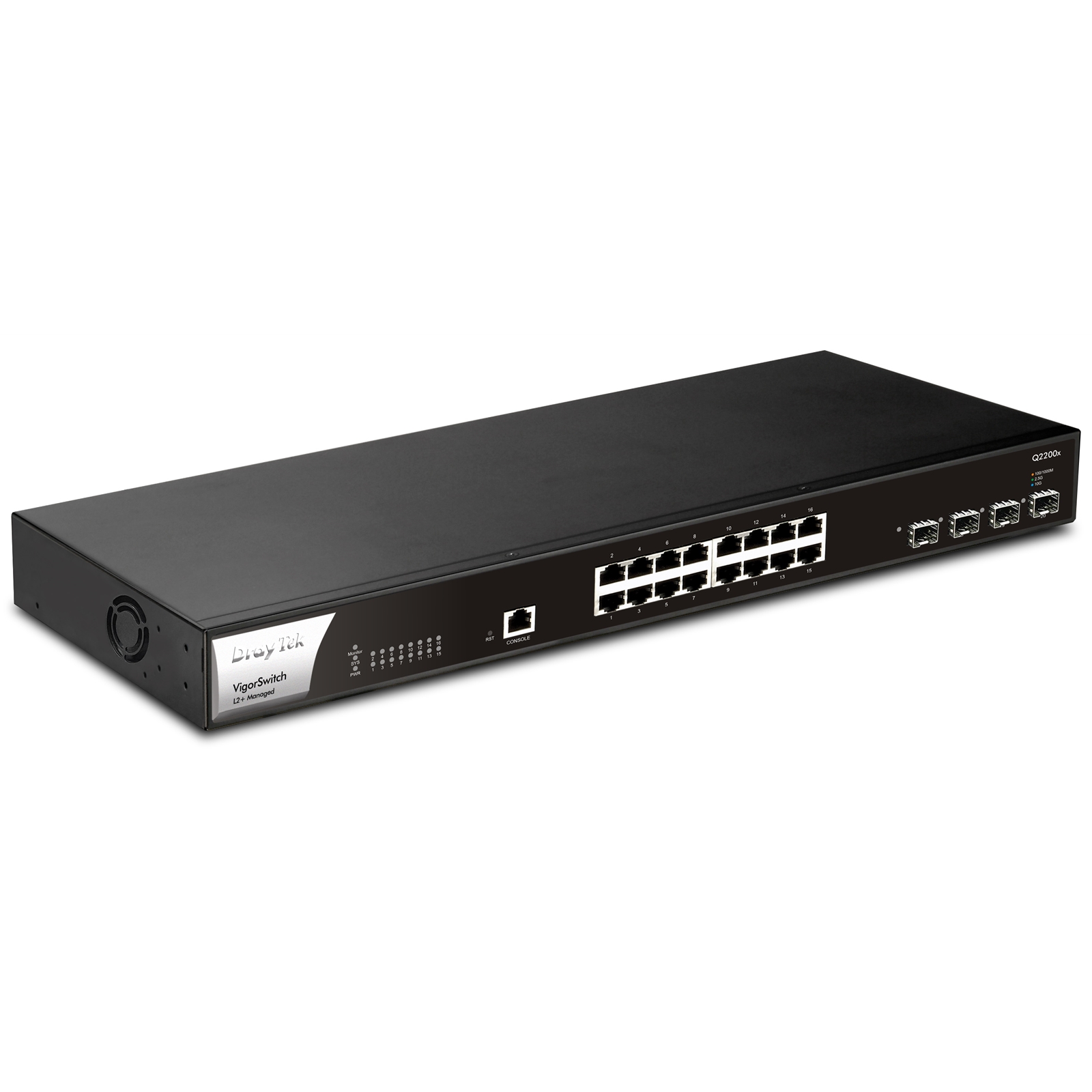

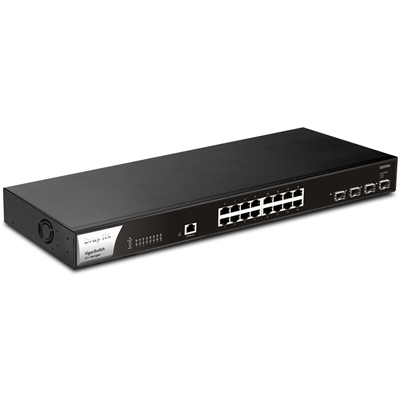

VigorSwitch Q2200x is a 2.5 Gigabit L2+ Managed switch with 16 2.5GbE ports, and 4 additional independent SFP+ 10Gbps interfaces. Ideal for usage with devices where there are throughput demands beyond 1Gbps such as high speed access points, high bandwidth video or network attached storage.
Supported layer 3 features such as a DHCP Server and, VLAN Routing help with network stability and efficiency. The VigorSwitch Q2200x can be managed in a standalone mode or provisioned and monitored through the VigorACS management platform, or, a DrayTek Vigor router’s Central Switch Management. Easily provision the VLAN configuration through the router and clone switch configurations. Drastically reduce the setup time required for a complex network, with VLANs spanning multiple switches.
Future Proof multi-Gigabit Ethernet interfaces
16 2.5GbE Ethernet ports improve your core network speed while using existing CAT 5E or later cable infrastructure. Ideal for Wi-Fi 6 access point connections such as the VigorAP 1060C.
Advanced Layer 2+ Routing Features
Expand your network with support for Layer 3 features. Static Routes, VLAN Routing and Multi-subnet DHCP server connect separate networks through the VigorSwitch.
High Speed 10 Gigabit SFP+ Uplinks
4 SFP+ ports allow your network to utilise 10Gbps ports to link Switches, Servers and Networked Storage with more bandwidth. This helps you reduce the risk of bottlenecks occurring in your network.
Manage Centrally or Stand-Alone
Configure and monitor the switch through the VigorACS cloud management platform, DrayTek’s Central Switch Management for Vigor routers, or directly via the device’s Web Interface.
Great Security Features
Protect your network against unauthorised access and network problems with 802.1X port authentication, DHCP Snooping, IP Source Guard and Access Control Lists. Check the features sections for more information.
ONVIF IP Camera Surveillance Management
Manage IP Cameras easily with detection and management of ONVIF cameras. Use auto-generated IP Camera topology and Camera Snapshots to detect & troubleshoot problems.
