Description

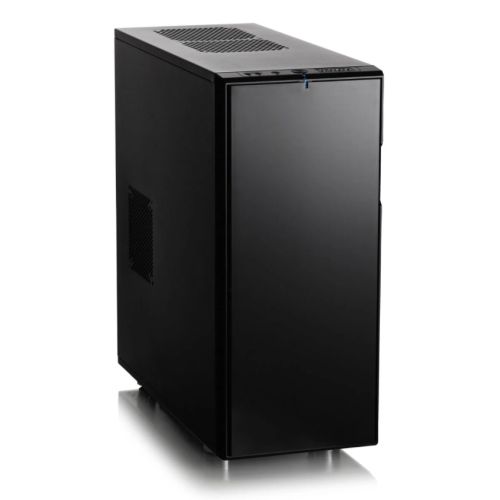

Bigger and better: building on the success of the awarding-winning Define XL
- High density noise-reducing material for an optimal silent case **To achieve a high level of noise reduction, material with mass should be incorporated which is what we strive to achieve with the dense bitumen used on the side panels
- Patented ModuVent™ design allowing the user to choose between optimal silence or maximum airflow
- With a new internal layout and additional PCI expansion slots, it can harbor the most powerful enthusiast systems.
- Both HDD cages can be removed or repositioned – Top HDD cage can be removed or repositioned for increased airflow whereas bottom HDD cage can be repositioned further into the case to allow for front radiator mount.
- The case can fit water cooling equipment in the front, top, rear and bottom without major modifications.
- Three-speed fan controller is strategically integrated in the front panel and supports up to 3 fans
- Three Silent Series R2 fans are included, featuring hydraulic bearings which contribute to a longer life expectancy – Silent Series R2 retail fans now come standard in all cases
- New tool-less front fan holder makes switching front fans a breeze
Room for water cooling – everywhere
This updated chassis carries on the family tradition of providing superb cooling and ventilation capabilities with exceptional expandability, in a sleek and stylish Scandinavian form.
The Define XL R2, which includes our innovative ModuVent™ feature, has an updated internal layout that offers even greater modularity and flexibility, including capacity for 9 PCI cards and two HDD cages that can be repositioned to provide even more space for water cooling radiators.
Description
Specification
- Form Factor: XL-ATX
- #Hide#Small Form Factor: No
- Power Supply Wattage: No PSU
- Motherboard Support: “XL-ATX, E-ATX, ATX, Micro ATX, Mini ITX”
- #Hide#Window(s): No
- Connectors / Controls: 2 x USB 3.0
2 x USB 2.0
Audio in/out
Power button with LED (blue)
Reset button
Fan controller (behind door) - #Hide#5.25 Bay: Yes (5.25 Bay)
- Drive Bays: 8 x 3.5″” HDD / SSD trays
4 x 5.25″” bays - Expansion Slots: 9 Expansion slots
- Cooling System: Included
Front: 1 x Hydraulic 140 mm Silent Series R2 fan
Rear: 1 x Hydraulic 140 mm Silent Series R2 fan
Bottom: 1 x Hydraulic 140 mm Silent Series R2 fanFan Mounts
Front: 2 x 120 / 140 mm
Top: 2 x 120 / 140 mm
Rear: 1 x 120 / 140 mm
Bottom: 1 x 120 / 140 mm
Side: 1 x 120 / 140 mm - .:
Water Cooling options:
Front: 240 mm when HDD cages are removed or repositioned
Top: 240 mm or 280 mm when using slim radiators
Rear: 120 mm or 140 mm
Bottom: 120 mm - Colour: Black
- Material: Left side panel: Industrial sound-dampened steel
Right side panel: Industrial sound-dampened steel - Compatibility: GFX Card:
330 mm with the top HDD cage installed
480 mm with the top cage removedMax CPU Cooler:
190 mm when using the bottom fan location
345 mm when not using this fan locationPSU:
170 mm (when no fan is installed in the side panel) - Weight/Dimensions: 16.4 kg
(WxHxD) 232 x 559 x 560 mm - Additional Features: See Overview / Video
- Accessories: Accessory box
User manual - Package Weight: 18.3500 kg
- Warranty: 2 Years
