Description

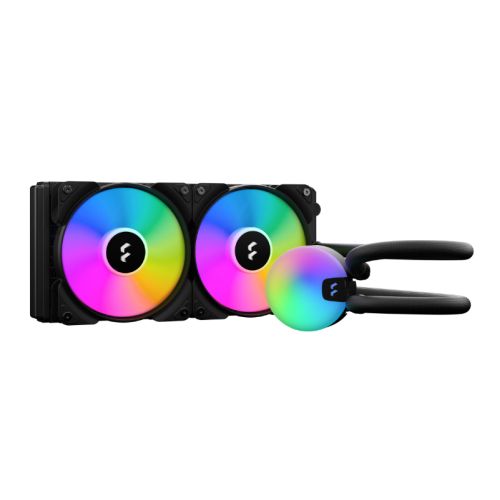

Customise your CPU water-cooling from subtle to stunning with Lumen’s six addressable LEDs that you can command via motherboard or controller. Compatible with most common Intel/AMD sockets and RGB certified by industry standards, the Lumen offers high-end cooling performance and premium ARGB effects for new and seasoned builders alike.
- Duality design provides both a stealthy and illuminated look, controlled from your motherboard RGB UI
- Six ARGB LEDs are yours to command via your motherboard or controller
- The removable top can be turned at 90-degree intervals, making the logotype horizontal independent of the mounting orientation
- Pre-applied thermal paste ensures an easy installation
- Supports the most common sockets for both Intel and AMD
- Aspect fans for low turbulence and chaining support
- Articulating elbow fittings make tubes easier to route and reduces tension on the cold plate housing
- Current certifications include Asus AURA, Gigabyte Fusion, MSI Mystic Light, Razer Chroma and ASRock Polychrome support
- Low-permeability rubber tubes with braided nylon sleeves
The right way up
- The removable top can be turned at 90-degree intervals, making the logotype horizontal independent of the mounting orientation
- Low-permeability rubber tubes with braided nylon sleeves
From subtle to stunning
- Duality design provides both a stealthy and illuminated look, controlled from your motherboard RGB UI
- Six ARGB LEDs are yours to command via your motherboard or controller
Color-coordinate your cooling
- Compatible with ASUS AURA, Gigabyte Fusion, MSI Mystic Light, ASRock Polychrome and Razer Chroma
Forget the thermal paste
- Thermal paste is pre-applied to ensure a proper and pain-free installation
- Articulating elbow fittings make tubes easier to route and reduces tension on the cold plate housing
Common denominators
- Supports the most common sockets for both Intel and AMD
Description
Specification
- Type: CPU Liquid Cooler
- AMD/Intel: Combo
- Radiator Size: 240 mm
- Compatibility: “Intel:
1851, 1700, 1150, 1151, 1155, 1156, 1200, 1366, 2011, 2011-3, 2066AMD:
AM5, AM4, FM2+, FM2, FM1, AM3+, AM3, AM2+, AM2″ - Fan Controller: PWM
- Fan Bearing: Rifle bearing
- Rotation Speed: 500 – 2000 RPM
- Installation: Radiator fan screw threads: 6-32
- #Hide#LED Lighting: Yes
- Colour: Black
- LED Lighting: 6 addressable LEDs on pump head
2 x Aspect 12 RGB PWM Fans - Material: Cold plate: Copper
Radiator housing: Aluminium
Radiator fin: Aluminium
Tube: Low-permeability rubber with braided nylon sleeve - Dimensions: Radiator: 272 x 120 x 27 mm
Block height: 43 mm
Block measurements (with fittings): 79 x 67 mm
Block diameter (main block body): 67 mm
Tube length: 400 mm - Fan Dimensions: 120 x 120 x 25 mm
- Air Flow: 13-56 CFM
- Noise level: Fans: <10–33.2 dBA
Pump (full speed): 22 dBA - Power: Input Voltage: 12V DC
Input current (without fans): 0.34 A
Pump input voltage: 12V DC
Pump input current (without fans): 0.34 A - Additional Features: See Overview / Video
- MTBF: “Fan: 90,000 hours
Pump: 50,000 hours” - Package Contents: CPU Cooler Assembly
2 x Aspect 12 RGB fans
User manual
Intel mounting kit
AMD mounting kit
5V ARGB cable - Package Type: Retail
- Package Weight: 1.8100 kg
- Warranty: 5 Years
- #Hide#115x Sockets: Supports Sockets 115x
- #Hide#2066 Socket: Supports Socket 2066
- #Hide#2011(-3) Socket: Supports Socket 2011(-3)
- #Hide#1700 Socket: Supports Socket 1700
- #Hide#1200 Socket: Supports Socket 1200
- #Hide#1851 Socket: Supports Socket 1851
- #Hide#1366 Socket: Supports Socket 1366
- #Hide# AM5 Socket: Supports Socket AM5
- #Hide#AM4 Socket: Supports Socket AM4
- #Hide#AM3(+) Socket: Supports Socket AM3
