Description

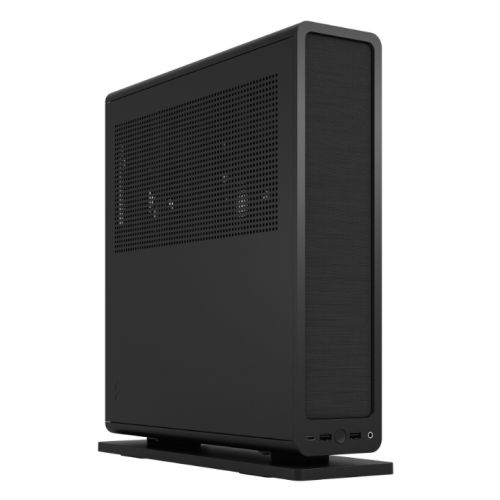

Carefully designed to occupy as little desktop space as possible, the discreet Ridge blends in as easily in the den as it does in the living room.
This flexible SFF case gives you a lot of creative freedom when building your system. For example, you can use a 280mm radiator with no GPU installed or a 120mm radiator if the GPU is 175mm long or less, a 57mm thick GPU with the included 2x 140 mm fans and even a 70 mm CPU cooler. All panels are ventilated, enabling the Ridge to run much cooler than other cases its size – and the front fabric can be swapped out fast to make the case truly your own.
- Compact SFF console-type case
- All panels come off for maximum accessibility
- 6 mm anodized and CNCd aluminum front
- PCIe 4.0 riser card included
- Comes with 2x 140 mm PWM Aspect fans installed
- Can be placed in both horizontal and vertical orientation
- Excellent GPU Cooling
- Front I/O with 2x USB 3.0; 1x USB-C and Combo jack
- Ventilated side, top and bottom panels
Inch-perfect efficiency
- Meticulously engineered to maximize its capability while minimizing its footprint
- Small form factor case with a volume of 12.6 liters
- Supports GPUs up to a length of 335 mm
Horizontal or vertical
- Multiple feet configurations allow for both horizontal and vertical orientation
- Elevate any gaming desk, workspace or entertainment area
Unrivalled access
- Remove any panel to gain easy access to every side of your build
All-around ventilation
- Ventilated on all sides to maximize its cooling potential
- Comes with 2x 140 mm PWM Aspect fans pre-installed
- Supports 2x 120/140 mm and 3x 80 mm fans
Well-balanced design
- Stylish fabric front with CNC machined aluminum frame
- Features a Power LED bar in front
Type-C interface
- Front I/O comes with 2x USB 3.0, 1x USB type-C and a combined mic and headphone jack
Smart configurations
- Comes with our own PCI-e 4.0 riser card pre-installed
- Four 2.5” drive mounts included
Description
Specification
- Form Factor: Mini ITX
- #Hide#Small Form Factor: Yes (SFF)
- Power Supply Wattage: No PSU
- Motherboard Support: Mini ITX
- #Hide#Window(s): No
- Connectors / Controls: 1 x USB 3.1 Gen 2 Type-C
2 x USB 3.0
1 x Combo jack – Audio/Microphone
Power button - Drive Bays: “Dedicated 2.5″” drive mounts: 4x included, 4x positions total”
- Expansion Slots: 3-slot
- Cooling System: Included
Side: 2 x 140 mm PWM Aspect fansFan Mounts
Side: 2 x 120/140 mm
Top: 3 x 80 mm - .:
Radiator options:
Side:
120 mm when <175mm long GPUs are installed
280 mm with no GPU installed - Colour: Black
- Material: 6 mm anodized and CNCd aluminium front
Left side panel: steel
Right side panel: steel - Compatibility: GPU max length:
325 mm with SSD installed
335 mm without SSD installedGPU max height:
125 mm with top fan(s) installed
141 mm without top fan(s)GPU max thickness:
57 mm with 2x 140 mm fans installed
82 mm without side fansCPU cooler max height:
70 mmPSU max length:
SFX & SFX-L supported - Weight/Dimensions: 4.3 kg
Vertical (LxWxH): 374 x 395.4 x 110 mm
Horizontal (LxWxH): 360 x 115 x 375 mm
w/o feet/protrusions/screws: 355 x 375 x 94.6 mm - Additional Features: See Overview
- Accessories: Accessory box
Manual - Package Weight: 5.8000 kg
- Warranty: 2 Years
