Description

KEY FEATURES

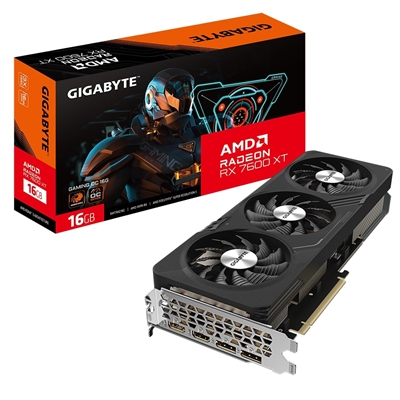

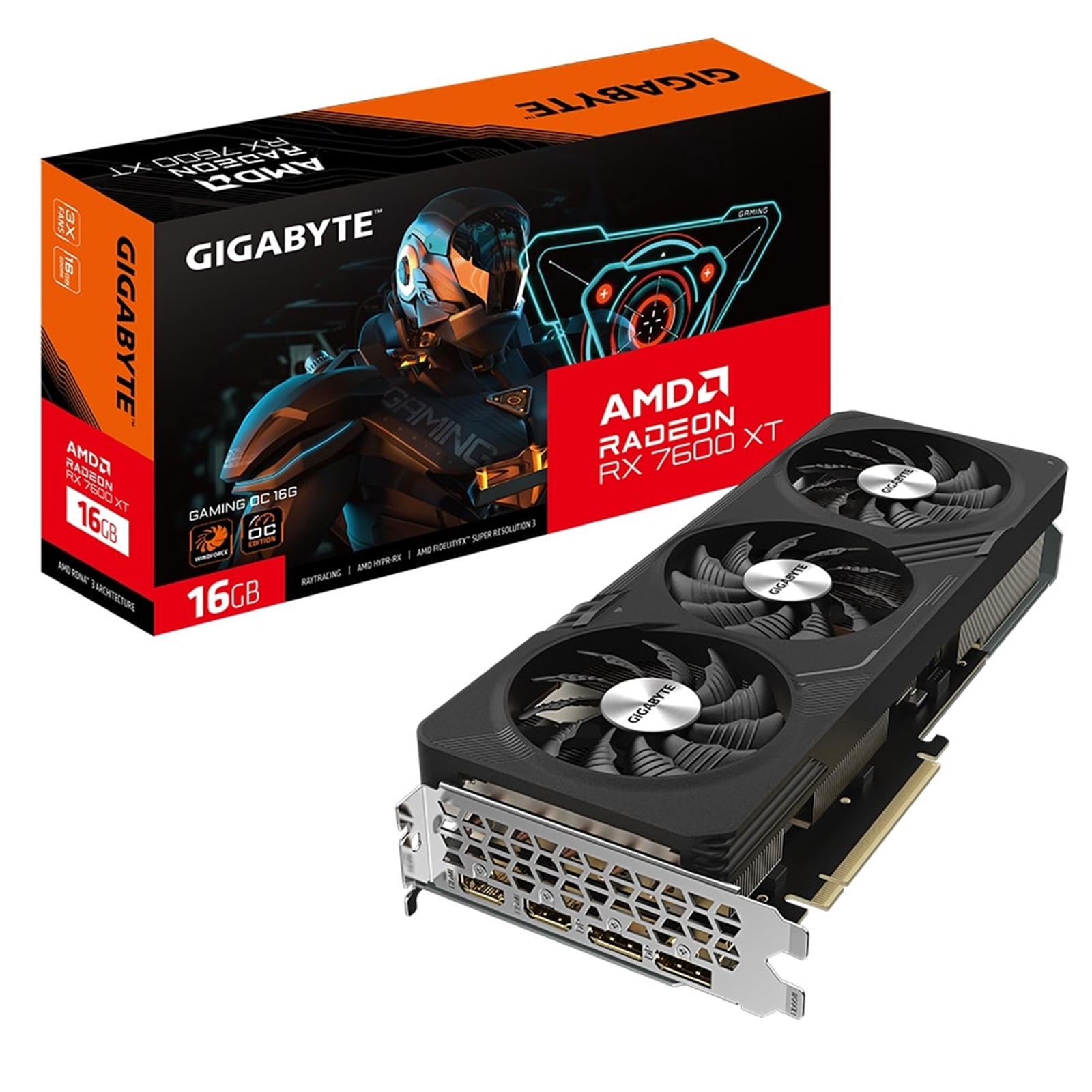

Powered by Radeon RX 7600 XT
Integrated with 16GB GDDR6 128-bit memory interface
WINDFORCE cooling system
RGB Fusion
Protection metal back plate

CORE CLOCK
TBD

WINDFORCE COOLING SYSTEM
The WINDFORCE cooling system features three 80mm unique blade fans, alternate spinning, 5 composite copper heat pipes directly touch the GPU, 3D active fan and Screen cooling, which together provide high efficiency heat dissipation.

ALTERNATE SPINNING
Reduce the turbulence of adjacent fans and increase airflow pressure.

3D ACTIVE FAN
The 3D Active Fan provides semi-passive cooling, and the fans will remain off when the GPU is in a low load or low power game.

UNIQUE BLADE FAN
The airflow is spilt by the triangular fan edge, and guided smoothly through the 3D stripe curve on the fan surface.

GRAPHENE NANO LUBRICANT
Graphene nano lubricant extend the life of sleeve bearing fan by 2.1 times, close to the life of double ball bearing, and is quieter.

HEAT PIPES DIRECT TOUCH
The shape of the copper heat pipe maximizes the direct contact area with the GPU. The heat pipe also covers the VRAM through a metal plate contact to ensure proper cooling.

SCREEN COOLING
Extended heatsink allows air to pass through, providing better heat dissipation.

ULTRA DURABLE
Ultra Durable certified highest-grade metal chokes, lower ESR solid capacitors, 2oz copper PCB, and lower RDS(on) MOSFETs, plus over-temperature design to deliver superior performance and longer system life.

FRIENDLY PCB DESIGN
Fully automated production process ensures top quality of the circuit boards and eliminates sharp protrusions of the solder connectors seen on the conventional PCB surface. This friendly design prevents your hands from getting cut or inadvertently damaging components when making your build.

Power Through The Game
GIGABYTE offers the best power supply solutions for your graphics cards. You can choose either the AORUS series or the UD series to power your graphics card.

Specifications

Graphics Processing
Radeon RX 7600 XT

Core Clock
TBD

Stream Processors
2048

Memory Clock
18 Gbps

Memory Size
16 GB

Memory Type
GDDR6

Memory Bus
128 bit

Card Bus
PCI-E 4.0

Digital max resolution
7680×4320

Multi-view
4

Card size
L=281.4 W=116.6 H=52.6 mm

PCB Form
ATX

DirectX
12 Ultimate

OpenGL
4.6

Recommended PSU
600W

Power Connectors
8 Pin*2

Output
DisplayPort 2.1 x 2
HDMI 2.1a x 2

Accessories
Quick guide
